Semi Auto Contact IC Card Module Cutter For Cutting The Single IC Chips
Semi Auto Contact IC Card Module Cutter For Cutting The Single IC Chips
Semi Auto Contact IC Card Module Cutter For Cutting The Single IC Chips
Semi Auto Contact IC Card Module Cutter For Cutting The Single IC Chips
Semi Auto Contact IC Card Module Cutter For Cutting The Single IC Chips
Semi Auto Contact IC Card Module Cutter For Cutting The Single IC Chips
Semi Auto Contact IC Card Module Cutter For Cutting The Single IC Chips
Semi Auto Contact IC Card Module Cutter For Cutting The Single IC Chips
Specifications
Brand Name :
YL
Model Number :
YMC-1
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1 set per 15-20 days
Delivery Time :
20 days
Packaging Details :
1 plywood case
Dimension: :
Approximately L600×W300×H300mm
Weight :
Around 30 KG
Power supply :
AC220V 50/60HZ4
Material model :
M2/M3 standard chip tape
Air Consumption :
10 L/min.
Power :
0.4kw
Description

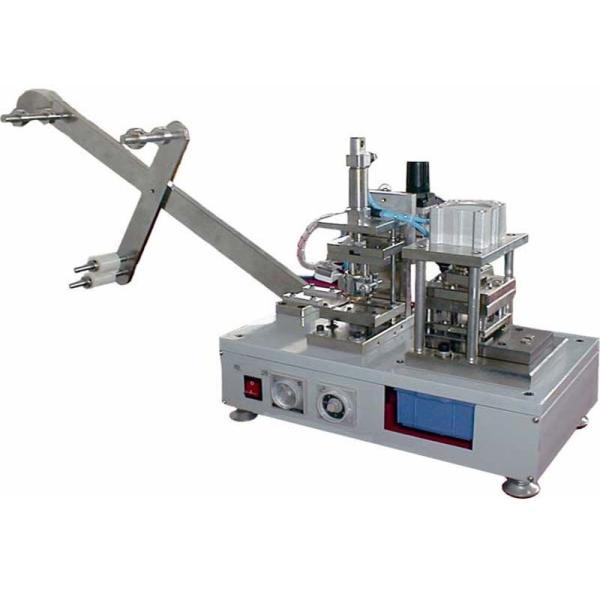

Semi-Automatic Contact IC Card Module Cutter YMC-1 Designed For Cutting The Single IC Chips

IC chip cutter, IC chip tape puncher, IC module tape cutter, IC card machine, smart card machine

1. Introduction of Semi-Automatic Contact IC Card Module Cutter YMC-1 Designed For Cutting The Single IC Chips

The machine is designed for cutting the single IC chips from the IC Module tape after the hot melt glue is pressed to the IC module bottom side.

Basic configuration

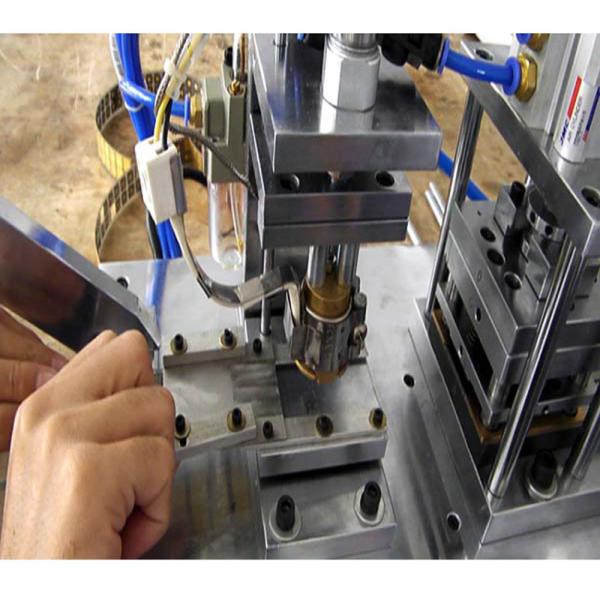

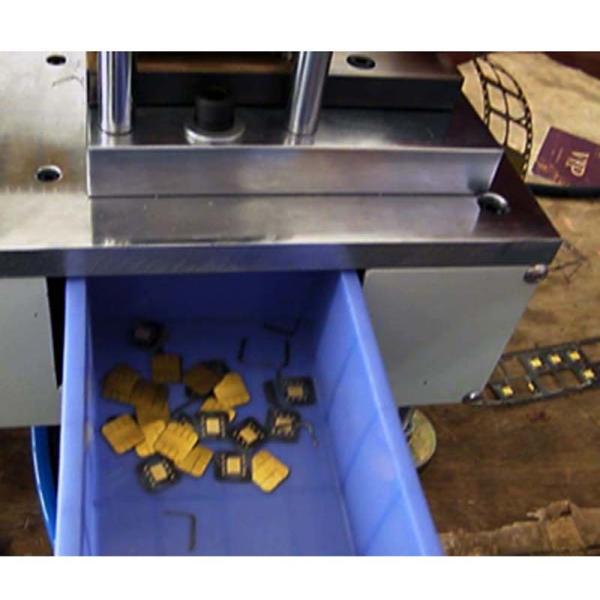

Material releasing (glue tape wheel and chip reel wheel) →hot pressing station (stick the glue tape onto chip bottom by hot lamination)→chip cutting station( cut the chip tape into single pieces)→chip collection unit

Semi Auto Contact IC Card Module Cutter For Cutting The Single IC Chips

  1. ) Speed: 4000-6000 units per hour
  2. ) Material model: M2/M3 standard chip tape
  3. ) Compressed air: 6 kg/cm2
  4. ) Air Consumption: 10 L/min.
  5. ) Power:0.4KW
  6. ) Power supply: AC220V 50/60HZ4
  7. ) Weight: 30 KG
  8. ) Dimension: L600×W300×H300mm

2. Features of Semi-Automatic Contact IC Card Module Cutter YMC-1 Designed For Cutting The Single IC Chips

  • It is controlled by relay unit with easy maintenance.
  • All the pneumatic parts are made by SMC to ensure quality operation.

Semi Auto Contact IC Card Module Cutter For Cutting The Single IC Chips

3. Technical Parameter of Semi-Automatic Contact IC Card Module Cutter YMC-1 Designed For Cutting The Single IC Chips

Power supply AC220V 50/60HZ4
Material model 1M2/M3 standard chip tape
Dimension L600×W300×H300mm
Compressed air 6 kg/cm2
weight Approx 30Kg
Air Consumption 10 L/min.
Speed 4000-6000 units per hour
Operator number: 1 person

Semi Auto Contact IC Card Module Cutter For Cutting The Single IC Chips

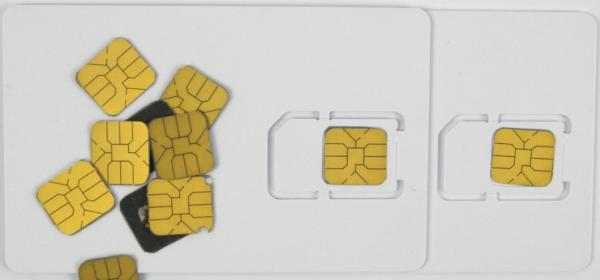

4. Application of Semi-Automatic Contact IC Card Module Cutter YMC-1 Designed For Cutting The Single IC Chips

Semi Auto Contact IC Card Module Cutter For Cutting The Single IC Chips

Semi Auto Contact IC Card Module Cutter For Cutting The Single IC Chips
