Contactless Card Chip Bonding Machine RFID Card INLAY Sheet Chip Antenna Bonder YCB-18

1. Introduction of Contactless Card Chip Bonding Machine RFID Card INLAY Sheet Chip Antenna Bonder YCB-18

Contactless Card Chip Bonding Machine/RFID Card INLAY Sheet Chip Antenna Bonder/Automatic RFID Card Chip Welding Machine YCB-18

The machine is designed for bonding or welding the contactless card antennas and chips together in an automatic and speedy way.

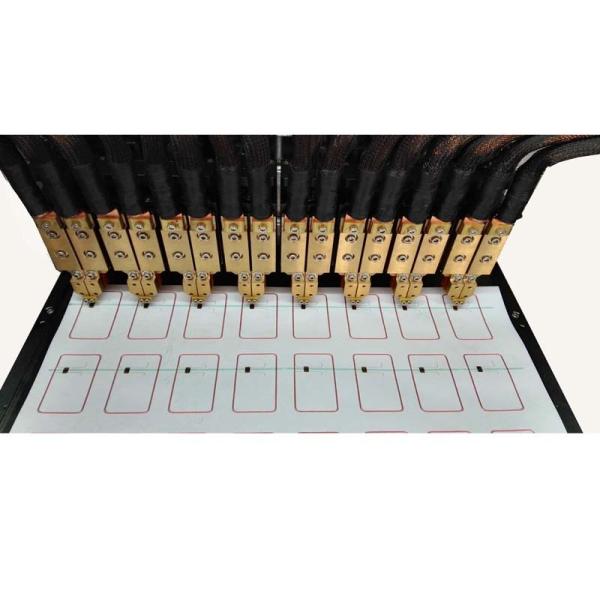

Bonding or welding the antenna leads onto the chip edges automatically.

Machine model needed: Contactless Card Chip Bonding Machine YCB-18 (8 bonding heads for layout 3×8,4×8, 6×8 or 7×8, if the layout is 5*5, we will use YCB-15 with 5 bonding head )

Machine quantity needed: 1 set

Machine Speed: 7000+ chips per hour

2. Features of Contactless Card Chip Bonding Machine RFID Card INLAY Sheet Chip Antenna Bonder YCB-18

• In order to ensure its reliability, the key components such as PLC, touch screen and servo system from Mitsubishi are applied inside.
• The lead screw by German REXROTH is applied to ensure precise motion precision.
• The bonding unit is dual-pulse high-frequency inverting welding system to ensure fast and quality welding, and the instant current output or instant voltage output can be freely selected.
• The bonding is fast in speed and good in quality.

3. Technical Parameter of Contactless Card Chip Bonding Machine RFID Card INLAY Sheet Chip Antenna Bonder YCB-18

1. ) Speed: 7000-8000 units per hour
2. ) Bonding head number:8 for 3*8 or 4*8 layout.
3. ) Motion precision: 0.0125mm
4. ) Mechanical adjustment: 0.01mm
5. ) Compressed air: 6 kg/cm²
6. ) Air Consumption: 80 L/min.
7. ) Power:18KW
8. ) Power supply: AC220V 50/60HZ 100A
9. ) Weight: 1000 KG
10. ) Dimension: L1300×W900×H1700mm

4. Application of Contactless Card Chip Bonding Machine RFID Card INLAY Sheet Chip Antenna Bonder YCB-18

As an indispensable machine of RFID card Inlay or Prelam sheet production line, Contactless Card Chip Bonding Machine YCB-18 is also known as named as RFID Card INLAY Sheet Chip Antenna Bonding or Welding Machine, Automatic Chip Wire Bonding Machine or Automatic RFID Card Chip Welder YCB-18.
