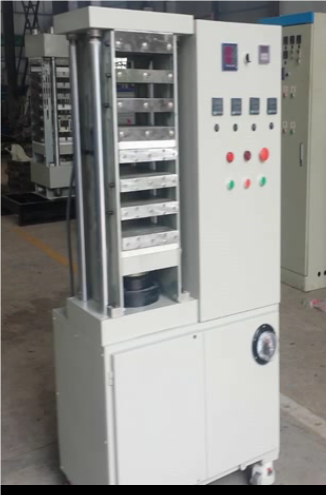

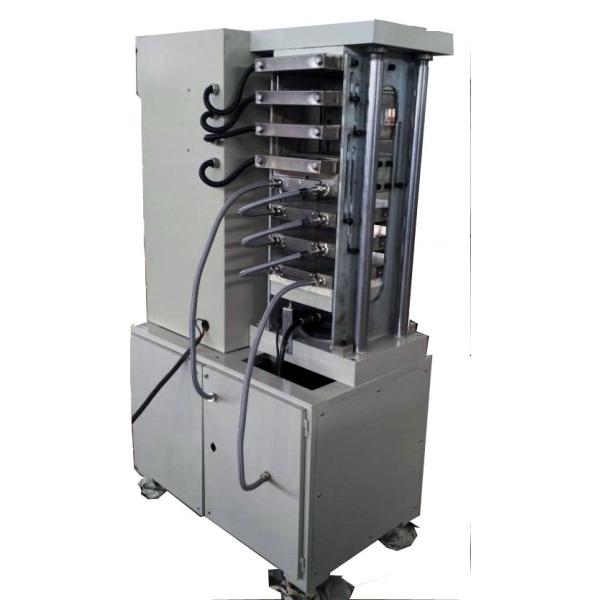

Manual Loading RFID Card Laminator A4 2x5 PVC Sheet Pressing Machine PLC Control YLL-16A4S

1. Introduction of Manual Loading RFID Card Laminator A4 2x5 PVC Sheet Pressing Machine PLC Control YLL-16A4S

Plastic Card Laminator YLL-16A4S is designed to laminate the bonded PVC sheet assembly into the thicker PVC sheets to be punched. It has one tower with 3 hot openings and 3 cooling openings. It is controlled by PLC which can ensure reliable and precise lamination effect. Plastic Card Laminator YLL-16A4S is also named as Smart Card Pressing Machine or Card Laminating Machine YLL-16A4S.

2. Features of Manual Loading RFID Card Laminator A4 2x5 PVC Sheet Pressing Machine PLC Control YLL-16A4S

• It is controlled by PLC to ensure reliable performance. It can laminate various cards including RFID cards Inlay.
• It has the best performance/price ratio, which is very suitable for middle or small card factory.
• The big size cooling parallel loop is specially designed to ensure better cooling effect.

3. Technical Parameter of Manual Loading RFID Card Laminator A4 2x5 PVC Sheet Pressing Machine PLC Control YLL-16A4S

1). PVC sheet layout: 2×5 for 16A4S model

2). Laminating template size: 230×315mm suitable for A4 PVC sheet lamination

3). Daylight number/distance: 1 tower, 3 hot daylights, 3 cool daylights, 40mm

4). Pressure control precision: +/-1Mpa

5). Work pressure: 0-16Mpa (adjustable).

6). Temperature control precision: +/- 2℃

7). Heating temperature: ≤200 ℃

8). Power: 7.5 KW (Maximum)

9). Power supply: AC380V 50/60HZ 3 phase 4 wires

10). Dimension: around L800×W550×H1200mm

11). Gross weight: Around 500 kg.

12). Speed: 1000 cards per hour.

13). Packaging information:1 strong plywood carton, GW 550KG, L1000XW700XH1400mm

Feature Description:

It is controlled by PLC system to ensure more precise control in each lamination stage and more reliable performance.

This model is specially designed for the quality lamination of various cards including RFID chip cards.

The big size cooling parallel loop is specially designed to ensure better cooling effect.

Plastic PVC polycarbonate PC Teslin sheet inlay sheet PVC card RFID samrt ID card laminating machine is used for laminating plastic PVC sheet,

Teslin sheet, PC sheet, polycarbonate sheet, to produce plastic PVC card, PC card, contactless RFID smart cards.

4. More description of Manual Loading RFID Card Laminator A4 2x5 PVC Sheet Pressing Machine PLC Control YLL-16A4S

Manual Loading RFID Card Laminator A4 2x5 PVC Sheet Pressing Machine PLC Control YLL-16A4S is also called Plastic Card Laminator/Smart Card Pressing Machine/Card Laminating Machine YLL-16A4

Package information:1 strong plywood carton or other solid package, GW 550KG, L1000XW700XH1400mm
