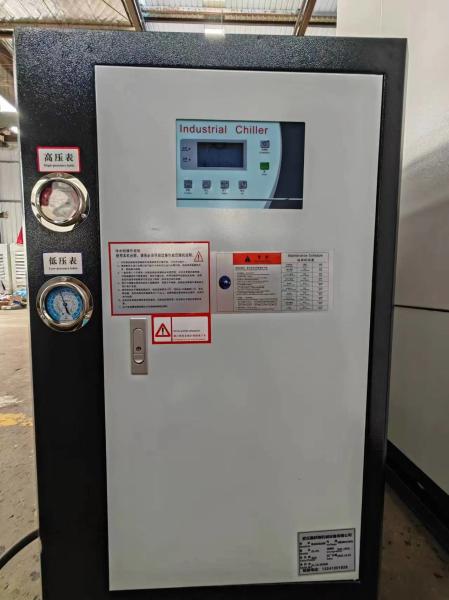

5HP 5KW Air Cooled Industrial Water Chiller YWC-5 suitable for Card laminator
5HP 5KW Air Cooled Industrial Water Chiller YWC-5 suitable for Card laminator
5HP 5KW Air Cooled Industrial Water Chiller YWC-5 suitable for Card laminator
5HP 5KW Air Cooled Industrial Water Chiller YWC-5 suitable for Card laminator
5HP 5KW Air Cooled Industrial Water Chiller YWC-5 suitable for Card laminator
5HP 5KW Air Cooled Industrial Water Chiller YWC-5 suitable for Card laminator
5HP 5KW Air Cooled Industrial Water Chiller YWC-5 suitable for Card laminator
5HP 5KW Air Cooled Industrial Water Chiller YWC-5 suitable for Card laminator
Specifications
Brand Name :
YL
Model Number :
YWC-5
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1 set per 20 days
Delivery Time :
20-25days
Packaging Details :
1 plywood case
nominal cooling capacity :
13.05KW
input power :
5.54KW
power supply :
3PH~380V/50HZ
dimension :
1140*560*1040MM
weight :
175kgs
safety protection :
Compressor thermal protection, over current, high and low pressure, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing.
Description

5HP 5KW Air Cooled Industrial Water Chiller YWC-5 suitable for Card laminator

1. Introduction of 5HP 5KW Air Cooled Industrial Water Chiller YWC-5 suitable for Card laminator

Note: 1). Nominal cooling capacity is according to:

Inlet chilled fluid temperature: 12℃

Outlet chilled fluid temperature: 7℃

Inlet cooling air temperature: 30℃

Outlet cooling air temperature: 35℃

5HP 5KW Air Cooled Industrial Water Chiller YWC-5 suitable for Card laminator

2). Working range:

The temperature range of chilled fluid is from 5℃ to 35℃;

Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

It is better to use the chiller while the ambient temperature at or below 35℃.

We reserve the right to modify the above dimensions or parameters without further notice.

2. Technical Parameter of 5HP 5KW Air Cooled Industrial Water Chiller YWC-5 suitable for Card laminator

5HP 5KW Air Cooled Industrial Water Chiller YWC-5 suitable for Card laminator

Model

Item

 YWC-5HP
nominal cooling capacity kcal/h 11223
kw 13.05
input power kw 5.54
power supply 3PH~380V/50HZ
refrigerant type R22
type of control capillary
compressor type hermetic scroll
power(kw) 4.41
condenser type finned copper tube + low noise outer rotor fan
cooling air flow (m3/h) 5000
evaporator type tank with coil
chilled fluid flow (m3/h) 2.24
volume (L) 70

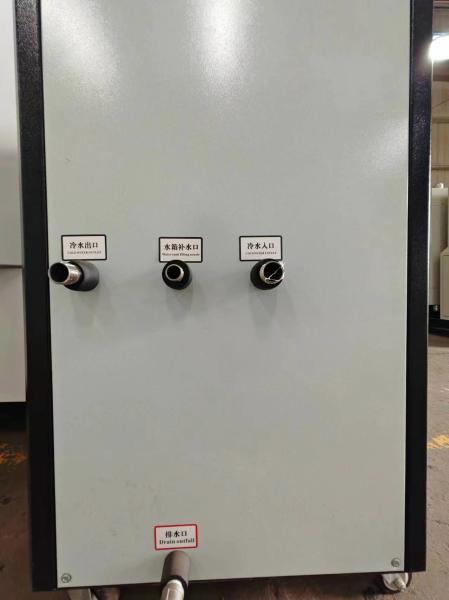

inlet and outlet pipe diameter (inch) 1
pump power (kw) 0.75
lift(m) 20
safety protection compressor thermal protection, over current, high and low pressure, phase sequence, phase-missing, exhaust overheating.
weight kg 175
Dimension. mm 1140*560*1040

3 . Package of 5HP 5KW Air Cooled Industrial Water Chiller YWC-5 suitable for Card laminator

It will packaged in a strong plywood case,and will loaded container with be fixed with ropes and triangular plywood in container to avoid transport damage.

5HP 5KW Air Cooled Industrial Water Chiller YWC-5 suitable for Card laminator

5HP 5KW Air Cooled Industrial Water Chiller YWC-5 suitable for Card laminator
