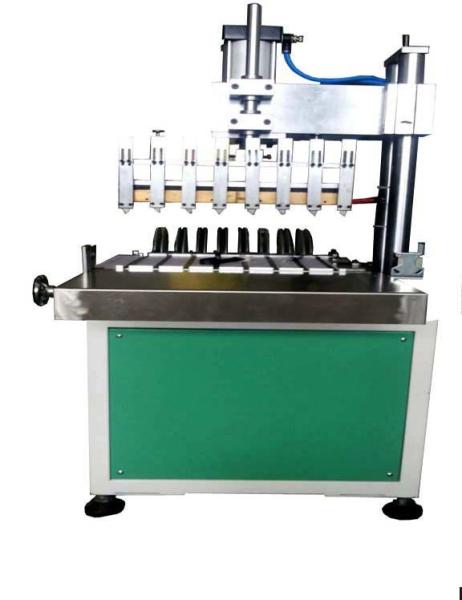

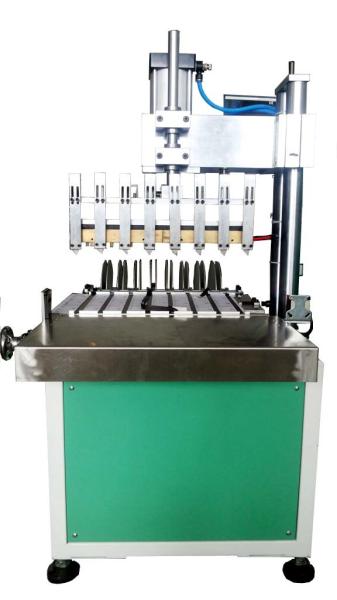

Manual Magnetic Stripe Bonding Machine YMSB-1 Designed For Positioning And Bonding Magnetic Strip To Plastic Sheet

Manual Magnetic Stripe Bonding Machine YMSB-1

card magnetic stripe bonding machine, magnetic stripe laying machine, magnetic stripe applicator, magnetic stripe pasting machine, card machine, smart card machine

1. Introduction of Manual Magnetic Stripe Bonding Machine YMSB-1 Designed For Positioning And Bonding Magnetic Strip To Plastic Sheet

Magnetic Stripe Bonding Machine YMSB-1 is designed for positioning and bonding magnetic strip to plastic sheet before lamination.

2. Features of Manual Magnetic Stripe Bonding Machine YMSB-1 Designed For Positioning And Bonding Magnetic Strip To Plastic Sheet

It is controlled by relay. The temperature is controlled by reliable imported temperature controller, and the time is controlled by time relay.

3. Technical parameters of Manual Magnetic Stripe Bonding Machine YMSB-1 Designed For Positioning And Bonding Magnetic Strip To Plastic Sheet

1). Power supply:AC380V/50HZ

2). Air resource: 6 kg/c㎡(dry)

3). Power: 3 KW

4). Temperature: 0-400℃(adjustable)

5). Temp. precision: ±2℃

6). Mag. stripe bonding precision: ±0.2mm

7). Weight: 150Kg

8). Productivity: 200-400 sheets/h

9). Mag. stripe model: ISO/IEC7811 HiCo/LoCo

10). Mag. stripe width: 12.7mm / 6.35mm, wheel diameter: 380mm

11). Mag. Stripes Qty.: 5~8 tapes optional

12). Layout: 3*8, 4*8, 5*5 (optional)

13). Operator number: 1

14). Dimension: L800*W700*H1500mm

15). Applicable materials: Plastic sheet: 0.25~0.8mm thick

4. Application of Manual Magnetic Stripe Bonding Machine YMSB-1 Designed For Positioning And Bonding Magnetic Strip To Plastic Sheet

Double air cylinder is used as power, and the bonding head pressure is adjustable.
