Automatically Controlled Magnetic Stripe Bonding Machine YASB-1 For PVC Sheet3×8, 4×8 And 5×5 Layout

Automatic Magnetic Stripe Bonding Machine YASB-1

Card magnetic stripe bonding machine, magnetic stripe laying machine, magnetic stripe applicator, magnetic stripe pasting machine, card machine, smart card machine

1. Introduction of Automatically Controlled Magnetic Stripe Bonding Machine YASB-1 For PVC Sheet3×8, 4×8 And 5×5 Layout

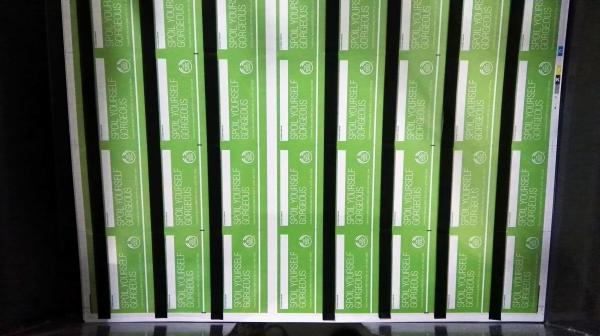

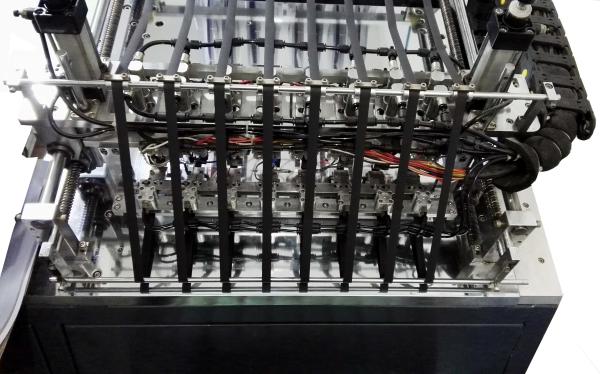

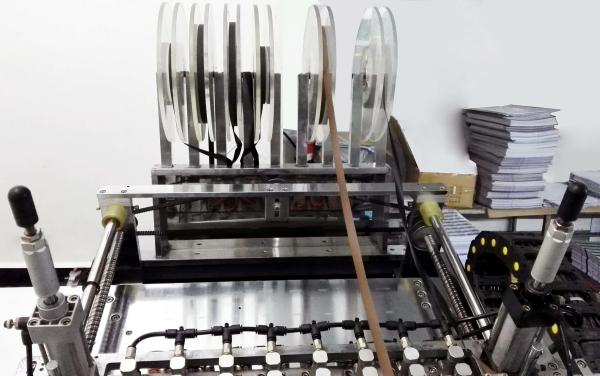

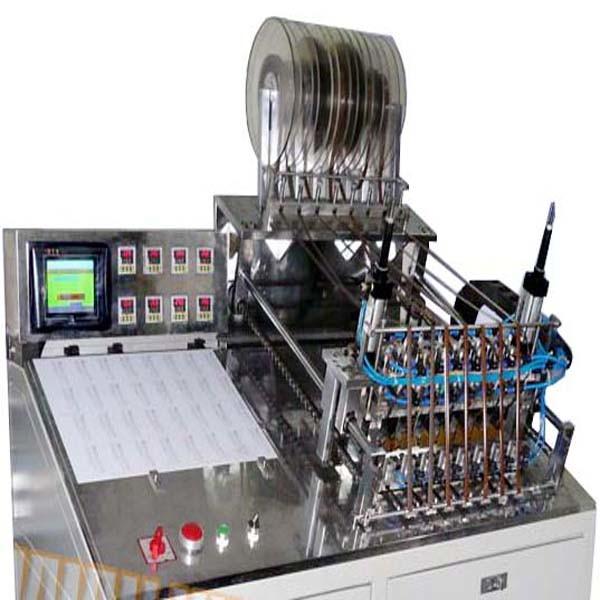

Automatic Magnetic Stripe Bonding Machine YASB-1 is designed for laying and bonding the magnetic stripe onto the coated overlay or printed PVC sheet in a accurate and speedy way. It is controlled by PLC system and adopts a smart touching screen. The clamp clips the tap and the card at the same time. Material is fed automatically by quality servo motor. The magnetic stripe laying and bonding can be realized at the same time. Flexible choice of card material layout is available (such as 3×8, 4×8 and 5×5).

2. Features of Automatically Controlled Magnetic Stripe Bonding Machine YASB-1 For PVC Sheet3×8, 4×8 And 5×5 Layout

1). The machine design is compact and easy in operation.

2). The maximum 8 magnetic strips can be bonded at same time.

3). All the bonding spots are welded at the same time, which can ensure tidy and beautiful finish.

4). It is automatically controlled in operation by PLC, and automatic error alarm is available.

5). Bonding point position, bonding time and temperature are adjustable.

6). It features reasonable design for transmission and cutting of magnetic strips, which can minimize the waste of magnetic stripes.

3. Technical parameter of Automatically Controlled Magnetic Stripe Bonding Machine YASB-1 For PVC Sheet3×8, 4×8 And 5×5 Layout

4. Application of Automatically Controlled Magnetic Stripe Bonding Machine YASB-1 For PVC Sheet3×8, 4×8 And 5×5 Layout
