Automatic Magnetic Stripe Laying Machine Servo Motor For PVC Sheet 3×8 4×8 Layout
Automatic Magnetic Stripe Laying Machine Servo Motor For PVC Sheet 3×8 4×8 Layout
Automatic Magnetic Stripe Laying Machine Servo Motor For PVC Sheet 3×8 4×8 Layout
Automatic Magnetic Stripe Laying Machine Servo Motor For PVC Sheet 3×8 4×8 Layout
Automatic Magnetic Stripe Laying Machine Servo Motor For PVC Sheet 3×8 4×8 Layout
Automatic Magnetic Stripe Laying Machine Servo Motor For PVC Sheet 3×8 4×8 Layout
Specifications
Brand Name :
YL
Model Number :
YASB-1
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1 set per 25-30 days
Delivery Time :
25-35days
Packaging Details :
Export standard plywood case
PVC layout :
3×8, 4×8 and 5×5
Magnetic strip number :
maximum 8 magnetic strips
Feature :
bonding time and temperature are adjustable
Air pressure :
6kg/cm3 square
Control method :
PLC program + servo system
Production capacity :
400-650 sheets/hour
Description

Automatic Magnetic Stripe Bonding Machine Servo Motor YASB-1 for PVC Sheet 3×8, 4×8 layout

1. Introduction of Automatic Magnetic Stripe Bonding Machine Servo Motor YASB-1 for PVC Sheet 3×8, 4×8 layout

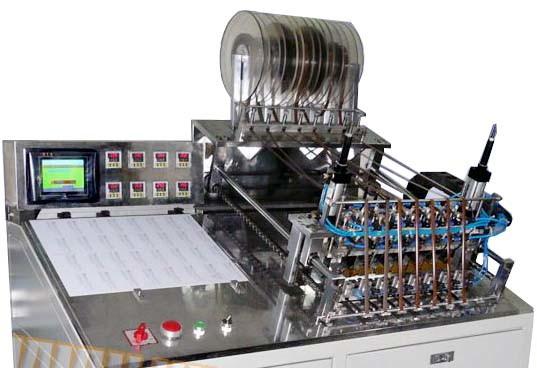

Automatic Magnetic Stripe Bonding Machine YASB-1 is designed for laying and bonding the magnetic stripe onto the coated overlay or printed PVC sheet in a accurate and speedy way. It is controlled by PLC system and adopts a smart touching screen. The clamp clips the tap and the card at the same time. Material is fed automatically by quality servo motor. The magnetic stripe laying and bonding can be realized at the same time. Flexible choice of card material layout is available (such as 3×8, 4×8 and 5×5).

2. Features of Automatic Magnetic Stripe Bonding Machine Servo Motor YASB-1 for PVC Sheet 3×8, 4×8 layout

1). The machine design is compact and easy in operation.

2). The maximum 8 magnetic strips can be bonded at same time.

3). All the bonding spots are welded at the same time, which can ensure tidy and beautiful finish.

4). It is automatically controlled in operation by PLC, and automatic error alarm is available.

5). Bonding point position, bonding time and temperature are adjustable.

6). It features reasonable design for transmission and cutting of magnetic strips, which can minimize the waste of magnetic stripes.

Power source AC 380V/50 HZ Stripe type Accord with ISO/IEC7811 high density and lower density magnetic stripe
Air source 6 kg(no water) Stripe width 12.7mm 6.35mm plate dia.380mm
Total power 8.5KW Stripe amount 5~8 PCS
Temperature control range 0-400ºC(can be set) Available sheet 3X8,4X8,5X5(with choice)
Temperature control precision ±2ºC Operator 1 person
Laying precision ±0.15mm Overall dimension L1560xW800xH1500mm
Weight Approx.200Kg Available material Film sheet:thickness0.25~0.8mm,
width: 580mm,
Coil film: thickness 0.04-0.2mm:
Inner diameter:3inches;outer diameter less than20 inches[500mm]; width: 580mm

Automatic Magnetic Stripe Laying Machine Servo Motor For PVC Sheet 3×8 4×8 Layout

3. Technical parameter of Automatic Magnetic Stripe Bonding Machine Servo Motor YASB-1 for PVC Sheet 3×8, 4×8 layout

Machine Model YASB-1
Power supply AC 220V 50HZ 2.5KW
Air pressure 6kg/cm3 square
Size of work table L520xW500mm
Production capacity 400-650 plates/hour
Bonding point position precision ±0.1mm
Control method PLC program + servo system
Operator 1 person
Weight 200kg Approx
Overall dimension L1560xW800xH1500mm

Automatic Magnetic Stripe Laying Machine Servo Motor For PVC Sheet 3×8 4×8 Layout

4. Application of Automatic Magnetic Stripe Bonding Machine Servo Motor YASB-1 for PVC Sheet 3×8, 4×8 layout

Automatic Magnetic Stripe Bonding Machine Servo Motor YASB-1 for PVC Sheet 3×8, 4×8 layout is also called Automatic Magnetic Stripe Bonding Machine YASB-1 Card magnetic stripe bonding machine, magnetic stripe laying machine, magnetic stripe applicator, magnetic stripe pasting machine, card machine, smart card machine

Automatic Magnetic Stripe Laying Machine Servo Motor For PVC Sheet 3×8 4×8 Layout
