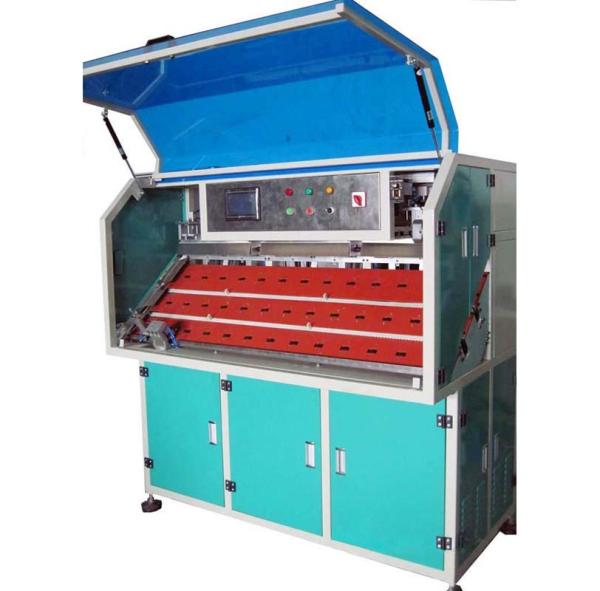

Sheet Collating and Bonding Machine Full Auto Card Sheet Collator and Bonder YSCB-1
Sheet Collating and Bonding Machine Full Auto Card Sheet Collator and Bonder YSCB-1
Specifications
Brand Name :
YL
Model Number :
YSCB-1
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1 set per 35 days
Delivery Time :
30-35days
Packaging Details :
1 plywood case
Power supply :
AC 380V/50 HZ
Air resource :
6 kg/c㎡(dry)
Power :
2.5KW
Air consumption :
Around 80L/min
weight :
Approximately 300Kg
Control mode :
PLC+Servo system
Dimension :
L2150×W950×H1650mm
Operator number :
1
Productivity :
2000 sheets/h
Description

Full Auto Card Sheet Collator and Bonder YSCB-1

Automatic Sheet Collating and Bonding Machine Card sheet Bonding machine sheet bonder card sheet collating machine/collator card machine smart card machine

1. Introduction of Full Auto Card Sheet Collator and Bonder YSCB-1

The machine is designed for automatically picking, collating and bonding the sheets (2 printed sheets+1 middle core sheet or only 2 printed sheets), which can greatly improve the plastic card production productivity.

2. Features of Full Auto Card Sheet Collator and Bonder YSCB-1

1.It applies mature ultrasonic bonding technology to realize perfect bonding quality.

2.It is controlled by the PLC program with large LCD display. The servo system can realize automatic transmission of card sheets.

3.Parameter setting is easy and convenient. The operation speed is fast with high precision.

4.Thickness detection function is available to avoid the same sheets combined in one assembly.

5.It can work on the assembly of 2 printed sheets+1 middle core sheet or only 2 printed sheets. The thickness of the applicable card sheet is more than 0.12mm.

6.Sheet picking is stable and reliable without scratches on card sheet surface.

7.There are no scratches on card sheet surface in the whole conveying process of the machine.

3. Technical Parameter of Full Auto Card Sheet Collator and Bonder YSCB-1

Power supply

AC 380V/50 HZ
Total power 2.5KW
Air Source 6 kg/c㎡
Air consumption About 80L/min
Weight About 300Kg
Productivity 2000sheets/hour

Control mode

PLC+Servo system

Dimension

L2150×W950×H1650mm

Operator number

 1
