Manual Magnetic Stripe Bonding Machine 200-400 sheets/h YMSB-1
Manual Magnetic Stripe Bonding Machine 200-400 sheets/h YMSB-1
Specifications
Brand Name :
YL
Model Number :
YMSB-1
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram, Western Union
Supply Ability :
5 sets per quater
Delivery Time :
25-30days
Packaging Details :
Standard export plywood case
Power supply :
AC 380V/50 HZ
Air resource :
6 kg/c㎡(dry)
Power :
3 KW
Temperature :
0-400℃(adjustable)
Temp. precision :
±2℃
Mag. stripe bonding precision :
±0.2mm
Weight :
150Kg
Productivity :
200-400 sheets/h
Mag. stripe model :
ISO/IEC7811 HiCo/LoCo
Mag. stripe width :
12.7mm / 6.35mm, wheel diameter: 380mm
Mag. stripes Qty. :
5~8 tapes optional
Layout :
3X8, 4X8, 5X5 (optional)
Operator number :
1
Dimension :
L800×W700×H1500mm
Applicable materials :
Plastic sheet: 0.25~0.8mm thick
Description

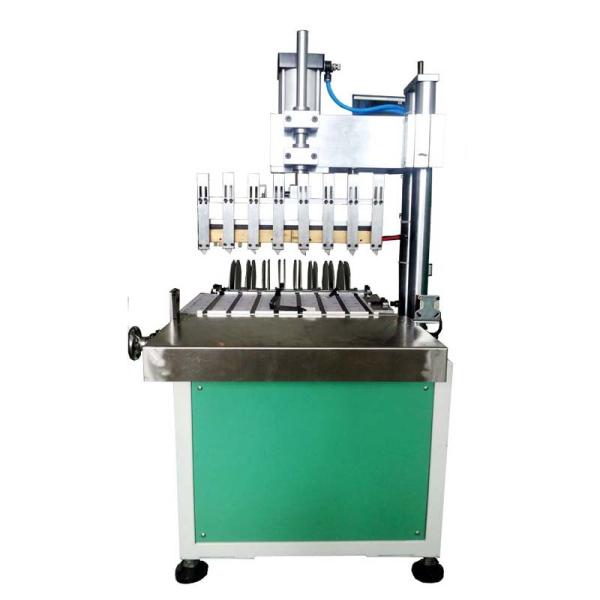

Manual Magnetic Stripe Bonding Machine YMSB-1

1. Function and application of Manual Magnetic Stripe Bonding Machine YMSB-1

Magnetic Stripe Bonding Machine YMB-1 is designed for positioning and bonding magnetic strip to plastic sheet before lamination.

It is controlled by relay. The temperature is controlled by reliable imported temperature controller, and the time is controlled by time relay.

Double air cylinder is used as power, and the bonding head pressure is adjustable.

2. Technical parameters Manual Magnetic Stripe Bonding Machine YMSB-1

Power supply

AC 380V/50 HZ

Mag. stripe model

ISO/IEC7811 HiCo/LoCo

Air resource

6 kg/c㎡(dry)

Mag. stripe width

12.7mm / 6.35mm, wheel diameter: 380mm

Power

3 KW

Mag. stripes Qty.

5~8 tapes optional

Temperature

0-400℃(adjustable)

layout

3X8, 4X8, 5X5 (optional)

Temp. precision

±2℃

Operator number

1

Mag. stripe bonding precision

±0.2mm

Dimension

L800×W700×H1500mm

Weight

150KG

Applicable materials

Plastic sheet: 0.25~0.8mm thick

Productivity

200-400 sheets/h
