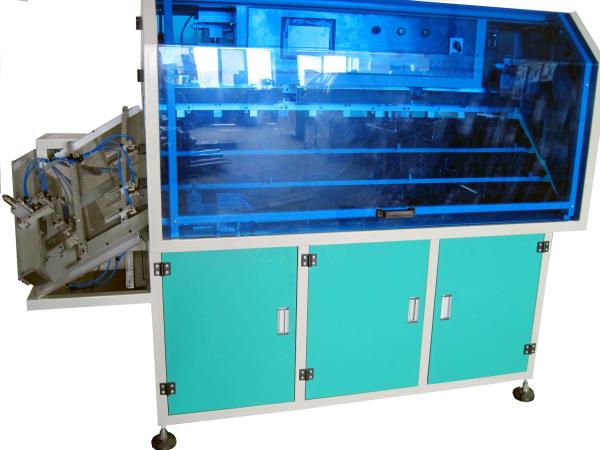

Automatic Sheet Picking Collating And Bonding Machine Ultrasonic Bonding Technology YSCB-1
Automatic Sheet Picking Collating And Bonding Machine Ultrasonic Bonding Technology YSCB-1
Automatic Sheet Picking Collating And Bonding Machine Ultrasonic Bonding Technology YSCB-1
Automatic Sheet Picking Collating And Bonding Machine Ultrasonic Bonding Technology YSCB-1
Automatic Sheet Picking Collating And Bonding Machine Ultrasonic Bonding Technology YSCB-1
Automatic Sheet Picking Collating And Bonding Machine Ultrasonic Bonding Technology YSCB-1
Specifications
Brand Name :
YL
Model Number :
YSCB-1
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1 set per 35 days
Delivery Time :
30-35days
Packaging Details :
1 plywood case
Control mode :
PLC+Servo system
Dimension :
L2150×W950×H1650mm
Weight :
about 300kgs
Power :
2.5kw
Power supply :
AC 380V/50 HZ
Productivity :
2000 sheets/h
Description

Ultrasonic Bonding Technology Automatic Sheet Picking Collating And Bonding Machine YSCB-1

Automatic Sheet Collating and Bonding Machine/Full Auto Card Sheet Collator and Bonder YSCB-1

(keyword: Card sheet Bonding machine/ sheet bonder, card sheet collating machine/collator, card machine, smart card machine)

1. Introduction of Ultrasonic Bonding Technology Automatic Sheet Picking Collating And Bonding Machine YSCB-1

The machine is designed for automatically picking, collating and bonding the sheets (2 printed sheets+1 middle core sheet or only 2 printed sheets), which can greatly improve the plastic card production productivity.

Automatic Sheet Picking Collating And Bonding Machine Ultrasonic Bonding Technology YSCB-1

2. Features of Ultrasonic Bonding Technology Automatic Sheet Picking Collating And Bonding Machine YSCB-1

  • It applies mature ultrasonic bonding technology to realize perfect bonding quality.
  • It is controlled by the PLC program with large LCD display. The servo system can realize automatic transmission of card sheets.
  • Parameter setting is easy and convenient. The operation speed is fast with high precision.
  • Thickness detection function is available to avoid the same sheets combined in one assembly.
  • It can work on the assembly of 2 printed sheets+1 middle core sheet or only 2 printed sheets. The thickness of the applicable card sheet is more than 0.12mm.
  • Sheet picking is stable and reliable without scratches on card sheet surface.
  • There are no scratches on card sheet surface in the whole conveying process of the machine.

Automatic Sheet Picking Collating And Bonding Machine Ultrasonic Bonding Technology YSCB-1

3. Technical Parameter of Ultrasonic Bonding Technology Automatic Sheet Picking Collating And Bonding Machine YSCB-1

Power supply AC 380V/50 HZ Control mode PLC+Servo system
Air resource 6 kg/c㎡(dry) Dimension L2150×W950×H1650mm
Power 2.5KW Operator number 1
Air consumption Around 80L/min Productivity 2000 sheets/h
weight Approximately 300Kg

4. Application of Ultrasonic Bonding Technology Automatic Sheet Picking Collating And Bonding Machine YSCB-1

Automatic Sheet Picking Collating And Bonding Machine Ultrasonic Bonding Technology YSCB-1
