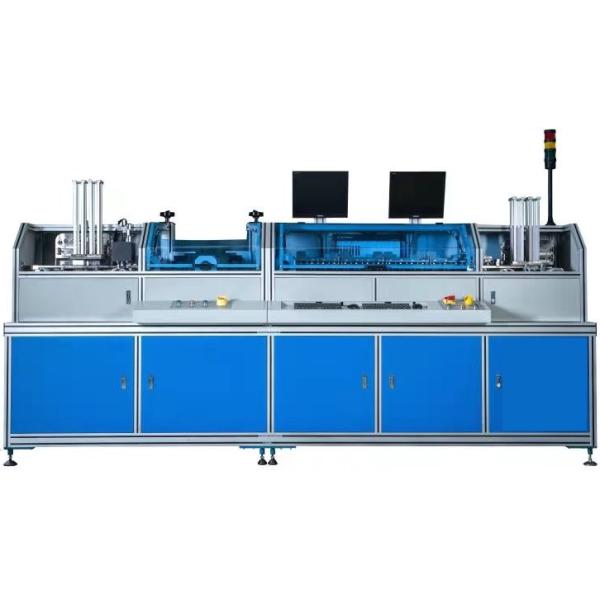

Contact Encoding Laser Printing 2-Chip Card And 4-Chip SIM Card Personalization Machine YSCP-1

SIM Card Personalization Machine/SIM Card Data Encoder and Laser Engraving Machine/SIM Card Perso Line/SIM Card Machine YSCP-1

1. Introduction of Contact Encoding Laser Printing 2-Chip Card And 4-Chip SIM Card Personalization Machine YSCP-1

SIM Card Personalization Machine YSCP-1 is applicable for writing the sequential requirement data such as smart card personalized data and it can also be used for laser number marking. The equipment is developed with module design. The card writing head and laser engraving unit can be flexibly supplied according to customer requirements.

This machine is designed for personalizing GSM cards with 1 chip in 1 card, 2 chips in 1 card, and 4 chips in 1 card through contact encoding and laser graphical printing.

2. Features of Contact Encoding Laser Printing 2-Chip Card And 4-Chip SIM Card Personalization Machine YSCP-1

Basic Configuration

1) 16 work stations(including 64 writing heads available for both 2-chip card and 4-chip card)

2) 2 industrial control host computers

3) 2 Loaders and 2 unloaders(4×500 cards)

4) 1 rejection box

5) 3 dual-station flippers (2-side laser marking and collection card surface selection function)

6) 2 laser engraving units,

7) 1 TP-LINK (48 interfaces) switch

Speed and data downloading time:

X axis is time,Y axis is speed,the time at inflexion is 8.8s. when the downloading time is 24.8s,the speed is 2000 cards/h.

Speed and laser marking time

3. Technical Parameter of Contact Encoding Laser Printing 2-Chip Card And 4-Chip SIM Card Personalization Machine YSCP-1

• Dimension: 3.6 m×0.8m×1.90 m
• Weight: About 1000kg
• Power: 220V, 50Hz, 3KW(machine),3.6KW(Laser)
• Air pressure: 0.5Mpa 10L/min

4. More details of Contact Encoding Laser Printing 2-Chip Card And 4-Chip SIM Card Personalization Machine YSCP-1

X axis is time,Y axis is speed,the time at inflexion is 0.39s,when the marking time is 1.6s,the speed is 1800 cards/h.

The SIM Card Personalization Machine YSCP-1 is also named as SIM Card Data Encoder and Laser Engraving Machine , SIM Card Perso Line YSCP-1.

5. Advantage of Contact Encoding Laser Printing 2-Chip Card And 4-Chip SIM Card Personalization Machine YSCP-1

• Rich experience in manufacturing Smart Card making equipment
• Independent R&D ability for flexibility and cost-effectiveness
• Comprehensive after-sales service systems
• Supports contact ISO cards, half cards (two chips in one card), and quarter cards (four chips in one card)
• PC & servo control for stable performance
• Maximum speed of 8,000 cards/h for read/write and laser graphical printing
• Can be equipped with 8-64 contact or contactless processing stations
• Optional OCR inspections
• Composed of mechanical configuration, electronic control, and data processor with online security monitoring
• Provides SDK, DLL, and application interface for custom card manufacturing software development
