600*730mm Big Size PVC Sheet Laminator Auto Tray Tranfer RFID Card Inlay Laminating Machine YLL-26C

Plastic Card Laminator,Smart Card Pressing Machine,Card Laminating Machine YLL-26C 600*730mm

1. Introduction of Automatic Tray Transfer Smart Card Pressing Machine 560*750mm RFID Chip Card Lamination YLL-27C

The machine uses the advance laminating technology for normal Magnetic Stripe Card, various Contact & Contactless smart card and prepaid card's production. With heating and cooling towers, PLC control, double liquid compressor pump plus 4 pressure tanks to compress the sheet for the lamination.

Automatic tray moving from hot tower to cold tower after hot lamination finished, manual tray feeding and removing, template size 600*730mm for 6*8 layout or less size, 2 towers, 6 openings for each, 4 cylinders for each tower, PLC controlled, designed for smart card or RFID Card INLAY lamination

2. Features of Automatic Tray Transfer Smart Card Pressing Machine 560*750mm RFID Chip Card Lamination YLL-27C

• It can realize automatic tray moving from hot tower to cool tower, which can greatly reduce the labor level in lamination process.
• It is controlled by Programmable logic controller with intelligent man-machine interface touch screen for easy operation. Many types of lamination parameters can be automatically saved;
• It can realize automatic tray moving from hot tower to cool tower after the hot lamination operation is finished.

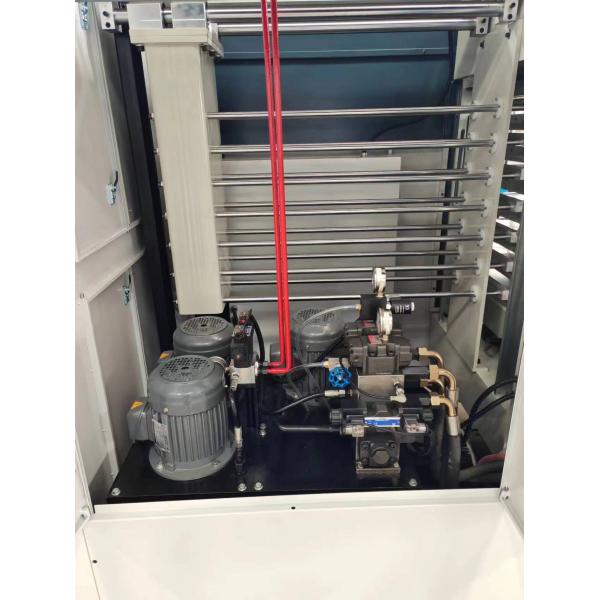

• pressure supply is realized by two motors and two oil pumps for very high reliability;
• Automatic lamination parallelism adjustment is available.
• The pressure and temperature control module is applied to ensure higher control precision.
• If the working laminator power supply is accidentally off, the operator can open the laminating plates manually to minimize unnecessary losses;
• The heating tower is installed with external thermal insulation housing to ensure efficient and environmentally friendly lamination.

Plastic Card Laminator is also named as Plastic Card Press, Smart Card Pressing Machine or Card Laminating Machine.

also named as Plastic Card Press, Smart Card Pressing Machine or Card Laminating Machine.

3. Technical Parameter of Automatic Tray Transfer Smart Card Pressing Machine 560*750mm RFID Chip Card Lamination YLL-27C

1. PVC sheet layout: 6×8 5×5, 3×8, 4×8

2. Laminating template size and material: 600×730mm, aluminum alloy

3. Hydraulic cylinder number: 4 small cylinders (diameter 125mm) for each tower

4.Daylight number/distance: 6 daylights, 2 towers/50mm

5. Control mode: PLC

6.Pressure precision and range: +/-0.3Mpa, 0.3-16Mpa (adjustable)

7. Temperature control precision: +/-1℃

8. Heating temperature: ≤200℃

9. Power: 23 KW (Maximum)

10. Power supply: AC380V 50/60HZ 3 phase 5 wires

11. Dimension: 2500mm×1200mm×1850mm

12. Gross weight: 3400 kg.

4. More details of Automatic Tray Transfer Smart Card Pressing Machine 560*750mm RFID Chip Card Lamination YLL-27C

Normal packing method:Export stanard plywood case or other solid package;

Feature Description:

It is controlled by PLC system to ensure more precise control in each lamination stage and more reliable performance.

This model is specially designed for the quality lamination of various cards including RFID chip cards.

The big size cooling parallel loop is specially designed to ensure better cooling effect.

Plastic PVC polycarbonate PC Teslin sheet inlay sheet PVC card RFID samrt ID card laminating machine is used for laminating plastic PVC sheet,teslin sheet, PC sheet, polycarbonate sheet, to produce plastic PVC card, PC card, contactless RFID smart cards.

Plastic Card Laminator is also named as Plastic Card Press, Smart Card Pressing Machine or Card Laminating Machine.
