Hex Nuts, Slotted, Metric,DIN935,Plain Surface,ISO/R 288-1:1963 - Slotted and castle nuts with metric thread
Hex Nuts, Slotted, Metric,DIN935,Plain Surface,ISO/R 288-1:1963 - Slotted and castle nuts with metric thread
Hex Nuts, Slotted, Metric,DIN935,Plain Surface,ISO/R 288-1:1963 - Slotted and castle nuts with metric thread
Hex Nuts, Slotted, Metric,DIN935,Plain Surface,ISO/R 288-1:1963 - Slotted and castle nuts with metric thread
Hex Nuts, Slotted, Metric,DIN935,Plain Surface,ISO/R 288-1:1963 - Slotted and castle nuts with metric thread
Hex Nuts, Slotted, Metric,DIN935,Plain Surface,ISO/R 288-1:1963 - Slotted and castle nuts with metric thread
Specifications
Brand Name :
ESOON
Model Number :
DIN935
Certification :
SGS,CNAS
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
USD$1000~2000/TON
Payment Terms :
TT,LC
Supply Ability :
300 Tons/Months
Delivery Time :
15~25 DAYS
Packaging Details :
Standard export packing or According to customer's requirement
SIZE :
M6 ~M100
GRADE :
4,6,8
Surface :
Plain,ZP,BLACK
Material :
Carbon Steel
Description

DIN935 HEX SLOTTED NUT AND CASTLE NUTS

STANDARD:

DIN935

ISO R 288/1

ANSI B18.2.4.3M

WE CAN SUPPLY SMALL QUANTITY AS TRIAL ORDER.

FEATURE:

1. FREE SAMPLES

2. NON-STANDARD ITEM CAN BE CUSTOMIZED

3. STANDARD SIZE ETA 7 DAYS!

PRODUCTS DESCRIPTION:
Grade 4,6,8
Size M6-M100
Standard DIN935
Finish PLAIN,ZP,BLACK
Material Carbon Steel
Packing Standard export packing or According to customer's requirement
Delivery time regular product is about 15-30days, custom product will according to special requirement

Hex Nuts, Slotted, Metric,DIN935,Plain Surface,ISO/R 288-1:1963 - Slotted and castle nuts with metric thread

All measurements in millimeters (mm)
d1 s max. e m max. w max. n min.
M5 8 8.87 6 4 1.4
M6 10 11.05 7.5 5 2
M8 13 14.38 9.5 6.5 2.5
M10 17 18.9 12 8 2.8
M12 19 21.1 15 10 3.5
M14 22 24.49 16 11 3.5
M16 24 26.75 19 13 4.5
M18 27 29.56 21 15 4.5
M20 30 32.95 22 16 4.5
M22 32 35.03 26 18 5.5
M24 36 39.55 27 19 5.5
M27 41 45.2 30 22 5.5
M30 46 50.85 33 24 7
M33 50 55.37 35 26 7
M36 55 60.79 38 29 7
M39 60 66.44 40 31 7
M42 65 71.3 46 34 9
M45 70 78.26 48 36 9
M48 75 82.6 50 38 9
M52 80 88.25 54 42 9
M56 85 95.07 57 45 9
M60 90 100.72 63 48 11
M64 95 106.37 66 51 11
M68 100 112.02 69 54 11
M72 105 117.67 73 58 11
M76 110 123.32 76 61 11
M80 115 128.97 79 64 11
M85 120 134.62 88 68 14
M90 130 145.77 92 72 14
M95 135 151.42 96 76
M100 145 162.72 100 80 14

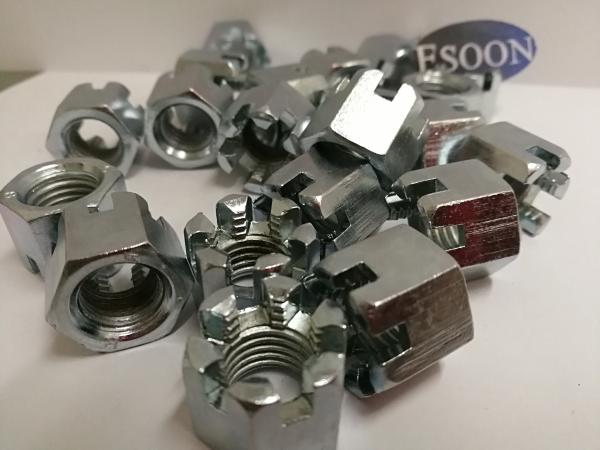

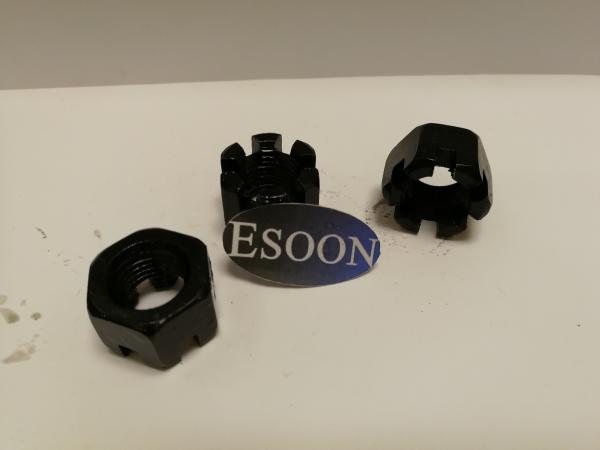

IMAGE DETAILS

Hex Nuts, Slotted, Metric,DIN935,Plain Surface,ISO/R 288-1:1963 - Slotted and castle nuts with metric thread
