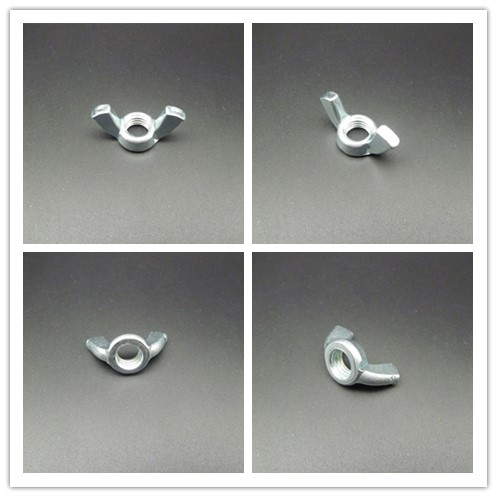

M8-1.5 DIN315 Wing Nut,Metric,Grade 8.8 Zinc Plating,Carbon Steel
M8-1.5 DIN315 Wing Nut,Metric,Grade 8.8 Zinc Plating,Carbon Steel
M8-1.5 DIN315 Wing Nut,Metric,Grade 8.8 Zinc Plating,Carbon Steel
M8-1.5 DIN315 Wing Nut,Metric,Grade 8.8 Zinc Plating,Carbon Steel
M8-1.5 DIN315 Wing Nut,Metric,Grade 8.8 Zinc Plating,Carbon Steel
M8-1.5 DIN315 Wing Nut,Metric,Grade 8.8 Zinc Plating,Carbon Steel
Specifications
Brand Name :
ESOON
Model Number :
DIN315
Certification :
GS,TUV
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
USD$1050~1500/TON
Payment Terms :
TT,LC
Supply Ability :
300 Tons/Months
Packaging Details :
Standard export packing or According to customer's requirement
SIZE :
M8-1.5
Grade :
8.8 Class
Surface :
ZINC PLATED
Material :
Carbon Steel
Description

DIN315

Wing nuts with rectangular wings

A nut is a type of fastener with a threaded hole. Nuts are almost always used in conjunction with a mating bolt to fasten multiple parts together. The two partners are kept together by a combination of their threads' friction (with slight elastic deformation), a slight stretching of the bolt, and compression of the parts to be held together.

1 Diagram

M8-1.5 DIN315 Wing Nut,Metric,Grade 8.8 Zinc Plating,Carbon Steel

2 Dimensions

SIZE M3-M16

d1 d2 e g h
M4 6 18 1.7 8.5
M5 8 24 2.3 11
M6 10 30 2.7 15
M8 13 36 3.6 18
M10 17 48 4.6 23
M12 20 62 5.6 31
M16 26 70 6.5 35

3 Finish & Surface

Material Carbon Steel (#35,#45,
Grade 4.8 6.8 8.8 10.8 12.8 CLASS
Finish Plain,Zinc Plated,Black Oxide

ZINC PLATED SURFACE

M8-1.5 DIN315 Wing Nut,Metric,Grade 8.8 Zinc Plating,Carbon Steel

4 Packing & Delivery time

Packing Standard export packing or According to customer's requirement
Delivery Time
Regular product is about 5-20days, the custom product will according to special requirement

M8-1.5 DIN315 Wing Nut,Metric,Grade 8.8 Zinc Plating,Carbon Steel

M8-1.5 DIN315 Wing Nut,Metric,Grade 8.8 Zinc Plating,Carbon Steel
