Specifications
Brand Name :
CHEVROLET
Model Number :
TCK0322003 TCK0322004
Certification :
ISO9001 / ISO14001
Place of Origin :
China
MOQ :
NO MOQ
Price :
Consult
Payment Terms :
30% deposit, balance the complete payment before shipment
Supply Ability :
1005 sets per month
Delivery Time :
45-60 days
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Product Name :
Timing Chain Kit
Part Number :
TCK0322003 TCK0322004
Interchange Part Number :
9-4201S / 9-4202S
Dimensions :
33*24.5*6.5
Warranty :
Yes
Condition :
New
Description

00 - 11 Gm Saturn Chevrolet Engine Timing Chain Kit With Balance Shaft Set

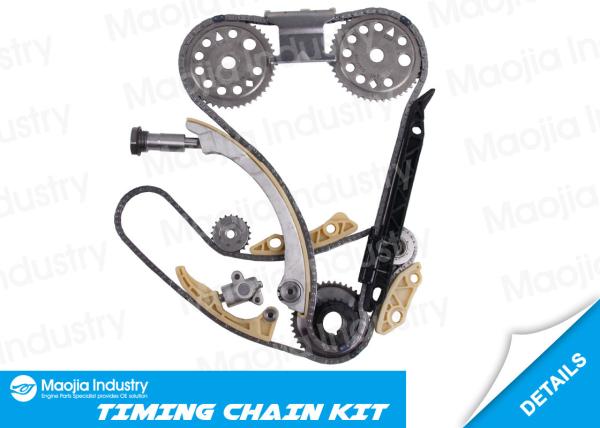

Product Component:

• 1 Timing Chain (148 Links)
• 1 Tensioner (Cam Chain Tensioner)

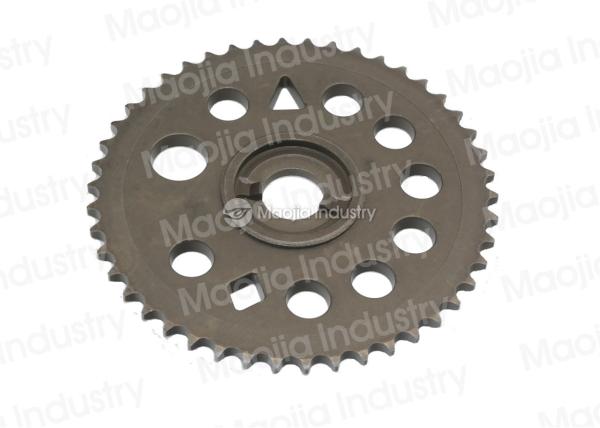

• 2 Cam Sprockets (46 Teeth)
• 1 Crank Sprocket (23 Teeth)
• 1 Guide Rail (Upper For Cam Chain)
• 1 Guide Rail (Left For Cam Chain)
• 1 Guide Rail (Right For Cam Chain)
• 1 Timing Chain (134 Links)
• 1 Tensioner (Balance Shaft)
• 1 Guide Rail (Upper For B/S Chain)
• 1 Guide Rail (Left For B/S Chain)
• 1 Guide Rail (Right For B/S Chain)
• 1 Crank Sprocket (42 Teeth)
• 1 Balance Shaft Sprocket (Intake Sprocket 21 Teeth)
• 1 Balance Shaft Sprocket (Exhaust Sprocket 21 Teeth)

Other Part Number :

24461834 / 24424758 / 90537632 / 90537632

12608580 / 24449448 / 13104978 / 90537337

90537370 / 12635427 / 90537301 / 90537435

90537295 / 90537300 / 90537299 / 90537369

Car Application:

10 - 11 BUICK LACROSSE 2.4L 2384CC 145CU. IN. L4 DOHC

11 - 11 BUICK REGAL 2.0L 1998CC 122CU. IN. L4 DOHC TURBOCHARGED

11 BUICK REGAL 2.4L 2384CC 145CU. IN. L4 DOHC

03 - 04 CHEVROLET CAVALIER 2.2L 134CU. IN. L4 DOHC

02 - 05 CHEVROLET CAVALIER 2.2L 2198CC 134CU. IN. L4 DOHC

05 - 07 CHEVROLET COBALT 2.0L 122CU. IN. L4 DOHC SUPERCHARGED

05 - 08 CHEVROLET COBALT 2.2L 2198CC 134CU. IN. L4 DOHC

06 - 08 CHEVROLET COBALT 2.4L 145CU. IN. L4 DOHC

06 CHEVROLET HHR 2.2L 2189CC 134CU. IN. L4 DOHC

07 - 08 CHEVROLET HHR 2.2L 2198CC 134CU. IN. L4 DOHC

04 - 08 CHEVROLET MALIBU 2.2L 2198CC 134CU. IN. L4 DOHC

08 - 10 CHEVROLET MALIBU 2.4L 145CU. IN. L4 DOHC

08 - 09 CHEVROLET MALIBU 2.4L 145CU. IN. L4 ELECTRIC/ DOHC

02 - 04 OLDSMOBILE ALERO 2.2L 2198CC 134CU. IN. L4 DOHC

07 - 08 PONTIAC G5 2.2L 2198CC 134CU. IN. L4 DOHC

02 - 05 PONTIAC GRAND AM 2.2L 2198CC 134CU. IN. L4 DOHC

02 - 05 PONTIAC SUNFIRE 2.2L 2198CC 134CU. IN. L4 DOHC

08 - 09 SATURN AURA 2.4L 145CU. IN. L4 DOHC

08 - 09 SATURN AURA 2.4L 145CU. IN. L4 ELECTRIC/ DOHC

04 - 07 SATURN ION 2.0L 122CU. IN. L4 DOHC SUPERCHARGED

03 - 07 SATURN ION 2.2L 2198CC 134CU. IN. L4 DOHC

06 - 07 SATURN ION 2.4L 2384CC 145CU. IN. L4 DOHC

00 SATURN LW1 2.2L 2198CC 134CU. IN. L4 DOHC

07 - 10 SATURN SKY 2.4L 2384CC 145CU. IN. L4 DOHC

06 SATURN VUE 2.2L 2198CC 134CU. IN. L4 DOHC

08 - 09 SATURN VUE 2.4L 145CU. IN. L4 DOHC

07 - 09 SATURN VUE 2.4L 145CU. IN. L4 ELECTRIC/ DOHC

00 - 11 GM Saturn Chevrolet Engine Timing Chain Kit With Balance Shaft Set

As one of the leading engine parts suppliers in China, Maojia has been dedicated to delivering quality timing kits at competitive price with highest level of customer satification.

Flexible solution for Timing Chain Kit

Timing Chain kit covers a wide range of car models. Among each kit, you will find timing chain, sprockets, guides, tensioners, VVT, gaskets, oil seals, bolts etc. It can be provided with different components according to customers’ single requirements and different market preference. All components are individually packed, and the kit packing will be blister sealed for protection. And customized packing can also be designed for brand promotion.

00 - 11 GM Saturn Chevrolet Engine Timing Chain Kit With Balance Shaft Set
High Quality and 100% Tested

With quality at the forefront of everything we do, our selected timing parts are controlled at the same quality level to ensure their equivalent failure in module kits. And all of our kits will be 100% tested with specific Operation Card before delivery. 2 years warranty is gurranteed for our reliable timing parts.

Professional Team and Service

With more than a decade years’ experience, Maojia Timing Chain kit project is backed up with energetic team members to provide professsional service on the product technique, marketing and logistics. With such reliable products, we have customers all the way from Europe, North America, Latin America, Asia and Middle East. The feedback from all of our clients is unparalleled.To prospect into the future, we'll keep on making our service more diversified.
