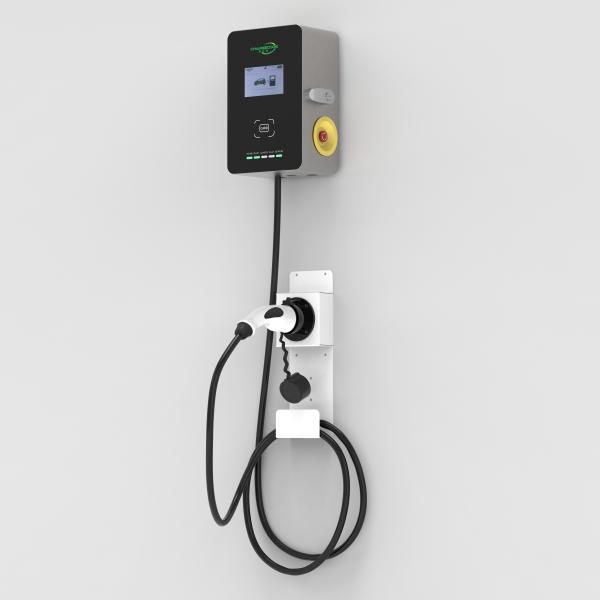

4m AC EV Charging Station OCPP 1.6J Wall Mounted 22KW
4m AC EV Charging Station OCPP 1.6J Wall Mounted 22KW
Specifications
Brand Name :
Chargecore
Model Number :
AC003
Certification :
CE,UL,TUV
Place of Origin :
Nanjing, China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, L/C
Supply Ability :
500 pieces per month
Delivery Time :
20-45 days
Weight :
8KG
Wall Box Dimension :
H32*W21*T14cm
Cable length :
4 meter
Box Materia :
Aluminum Alloy
Screen :
5 inch LCD
Input frequency :
50Hz/60Hz
Precision :
Level 1
Consumption :
<2w
Packaging Details :
carton
Description

Wall Mounted Charging Station Ac Wallbox Home Ac Ev Charging Station

Specifications

Appearance
Rated power
Type 2: 7/22kw
Type 1: 9kw
Input Voltage
Single phase:230V±10%
Three phase:400V±10%
Output Current
Type 2:7kw-single phase 32A
22kw-three phase 32A
Type 1:9kw-single phase 40A
Functional Features
User Interface
Emergency Stop/LED indicator/RFID
Safety Features
Overvoltage/undervoltage protection, overload protection,
leakage protection, Overcurrent protection
Communication
Internet Interface
Ethernet(WIFI, 3g/4gLTE as optional)
OCPP
OCPP 1.6J
Working environment
Working latitude
<2000m
Working temperature
-30° C～+55° C
Working humidity
5 %~ 95%
Protection level
IP55
Cooling
Natural cooling
Safety standards
IEC61851-1/2017
Special protection
Anti-UV protection

1. Have high voltage charging gun of European standard, American standard and Japanese standard. It can generate different charging configures according to customers’ requirements.
2. Modular design, adapt to customers’ needs.
3. OCPP communication protocol
4. Have open, shareable data service platform and management platform (cloud platform)
5. Have protection functions such as input under voltage, input overvoltage, output short-circuit, output overvoltage, output overcurrent, battery reverse connection, insulation detection, communication failure, etc.

6. Have an external running indication, which can display the real-time status.
7. Wide range of AC output voltage, high suitability of utility grid, three phase three wire input without null line in the rectifier unit.
8. Has the function of protocol self-recognition, can realize the charging for electric vehicles without limitation of brand.
9. Compatible with coaches and cars charging function.
10. One pile can charge multiple vehicles, and take turns to charge automatically by applying automatic switch function
between charging according to the charging power and according to time. It can automatically judge whether the battery is full, one charging pile can meet at least five vehicles charging service task one night.
11. Emergency protection and alarming function, including over voltage, under voltage, over current, over temperature, phase missing, output short-circuit, leakage protection and so on.
After-sale Service
1. Two years warranty for all parts. If any parts break during the period, we will provide free replacement.
Non-quality factor damage is not included.
2. One to one technical engineer support for installation&operation and communication connection assistance
between your app and our OCPP platform.
