Top quality headlamp round 9 inch 120 watt pencil beam led headlight 24 lends headlight
Model | HKWL-9120-SDA |
Chip | Cree |
LEDs | 5W Cree LEDs*24 Pcs |
Material | Die-cast aluminum housing, PC LENS,stainless steel bracket |
Voltage | 9~32Volts DC |
Power | 120W |
IP | 68 |

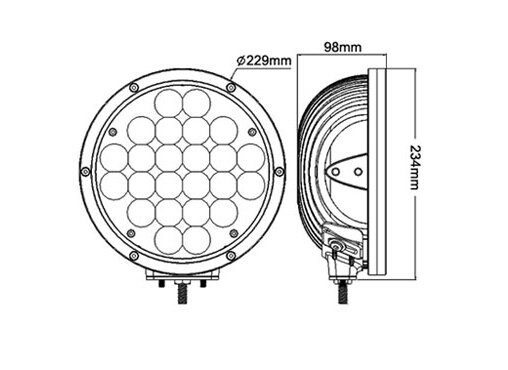

Size | 234*98*229mm (9 inch) |
Operating Lumens Output | 10000lm |
Color Temperature | 6500K |
Working Environment | -40°C~+80°C |
Beam | Pencil |
Certification | CE, RoHs, IP68 |
Warranty | 2 years |
Life Time | more than 50000 hours |
Advantages
New Released! High Power Especially For Australia Market!
1. Cree 10W LED from USA.
2. PC Lens, most of the performance is much better than PMMA.
3. Die-cast aluminum housing, anti-shock,unique design for heat-sink.
4. Silicone wires can work on hard environment.
5. 1 year warranty, CE, RoHS, IP68, EMC approval.
6. Extremely long life time: More than 50000 hours.
7. Wide Application: Off-road 4x4 vehicles, ATV, UTV, SUV, trucks, engineering vehicles, special vehicles, forklifts, jeeps, trains, boats, tanks, etc.
INTRO:
1) How long have you been in business?
09 began to produce this type of lamp
2) What are your shipping terms? (FOB, CIF, DDP?)
FOB,CIF
3) What is your OEM packaging inside and outside? What is in every single box?
Neutral packing, foam inside box+ outside box+ Carton
4) Lead time from order placed/payment received to port (China)
Base on the quantity,small order: 1-3days, bulk order: 7-15days
QUALITY:
5) Where do you source your Imported LEDs from?
Intact imported from United States.
6) Your quality guidelines? Your defect rate?
Our repair rate has been control in 1/1000
7) Warranty? How long?
We have, 12moths
8) Manufacturer capacity?
250 million yuan
9) Type of testing? What testing machines?
Waterproof test , burn-in test, Antistatic, Integrating sphere 1, carving machine, 2 salt spray
test machine,1 shock tester,1 EMCRF SHIELD ROOM, Darkroom
10) Certifications? IP rating?
CE ROHS E13 IP67
11) What is your light output efficiency? Lumens/watt?
We have 9W-324W
Epistart chip:80lm/W Imported: 90lm/W
12) Aluminum or copper circuit board?
Aluminum substrate
13) Aluminum or nylon housing mold?
Aluminium alloy extrusion profiles
14) Features: Lens type? Steel type? Paint type? Heat sink?
Lens type: PC or tempered glass,Heat sink: heat shrink tubing
15) Optical efficiency? Power consumption?
That must have the consumption during the burn-in test, but for the concrete data, we do not
have the calculation.
16) What sets you apart from other factories?s
We started production of this type of 09 lamp manufacturers, an earlier we are manufacturer
of this type lamp, technical experience. We do OEM for Europe and the United States 70
brands, our quality received the affirmation of the industry
!
