ARAI And UN38.3 Certificate Rechargeable Lithium Batteries NCM 15AH Rechargeable Motorcycle Battery
ARAI And UN38.3 Certificate Rechargeable Lithium Batteries NCM 15AH Rechargeable Motorcycle Battery
ARAI And UN38.3 Certificate Rechargeable Lithium Batteries NCM 15AH Rechargeable Motorcycle Battery
ARAI And UN38.3 Certificate Rechargeable Lithium Batteries NCM 15AH Rechargeable Motorcycle Battery
Specifications
Brand Name :
SOUNDON
Model Number :
SEPNi8688190P--3.6V15AH
Certification :
UN38.3, ROHS,MSDS,UL,ARAI
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T or L/ C
Supply Ability :
20000pcs/day
Delivery Time :
25-30 days
Packaging Details :
PVC case with inner ,carton box outside
Nominal Voltage :
3.6V
Nonimal capacity :
15Ah
Max. Peak Charging Current :
1.5C (15℃～45℃) ≤30S
Max Peak discharing current :
3C (15℃～45℃) ≤30S
Max constant discharging current :
1C (-20℃～+45℃)
Operating Temp :
Charging: -10℃-55℃ , Discharging: -20℃-55℃
Batery cell material :
NCM
Energy Density :
200wh/kg
Description

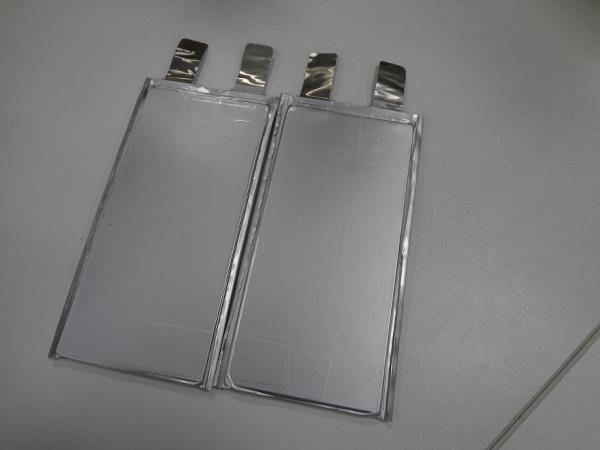

ARAI and UN38.3 Certificate Rechargeble Lithium Ion Batteries NCM 15AH for Electric Vehicles

Specifications

Item

Specification

Nominal Capacity

 15000mAh ,1 C discharging(25±2℃)

Typical Capacity

 15500mAh ,1C discharging(25±2℃)
Nominal Voltage 3.6V
Energy density 200Wh/kg

Charge Ending Voltage

 4.20V

Discharge Ending Voltage

 3.00V

Standard Charging Method

 25±2℃ 0.5C constant current charge to 4.2V, then constant voltage 4.2V charge till charged current declines to ≤ 0.05C

Max. Constant Charging Current

 1C (15℃～+45℃)

Max. Pulse Charging Current

 1.5C (15℃～45℃) ≤30S

Standard Discharging current

25±2℃

0.5C constant current discharge to 3.0V.

Max. Constant Discharging Current

 1C (-20℃～+45℃)

Max. Pulse Discharging Current

 3C (15℃～45℃) ≤30S

Operating environment

Charging: -10℃-55℃, max.90%RH

Discharging: -20℃-55℃, max.90%RH

Impedance

 ＜3.5 mΩ

Battery module list

Battery cell MODE SEPNi8688190P
Battery cell capacity Ah 15Ah
Configuration 4P1S 5P1S
Dimension mm
(H*W*T)		 232.5*97*37 232.5*97*45.3
Module Rated Capacity Ah/Wh 60AH 75AH
Module Rated Voltage V 3.6V 3.6
Module Weight Kg 1.25 1.55
Module Weight Wh/Kg 172 174Wh/kg

1C Charge / Discharge 2500 cycles, Capacity ratio ≥80%


ARAI And UN38.3 Certificate Rechargeable Lithium Batteries NCM 15AH Rechargeable Motorcycle Battery

Discharge curves of DIifferent temperature


ARAI And UN38.3 Certificate Rechargeable Lithium Batteries NCM 15AH Rechargeable Motorcycle Battery

Discharge curves of different currents

ARAI And UN38.3 Certificate Rechargeable Lithium Batteries NCM 15AH Rechargeable Motorcycle Battery

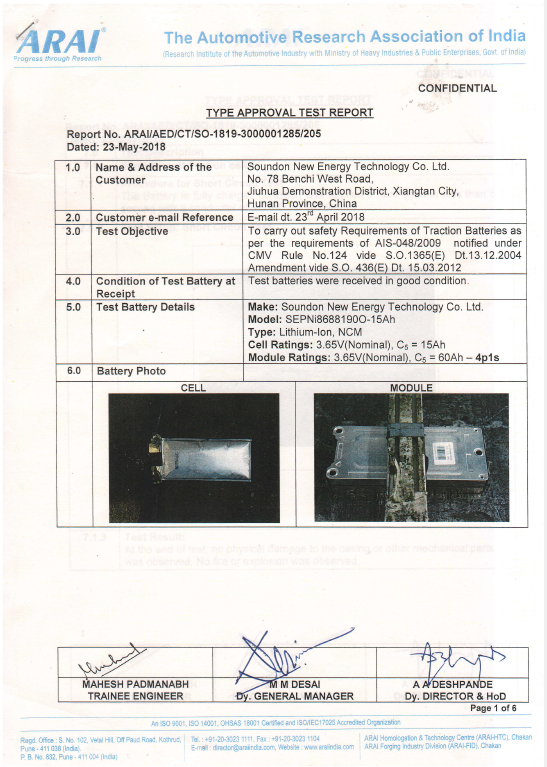

Strict ARAI Certificate for India electric vehicle market

ARAI And UN38.3 Certificate Rechargeable Lithium Batteries NCM 15AH Rechargeable Motorcycle Battery

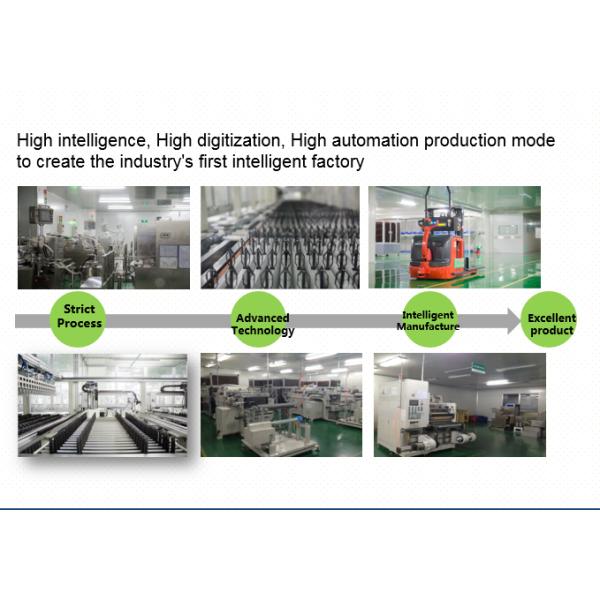

Battery cell intelligent production line

Soundon integrates international and domestic automation and intelligent manufacturing industry resources, and proposes a comprehensive solution for smart factories, At the same time, it makes reasonable planning on the intelligent production management mode, intelligently regeneration and upgrades the automated production line and key equipment, and realizes effective integration of automatic high-flexibility automated assembly production line, charge and discharge test equipment, AGV automatic logistics system, MES system, data acquisition and analysis systems ,reduces costs and increases product profitability.

ARAI And UN38.3 Certificate Rechargeable Lithium Batteries NCM 15AH Rechargeable Motorcycle Battery
