UL 220kwh NMC Battery For Electric Logistic Truck
UL 220kwh NMC Battery For Electric Logistic Truck
UL 220kwh NMC Battery For Electric Logistic Truck
UL 220kwh NMC Battery For Electric Logistic Truck
Specifications
Brand Name :
Soundon
Model Number :
SD-EV-394.2-560
Certification :
CE, MSDS, ROHS,UL
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Supply Ability :
50units / week
Delivery Time :
30 working days after payment
Packaging Details :
wooden package
Voltage range :
394.2V
Total energy :
220kWh
Maximum Continuous Charging Current :
≤350A
Waterproof Grade of Battery Box :
IP66
Cooling mode :
Natural cooling
Description

88.15kWh Electric Truck Battery With High Current Rating And High Energy Density For Heavy Truck

Content Parameter
Voltage 324V---453.6V(394.2V)
Energy(KWh)23±2℃,1/3C 220kWh
Capacity(Ah)23±2℃,1/3C 560Ah
Cell SEPNi8688190P-17.5Ah
Configuration 32P108S
Recommended ambient temperature range(℃) Discharge:-20~55℃,Charge 0~55℃
Environmental Relative Humidity Recommended 5%~95%
Storage temperature

-20～25℃(3-6months,50%SOC)

-20～45℃(1-3months,50%SOC)

-20～60℃(less than 1 month,50%SOC)
Maximum Continuous Discharge Current ≤500A
Maximum Continuous Charging Current ≤350A
Insulation resistance factory test value(Ω) ≥20MΩ
Waterproof Grade of Battery Box IP66
Cooling mode Natural cooling


Battery Model

Cell Model 8688190-17.5Ah
Model Type 5P1S
Model Size (H*W*T) 242× 97× 45.3(mm)

Rated Capacity Module

 87.5Ah

Nominal Voltage Module

 3.65V
Module Weight ≈1.51Kg
The Module Of Energy Density 211.5Wh/kg

Battery Module picture

UL 220kwh NMC Battery For Electric Logistic Truck


Battery cell parameters

Capacity voltage: 3.6V17.5Ah 1C discharging (25±2 degree)

Charging end of voltage :4.2V

Standard charging and discharging current :0.5C

max continuous charge and discharge current :1C

max pluse charging current :1.5C(15-45 degree) < 30S

max pluse discharging current :3C (15-45 degree) < 30S

Working temperature : Charging:-10~45 degree

Discharging :-20~55 degree

Battery cell with UL certificate

UL 220kwh NMC Battery For Electric Logistic Truck

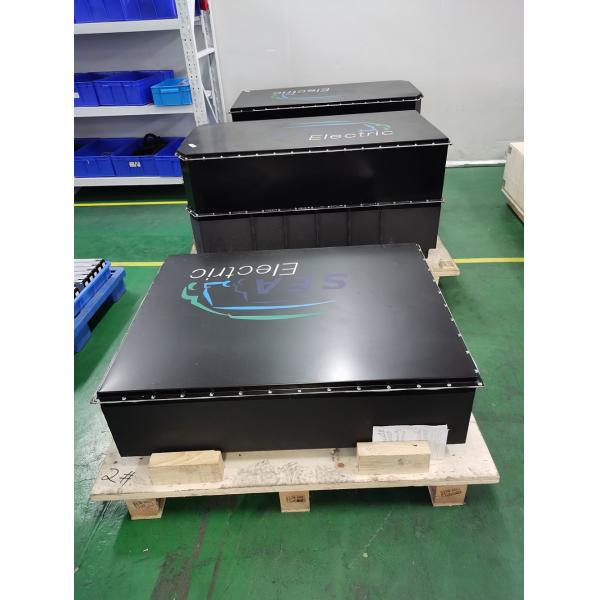

BATTERY PACK

UL 220kwh NMC Battery For Electric Logistic Truck

Electric heavy truck

UL 220kwh NMC Battery For Electric Logistic Truck
