IP66 103Kwh Electric Vehicle Battery 15P108S For Truck
IP66 103Kwh Electric Vehicle Battery 15P108S For Truck
IP66 103Kwh Electric Vehicle Battery 15P108S For Truck
IP66 103Kwh Electric Vehicle Battery 15P108S For Truck
Specifications
Brand Name :
Soundon
Model Number :
SD-EV-394.2-262.5
Certification :
CE, MSDS, ROHS,UL
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Supply Ability :
50units / week
Delivery Time :
30 working days after payment
Packaging Details :
wooden package
Voltage range :
394.2V
Total energy :
103.4kWh
Maximum Continuous Charging Current :
≤262.5A
Waterproof Grade of Battery Box :
IP66
Cooling Method :
Natural cooling
Model :
SD-EV-394.2-262.5
Description

103kwh Electric Vehicle Battery With UL Certificated And High Energy Dendity For Heavy Truck,Logistic Truck,

Content Parameter
Voltage 324V---453.6V(335.8V)
Energy(KWh)23±2℃,1/3C 103.4kWh
Capacity(Ah)23±2℃,1/3C 262.5Ah
Cell SEPNi8688190P-17.5Ah
Configuration 15P108S
Recommended ambient temperature range(℃) Discharge-20~55℃,Charge 0~55℃
Environmental Relative Humidity Recommended 5%~95%
Storage temperature

-20～25℃(3-6months,50%SOC)

-20～45℃(1-3months,50%SOC)

-20～60℃(less than 1 month,50%SOC)
Maximum Continuous Discharge Current ≤262.5A
Maximum Continuous Charging Current ≤262.5A
Insulation resistance factory test value(Ω) ≥20MΩ
Waterproof Grade of Battery Box IP66
Cooling mode Natural cooling


Battery Model

Cell Model 8688190-17.5Ah
Model Type 5P1S
Model Size (H*W*T) 242× 97× 45.3(mm)

Rated Capacity Module

 87.5Ah

Nominal Voltage Module

 3.65V
Module Weight ≈1.51Kg
The Module Of Energy Density 211.5Wh/kg

Battery Module picture

IP66 103Kwh Electric Vehicle Battery 15P108S For Truck

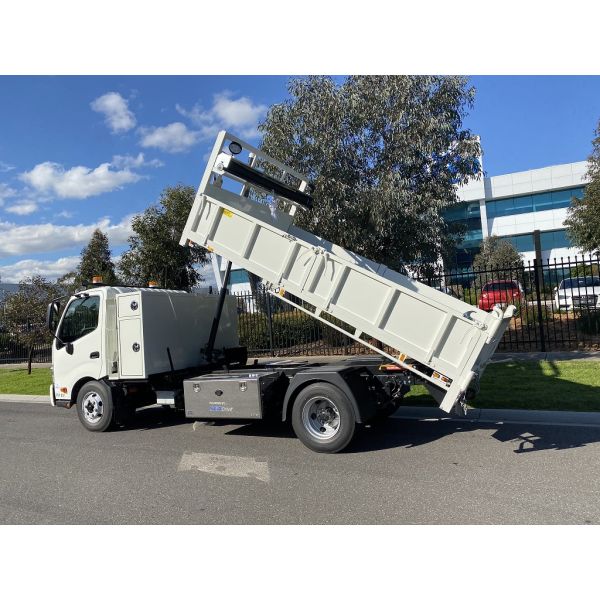

Application

electric truck ,delivery truck ,heavey duty fleets

IP66 103Kwh Electric Vehicle Battery 15P108S For Truck


Battery cell parameters

Capacity voltage: 3.6V17.5Ah 1C discharging (25±2 degree)

Charging end of voltage :4.2V

Standard charging and discharging current :0.5C

max continuous charge and discharge current :1C

max pluse charging current :1.5C(15-45 degree) < 30S

max pluse discharging current :3C (15-45 degree) < 30S

Working temperature : Charging:-10~45 degree

Discharging :-20~55 degree

Battery cell with UL certificate

IP66 103Kwh Electric Vehicle Battery 15P108S For Truck
