Emergency Power Supply 38.4kwh Total Power Ess Battery with and 10A Charge Current
Emergency Power Supply 38.4kwh Total Power Ess Battery with and 10A Charge Current
Emergency Power Supply 38.4kwh Total Power Ess Battery with and 10A Charge Current
Emergency Power Supply 38.4kwh Total Power Ess Battery with and 10A Charge Current
Specifications
Model NO. :
ES-001-192V200Ah-01
Charge Current :
10A
Short Circuit :
Turn off
Transport Package :
Carton
Specification :
L≤ 482mm, W≤ 400mm, H≤ 133mm
Trademark :
Soundon
Origin :
Hunan China
HS Code :
8507600090
Supply Ability :
50000pieces/Year
Weight :
198kg
Warranty :
10 Years
Cycle Life :
6000 Cycles
Nominal Capacity :
38.4kwh
Output Voltage Range :
168~219VDC
Max Output Current :
120A
Customization :
Available | Customized Request
Description
Emergency Power Supply 38.4kwh Total Power Ess Battery with and 10A Charge CurrentSoundon New Energy is invested by Sound Group and Hunan Chasing Financial. It's an enterprise engage in technology innovation, product design and marketing for battery cathode material and high capacity lithium-ion battery. Our products are widely used in public lives, military affairs, aviation and transportation, energy, communication and information etc. Soundon has lithium-ion cathode material department, lithium-ion battery department and electric vehicle department, each department is in independent operation.
Soundon New Energy has the ability of production 50,000 tons NCM&LiFePO4 battery Cathode material, 6 GWh high capacity li-ion battery every year.

Product Description

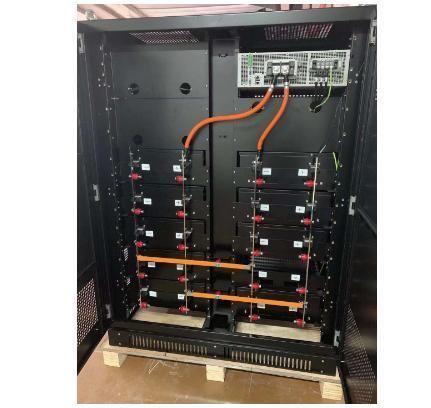

38.4Kwh ESS Battery With IP20 Grade For Emergency Power Supply,UPS

Battery pack power supply parameter

Battery system model ES-001-192V200Ah-01
Battery Capacity 38.4KWh
Input input voltage range 210~219Vdc
Max charge current 30A
battery Output Output Voltage Range 168~219Vdc
Discharge protection Voltage 168Vdc
Max output current 120A
Over current protection ≥80A
short circuit Turn off
Temperture Protection Charge high Temperature alarm 50ºC
Charge high Temperature Protection 60ºC
Charge Low Temperature alarm 0ºC
Charge Low Temperature Protection -5ºC
DisCharge high Temperature alarm 55ºC
DisCharge high Temperature Protection 65ºC
Discharge low temperaure protection -10ºC
BMS Balance fuction yes
Voltage acquisition accuracy ±2mV
Protection overvoltage ,overcurrent
others IP grade 20
working Enviromental Temperature 0~45ºC
Working enviromental humidty 10%~90%
Altitudy <2000m

UPS BATTERY

1. Integrated , high integration, easy to design, construction, commissioning and operation and maintenance;

2. Modular construction, easy using, quickly installation , convenient operation and maintenance;

3. Intelligent monitoring, real-time online, intelligent monitoring and early warning, the system is safe and reliable;

4. Standardized expansion, strong scalability, can be combined with standard modules to expand the capacity of different products;

Application :

New energy generation, small micro-grid, industrial and commercial energy storage and other fields, and can achieve "peak load filling" and "emergency response." "Safety" and so on .

ESS PRODUCT LIST

Model Voltage (V) Capacity (Ah) Length(mm) Width (mm) Thickness (mm) Applications
ES-13-1230-03 12 30 174 166 124 Solar street light
ES-14-12100 12 100 330 200 210 Back up power supply
ES-002-2450- 24 50 690 500 50 Solar street light Storage
ES-003-2480-01 24 80 327 306 140 Solar street light Storage
SDDX-48V10Ah(1U) 48 10 440 400 44 Telecom back up power
SDDX-48V20Ah(2U) 48 10 440 400 88 Telecom back up power
ES-002-4850-01(3U) 48 50 440 400 133 Telecom back up power
ES-001-4860-001 48 60 470 135 300 UPS power bank
SDDX-48V75Ah(4U) 48 75 440 400 177.6 Telecom back up power
ES-005-48V100Ah-02 48 100 482 400 222 Telecom back up power
ES-001-48160-001 48 160 671 216 314 Home energy storage system
ES-002-48200-01 48 200 1300 428 136 Telecom Base Station
ES-008-48V300AH-01 48 300 800 460 290 Back up power supply
ES-002-48600 48 600 2000 700 600 solar electric system
ES-002-9610-01(1U) 96 10 400 428 89 Telecom back up power
ES-SC-220-0200-A 220 200 800 600 2000 Power Station Supply
ES-SC-220-400-A 220 400 600 800 2200 Power Station Supply
ES-001-640280-01 640 280 600 4800 2000 Intelligent building power supply
ES-001-729420-01 729 420 2340 550 210 Solar energy storage charge station

Soundon New Energy Introduction

Soundon New Energy is invested by Sound Group and stock jointed by Sound Environment(SZ000826). It's an enterprise engage in technology innovation, product design and marketing for battery cathode material and high capacity lithium-ion battery.

Our products are widely used in public lives, military affairs, aviation and transportation, energy, communication and information etc. Soundon has lithium-ion cathode material department, lithium-ion battery department and electric vehicle department, each department is in independent operation.

Soundon New Energy has the ability of production 30,000 tons NCM&LIFEPO4 battery Cathode material , 18Gwh high capacity li-ion battery every year.

Soundon Industrial park

Soundon New Energy industrial park now covers 200,000 ,with R&D building 100,000 . We have completely automatic product lines for li-ion batteries, and all the equipment are provided by the world famous suppliers. Soundon has passed ISO9000-2008 certification and TS16949.
