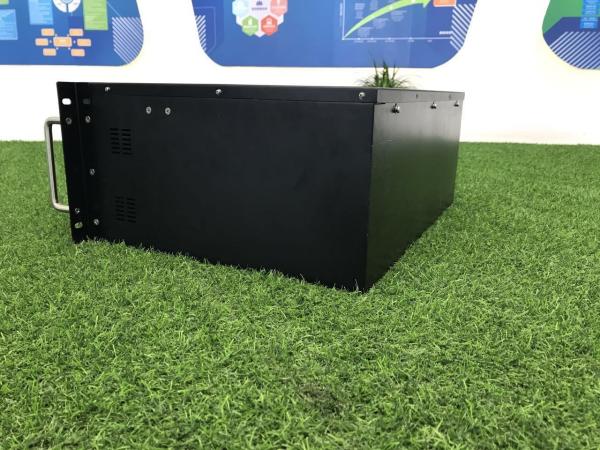

SD-ESS-48200 48V 200ah Off Grid Ess Battery with Longer Cyclelife and Towerships UPS
SD-ESS-48200 48V 200ah Off Grid Ess Battery with Longer Cyclelife and Towerships UPS
SD-ESS-48200 48V 200ah Off Grid Ess Battery with Longer Cyclelife and Towerships UPS
SD-ESS-48200 48V 200ah Off Grid Ess Battery with Longer Cyclelife and Towerships UPS
SD-ESS-48200 48V 200ah Off Grid Ess Battery with Longer Cyclelife and Towerships UPS
SD-ESS-48200 48V 200ah Off Grid Ess Battery with Longer Cyclelife and Towerships UPS
SD-ESS-48200 48V 200ah Off Grid Ess Battery with Longer Cyclelife and Towerships UPS
SD-ESS-48200 48V 200ah Off Grid Ess Battery with Longer Cyclelife and Towerships UPS
SD-ESS-48200 48V 200ah Off Grid Ess Battery with Longer Cyclelife and Towerships UPS
SD-ESS-48200 48V 200ah Off Grid Ess Battery with Longer Cyclelife and Towerships UPS
SD-ESS-48200 48V 200ah Off Grid Ess Battery with Longer Cyclelife and Towerships UPS
SD-ESS-48200 48V 200ah Off Grid Ess Battery with Longer Cyclelife and Towerships UPS
Specifications
Model NO. :
SD-ESS-48200
Voltage Range :
176VAC-280VAC
High Light :
High Power Battery Pack, UPS Power Battery
Transport Package :
Carton
Specification :
636*664*165mm
Trademark :
Soundon
Origin :
Hunan China
HS Code :
8507600090
Supply Ability :
50000pieces/Year
Weight :
120kg
Warranty :
10 Years
Cycle Life :
6000 Cycles
Nominal Capacity :
9.6kwh
Storage Temperature(ºC) :
-20ºC~+35ºC
Discharge Cut off :
43.2V
Customization :
Available | Customized Request
Description
SD-ESS-48200 48V 200ah Off Grid Ess Battery with Longer Cyclelife and Towerships UPSSoundon New Energy is invested by Sound Group and Hunan Chasing Financial. It's an enterprise engage in technology innovation, product design and marketing for battery cathode material and high capacity lithium-ion battery. Our products are widely used in public lives, military affairs, aviation and transportation, energy, communication and information etc. Soundon has lithium-ion cathode material department, lithium-ion battery department and electric vehicle department, each department is in independent operation.
Soundon New Energy has the ability of production 50,000 tons NCM&LiFePO4 battery Cathode material, 6 GWh high capacity li-ion battery every year.
  • DETAIL INFORMATION
  • PRODUCT DESCRIPTION

Detail Information
Nominal Voltage ,capacity: 48V200Ah Size: 636*664*165mm
Working Voltage: 43.2~58.4V DC Discharge Cut Off Voltage:: 43.2V
Voltage Rang: 176VAC-280VAC Can Interface: Can Open Interface
Impedance: ≤30m Life Span: >6000 Cycles
High Light:

ups power battery

,

high capacity deep cycle battery

Product Description

Off-Grid 48V200Ah ESS Battery For Towerships ,Data Centers

Item description Parameters remarks
cell Rated Voltage 3.2V
Capacity Rated Capacity:20Ah

Standard Discharge Current: 0.5C

Discharge Cut off Voltage: 2.0V
Min Capacity:19.6Ah
Cut off charge voltage 3.65V±0.03V
Impedance ≤3.0mΩ

battery pack

 Compound mode 16 series 10 Parallel
Capacity Rated Capacity:200Ah

Standard Discharge Current: 0.5C

Discharge Cut off Voltage: 43.2V
Min Capacity:196Ah
Rated Voltage Average Voltage 51.2V
Operating voltage 43.2~58.4V DC

Charge conditions

Standard charge current:0.2C
Rapid Charge current:0.5C
Instantaneous Charge current:1.0C

Discharge conditions

 Standard discharge current:0.5C
Rapid discharge current:1.0C
Instantaneous discharge current:3.0C
Impedance ≤30mΩ
Working Temperature Charge (0~40)ºC 60±25% humidity
Discharge (-20~60)ºC
lifetime ≥6000 times 90%DOD
Communication Port CAN port

Storage Temperature

<=1 month

 -10~45ºC

Relative humidity≤90%

What is the lithium ion energy storage ?

1. The application of Lithium Ion batteries for Energy Storage is planned to revolutionize the Off Grid and On Grid infrastructure by utilizing the renewable energy sources like Solar and Wind Power optimally.

2. The higher performance characteristics of Li-Ion, also makes possible an unprecedented integration level in the deployment of Energy Storage Solutions.

The advantage of energy storage

The energy storage can well acts as a replacement to other power back up solutions such as Diesel Generator, Lead Acid Battery etc.

The solution has significant benefits over existing energy storage solution in terms of superior characteristics, high energy density, extreme operating temperature range, less weight & size, longer life cycles, high charging and discharging rate, environmental friendly and low maintenance.

Why we need to use off-grid power supply

The solution is a major break-through in benefitting society by
- Eliminating and reducing diesel consumption across various sectors
- Making renewable energy predictable
- Enabling utilities in meeting peak power demand

Applications :

  • Residential Apartments / Villas,Townships, Villages and Residential Societies
  • Showrooms, Banks
  • Restaurants / Clubs / Spas / Breweries
  • Small Offices
  • Educational Institutions
  • Government Buildings
  • Commercial Establishments
  • Specialty Clinics / Pathology Labs
  • Recreation Facilities / Bowling Alleys
  • Cable Operators

  • Hospitality - Hotels, Restaurants, Pubs, Bars, Discotheques

    Cold Chain and Data Centers
    Telecommunication base station
