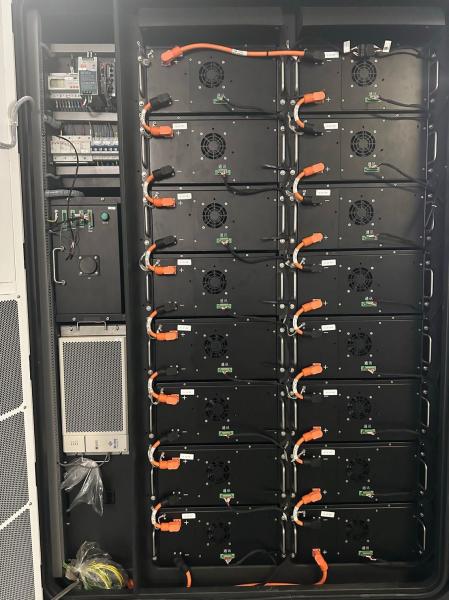

Outdoor ESS cabinet Air cooled 229kwh LFP large capacaity for park energy storage and back up power supply
Outdoor ESS cabinet Air cooled 229kwh LFP large capacaity for park energy storage and back up power supply
Outdoor ESS cabinet Air cooled 229kwh LFP large capacaity for park energy storage and back up power supply
Outdoor ESS cabinet Air cooled 229kwh LFP large capacaity for park energy storage and back up power supply
Outdoor ESS cabinet Air cooled 229kwh LFP large capacaity for park energy storage and back up power supply
Outdoor ESS cabinet Air cooled 229kwh LFP large capacaity for park energy storage and back up power supply
Outdoor ESS cabinet Air cooled 229kwh LFP large capacaity for park energy storage and back up power supply
Outdoor ESS cabinet Air cooled 229kwh LFP large capacaity for park energy storage and back up power supply
Outdoor ESS cabinet Air cooled 229kwh LFP large capacaity for park energy storage and back up power supply
Outdoor ESS cabinet Air cooled 229kwh LFP large capacaity for park energy storage and back up power supply
Outdoor ESS cabinet Air cooled 229kwh LFP large capacaity for park energy storage and back up power supply
Outdoor ESS cabinet Air cooled 229kwh LFP large capacaity for park energy storage and back up power supply
Specifications
Brand Name :
Wincle
Model Number :
star 229
Certification :
MSDS, UN38.3, CE, CB, IEC 62619
Place of Origin :
China
MOQ :
1
Delivery Time :
25-30 working days
Model NO. :
SD-100/200
Unbalanced Load :
100%
Battery Type :
LiFePO4
Cooling Method :
Air Cooling
Noise :
<65 dB 1m From The System
Specification :
1700*2300*1250 mm
Weight :
2200kg
Warranty :
10 Years
Nominal Capacity :
229kwh
Rated Power :
100kw
Nominal Voltage :
380 VAC \ Three-Phase Four-Wire
Max Apparent Power :
110 Kw
Description
Outdoor ESS cabinet Air cooled 229kwh LFP large capacaity for park energy storage and back up power supply
Product Spec
parameter
AC parameters
Model SD-100 / 200
Rated Capacity 200 kWh
rated power 1 00 kW
AC access method Three-phase four-wire (three-phase three-wire)
isolation method /
Reactive range Power factor -0.95 ~ +0.95 adjustable
Grid-connected operating parameters
Rated grid voltage 380V (AC315V/AC290V)
Allowable grid voltage ±15%
Rated grid frequency 50Hz
Allowable grid frequency 47.5Hz～51.5Hz
Total Current Distortion Rate ≤5%
power factor ≥0.98 (rated power)
Charge and discharge conversion time ≤100ms
and off-grid switching time ≤50ms
Off-grid operating parameters
Rated output voltage AC380V/(AC315V/AC290V)
Output voltage deviation AC380V(AC315V/AC290V)±5%
Output voltage unbalance ≤5%
Output voltage distortion ≤3% (linear load)
Rated output frequency 49.5Hz～51.5Hz
System parameters
system efficiency Power efficiency ≥ 95%, energy efficiency ≥ 85%
noise <65 dB (at 1 m from the system)
degree of protection IP54
Allowable operating ambient temperature -20℃～+55℃
cooling method Forced air cooling
allowable relative humidity 0～95% non-condensing
size W1500*D1300*2300
surveillance system
Communication Interface ethernet
communication protocol IEC60870-5-104, Modbus tcp, IEC61850-9-2+goose
Features
  • Integrated integration, high integration, easy design, construction, commissioning and operation and maintenance;
  • Modular construction, plug and play, short installation period, convenient operation and maintenance;
  • Intelligent monitoring, real-time online, intelligent monitoring and early warning, the system is safe and reliable;
  • Standardized expansion, strong scalability, can be combined with standard modules to expand products with different capacities according to needs;
Application Cases

This series is a cabinet power station energy storage system mainly for the following application fields:

  • Factories, enterprises, business centers, etc. with fluctuating loads
  • Island microgrid;
  • Power stations with access to new energy or distributed energy;
  • Outdoor temporary large load center;
  • Emergency mobile power station.
Back up power supply for Waterworks plant
Outdoor ESS cabinet Air cooled 229kwh LFP large capacaity for park energy storage and back up power supply
Peak shaving and valley Filling For Copper Plant
Outdoor ESS cabinet Air cooled 229kwh LFP large capacaity for park energy storage and back up power supply

Company profile


Soundon New Energy is invested by Sound Group and Hunan Chasing Financial. It's an enterprise engage in technology innovation, product design and marketing for battery cathode material and high capacity lithium-ion battery. Our products are widely used in public lives, military affairs, aviation and transportation, energy, communication and information etc. Soundon has lithium-ion cathode material department, lithium-ion battery department and electric vehicle department, each department is in independent operation.
Soundon New Energy has the ability of production 50,000 tons NCM&LiFePO4 battery Cathode material, 6 GWh high capacity li-ion battery every year.
