Hydraulic Scissor Underground Car Parking Systems 5000Kg
Hydraulic Scissor Underground Car Parking Systems 5000Kg
Specifications
Brand Name :
ChangYue
Model Number :
PJS
Certification :
CE ISO9001
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
to be negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 Unit per month
Delivery Time :
30-60 days
Packaging Details :
Standard export packing
Type :
scissor parking system
Material :
Steel
Dive mode :
Hydraulic
Outer size :
5640 x 2740 x 2745 mm or customized
Loading Capacity :
5000kg
Motor power :
3.7kW
Mode of control :
Manual
Lift time :
50S
Electricity :
220 V/380 V, 50 Hz/60 Hz, 1 Ph / 3 Ph
Description

Characteristics

1. Integrated Hydraulic pumping station save space and reduce the leakage of oil.
2. High quality of bearings offers long service life.
3. Manual oil drain valve to lower platform manually when power off.
4. Operation electric box with emergency switch and Dead Man push buttons with Switch Key.
5. Hydraulic piping system: The entire system of fluid conductors such as hose, pipe, tubing.
6. Base frame with U channels to guide sliding blocks / rollers during raising up & Lowering down.
Hose burst/ rupture valve located at hydraulic cylinder to prevent back flow of pressurized oil in the system after the valve.

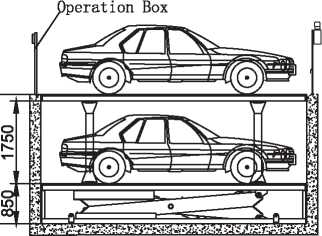

Drawing

Hydraulic Scissor Underground Car Parking Systems 5000Kg

Hydraulic Scissor Underground Car Parking Systems 5000Kg

Hydraulic Scissor Underground Car Parking Systems 5000Kg


Technical Parameters

Model
Lifting Capacity 5000 KG 10000 kg
Net Lifting Height 2400 mm 2400 mm
Self Closed Height 700 ~ 800 mm 700~800 mm
Hydraulic cylinders 4 pcs high precision wear-resisting cylinder 4 pcs φ100 high precision wear-resisting cylinders
Oil Seal Aston, Italy Aston, Italy
Platform Size 5600*2700mm 5600*2700mm
Operation method push buttons push buttons
Hydraulic hose High pressure hose with double expanded metal protected High pressure hose with double expanded metal protected
Safety device Limit switches ,hose burst/ rupture valve Limit switches ,hose burst/ rupture valve
Scissor structure Tubes 200*300*10 mm 200*300*10 mm
Surface treatment High-grade anti-corrosion painting High-grade anti-corrosion painting
Voltage / Motor Capacity of power unit 380v/50 Hz/ 3Ph/5.5kw 380v/50 Hz/ 3Ph/7.5kw


Project case

Hydraulic Scissor Underground Car Parking Systems 5000Kg
