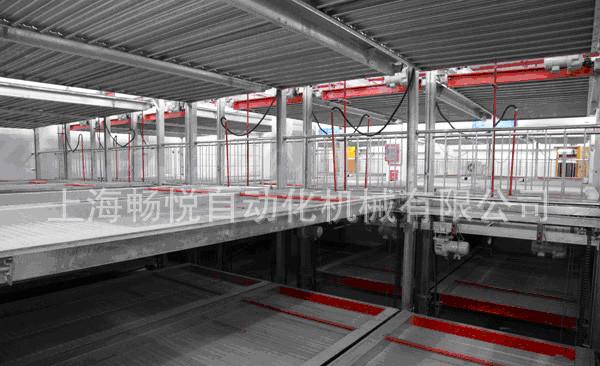

3 Layers Hydraulic Car Parking System
3 Layers Hydraulic Car Parking System
3 Layers Hydraulic Car Parking System
3 Layers Hydraulic Car Parking System
Specifications
Brand Name :
ChangYue
Model Number :
PSH
Certification :
CE ISO9001
Place of Origin :
Shanghai, China
MOQ :
5 piece
Price :
to be negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 Unit per month
Delivery Time :
30-60 days
Packaging Details :
Standard export packing
Type :
PSH
Material :
Steel
Dive mode :
Hydraulic
Car size (LxWxH) :
5000*1850*2050(SUV)/1550(sedan)mm
Loading Capacity :
2000-2350kg
Lifting speed: :
3~6m/min
Sliding motor power :
0.2kW
Operation Mode :
IC card reading / Manual button with keyboard
Power supply :
3 phases 5 wires, 380V, 50HZ
Description

PSH(-1+2) Hydraulic Pit Puzzle Parking System​​

It is aimed for optimum use of space in basement type parking. It is hydraulically designed. Vertical levels up to 2 levels above ground

and one level below ground. We have specially designed to pit puzzle system. This system is use to save the space and utilize the space

to park more vehicle in a space of one vehicle.

Work Principle

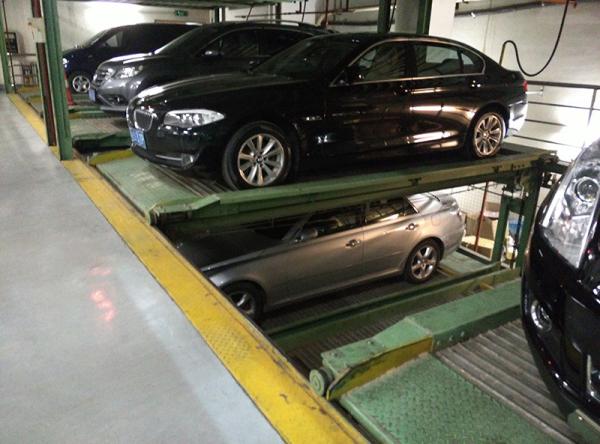

This system is designed with 3 levels, 1 in the pit, 2 on the ground, each column total 3 cars can lift up and down freely. There is 1 spare car on the ground level as an exchange space. The ground level car can slide left and right for upper car fall down. The ground car can go in and out freely, the pit car can lift up when the ground car slide to be a spare space, and go in and out then. The top car can fall down when the ground car slide to have the spare space. The ground level space has big pallets covering the pit area.

Characteristics
Low area coverage and high usage rate of space; The levels and columns will be added to raise the number of cars according to the customer's requirements; It may be designed with full-closed style to adjust the surrounding environment; It operates steadily without noise and with fast operating speed and short parking and releasing time; Multi-ways of safety protection and series of safety protection devices for anti-dropping, anti-crashing and anti-overloading.

3 Layers Hydraulic Car Parking System

Technical Parameters

Item Parameters
Model PSH(-1+2)
Levels of system 3
Spaces Based on requirements
Size of car (L*W*H) 5000*1850*1550mm
5000*1850*2050mm
Weight of car 2000kg
Motor power and speed Lift: 5.5KW, 12m/min
Slide: 0.2kw, 8m/min
Safeguard devices Hydraulic whole protection and anti-fall frame
Modes of operation IC card reading / Manual button with keyboard
Controller PLC
Warning devices Sound, light, electricity
Malfunction indication Fault diagnosis by computer, liquid crystal display
Frame composition Columns and beams are made of H type steel, Channel steel, angle steel and square pipes;
Parts appearance treatment Galvanized treatment and high-grade anti-corrosion painting
Parking way Forward in, Back out
Electricity 3 phases 5 wires, 380V, 50HZ

3 Layers Hydraulic Car Parking System
