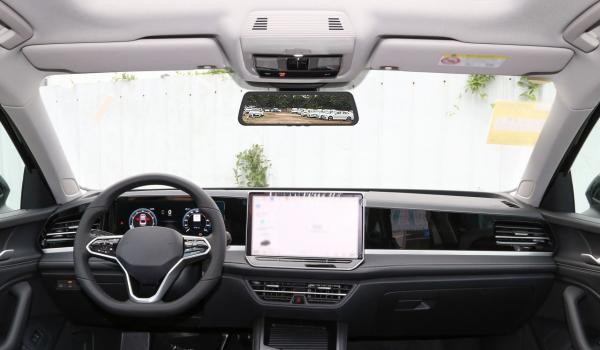

For Volkswagen Magotan Dual recording touch specific electronic rearview mirror recorder for special vehicles
Description:
Electronic rearview mirror is a device that displays the rear view of a vehicle through a camera and a display screen. Unlike traditional optical rearview mirrors, electronic rearview mirrors install a camera in a position opposite to the optical rearview mirror, transmitting the captured image to the display screen, thereby providing a wider rear view.
1. Provide a wider rear view: Due to the use of cameras and display screens in electronic rearview mirrors, it is easy to provide a wider rear view than traditional optical rearview mirrors, making it easier to observe traffic conditions behind the vehicle.
2. Eliminating blind spots: Electronic rearview mirrors can eliminate blind spots behind the vehicle, improving driving safety.
3. Strong adaptability: Electronic rearview mirrors can adapt to different driving scenarios, such as night, rainy, foggy, etc., thereby improving driving comfort and safety.
4. Real time monitoring: The electronic rearview mirror can monitor the traffic situation behind the vehicle in real time, thus better grasping the situation behind the vehicle.
Product Features Introduction
1. 9.35-inch IPS screen + capacitive 5-point touch.
2. High-definition dual 1080p streaming media driving record.
3. Low-light night vision, dedicated to special cars.
4. Time-lapse video + low-light night vision.
5. Pedestrian monitoring.
6. Parking monitoring.
7. The high-definition rear road can support up to 20 meters, which is suitable for installation of any model.
8. Support, Simplified Chinese, Traditional Chinese, English.
Product detailed parameters
project | parameter | |||
Master control | AC5401B | |||
SDRAM/DDR | DDR2 64MB | |||
Front camera | AHD1080p(1920X1080)@30fps F2.0/ H.FOV110°/ V.FOV60°/ D.FOV150°+F9 | |||
Rear camera | AHD1080p(1920X1080)@30fps F2.0/ H.FOV90°/ V.FOV60°/ D.FOV140°/0.1Lux | |||
MIC | Single microphone with echo and noise cancellation | |||
loudspeaker | Built-in 4Ω/2W | |||
G_sensor | It supports automatic recording of collision and dormant parking detection | |||
TF memory card holder | It is used to store dash cam video, and supports 32GB Class10TF card | |||
power supply | With over-voltage protection, over-current protection, low-voltage protection, | |||
Operating current | ≤1.0A@5V | |||
Standby current | ≤2.3mA | |||
Supply voltage | B+:+12V,ACC:+12V,GND | |||
Operating temperature | -20℃ ~ +70℃ |
Suitable vehicle models
2025 | Shared 280TSI DSG Comfort Model |
330TSI DSG Luxury Edition | |
2024 | 280TSI DSG Comfort Model |
300TSI DSG Premium Edition | |
300TSI DSG Premium Edition Prominent Package | |
Shared 330TSI DSG Luxury Edition | |
380TSI DSG | |
380TSI DSG Premium Edition Big Mai Bag | |
380TSI DSG Ultimate Edition |
Field of view of electronic rearview mirror
The field of view of traditional physical rearview mirrors is 300%
and a larger field of view can enhance driving safety
Resolve rear seat obstruction
1080P high-definition dual recording before and after, recording the beautiful scenery of the journey
The newly upgraded multi touch screen enables touch control operations for recording start, stop, playback, and other functions, making it more efficient and convenient
One second one shot parking record
In the parked state, the device goes into deep sleep mode and records every second, allowing for the recording of the truth even in the event of an accident!
Safe power management, over-current and over-voltage protection
Simultaneous display of front and rear recording screens
