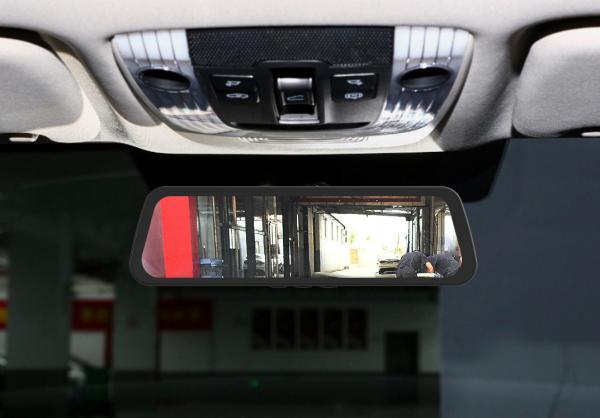

For Kia K5 9.35-inch capacitive touch front and rear dual recording electronic rearview mirror recorder
Description:
The main purpose of electronic rearview mirrors is to provide clearer and safer visibility, especially in harsh weather and low light conditions.
The electronic rearview mirror captures images through a high-definition camera, processes them through a digital visual processing system, and finally presents them on a LCD display. This design enables electronic rearview mirrors to provide a wider and clearer field of view than traditional optical rearview mirrors, especially in low light conditions such as rainy or nighttime, where their effectiveness far exceeds that of traditional rearview mirrors. These features of electronic rearview mirrors enable drivers to observe the situation behind the vehicle more clearly, thereby improving driving safety.
In addition, electronic rearview mirrors also have some advanced functions, such as automatic anti glare and automatic angle adjustment, which further enhance driving safety and comfort. For example, the automatic anti glare function can automatically adjust the reflection angle when the headlights of the rear vehicle shine on the rearview mirror, reducing the impact of glare on the driver. The automatic angle adjustment function can automatically adjust the angle of the rearview mirror according to the driver's needs, providing a wider field of view.
Overall, electronic rearview mirrors not only improve driving safety, but also provide a more comfortable and convenient driving experience through their advanced technology and functions.
Product Features Introduction
1. 9.35-inch IPS screen + capacitive 5-point touch.
2. High-definition dual 1080p streaming media driving record.
3. Low-light night vision, dedicated to special cars.
4. Time-lapse video + low-light night vision.
5. Pedestrian monitoring.
6. Parking monitoring.
7. The high-definition rear road can support up to 20 meters, which is suitable for installation of any model.
8. Support, Simplified Chinese, Traditional Chinese, English.
Product detailed parameters
project | parameter | |||
Master control | AC5401B | |||
SDRAM/DDR | DDR2 64MB | |||
Front camera | AHD1080p(1920X1080)@30fps F2.0/ H.FOV110°/ V.FOV60°/ D.FOV150°+F9 | |||
Rear camera | AHD1080p(1920X1080)@30fps F2.0/ H.FOV90°/ V.FOV60°/ D.FOV140°/0.1Lux | |||
MIC | Single microphone with echo and noise cancellation | |||
loudspeaker | Built-in 4Ω/2W | |||
G_sensor | It supports automatic recording of collision and dormant parking detection | |||
TF memory card holder | It is used to store dash cam video, and supports 32GB Class10TF card | |||
power supply | With over-voltage protection, over-current protection, low-voltage protection, reverse polarity protection, over-temperature protection, anti-surge protection design | |||
Operating current | ≤1.0A@5V | |||
Standby current | ≤2-3mA | |||
Supply voltage | B+:+12V,ACC:+12V,GND | |||
Operating temperature | -20℃ ~ +70℃ |
Suitable vehicle models
Field of view of electronic rearview mirror
The field of view of traditional physical rearview mirrors is 300%
and a larger field of view can enhance driving safety
Resolve rear seat obstruction
1080P high-definition dual recording before and after, recording the beautiful scenery of the journey
The newly upgraded multi touch screen enables touch control operations for recording start, stop, playback, and other functions, making it more efficient and convenient
One second one shot parking record
In the parked state, the device goes into deep sleep mode and records every second, allowing for the recording of the truth even in the event of an accident!
Safe power management, over-current and over-voltage protection
Simultaneous display of front and rear recording screens
