For Buick GL8 CMS Left and Right Touch Control 1080P Dual Video Car Electronic Exterior Rearview Mirror
Electronic rearview mirror (CMS)
Electronic rearview mirror is a system composed of a camera and a monitor, which needs to clearly see the rear and side view of the vehicle within a specified field of view. It is a new type of indirect vision device, referred to as the "camera monitor system" or CMS in the new GB15084 standard.
Compared to traditional optical rearview mirrors, CMS has a smaller size and the rearview lens is replaced by a camera, which then presents the image on the display screen instead of the traditional intuitive lens. The viewing angle is more flexible and the field of view is wider, which can present better performance in environments such as night, rain, snow, and fog.
Product parameters

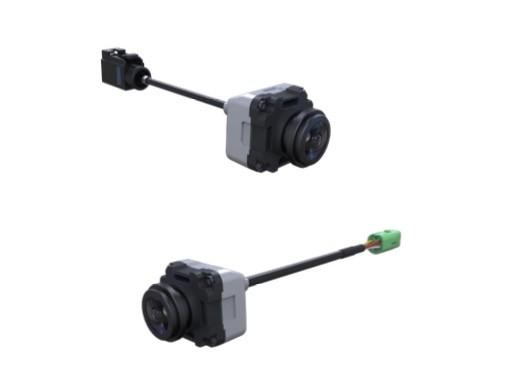

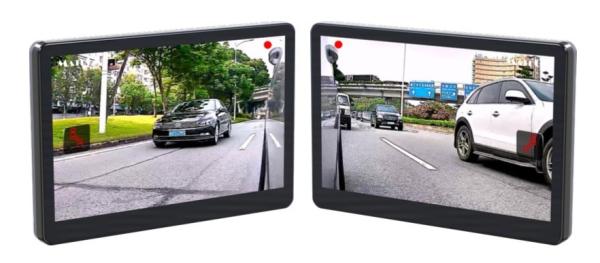

Display assembly | Product dimensions | Appearance size:141.79MM*96.71MM*25.57MM | Camera assembly | Product dimensions | 121.55MM*40.92MM*37.71MM | |
LCM | Screen size: 5.89 | Image sensors | 1/2.8 COMS Image Senror,SONY EXMOR | |||
Resolution: 840*512 | resolution | 1920*1080 | ||||
Refresh rate:60HZ | Frame rate | 50FPS | ||||
brightness:1000CD/ m2 | Optical parameters | FNO:1.7 | ||||
SOC | CPU :ARM Corter A5,Dual-core Processor | FOV:H=91,V=50 | ||||
NPU:1.0TOPS | Lens Structure:6G+1R | |||||
Video input | TVI:1920*1080@50FPS | Wide dynamic range | 120DB | |||
1CH | Minimum illumination | 0.1LUX | ||||
How it works | touch | Operating voltage | 5V | |||
Recorder | Resolution:1920*1080@25FPS | Operating current | 130MA | |||
Video format:H265 | Operating temperature | -30~70centigrade | ||||
storage:Micro SD | Waterproof rating | IP68 | ||||
Start-up time | 6S | |||||
Operating voltage | 9~24V | |||||
Operating current | 1.5A | |||||
Operating temperature | Minus 20-70 degrees Celsius |
Suitable vehicle models
2023 Land Business Cabin Comfort Model
2023 Land Business Class Intelligent Enjoyment Model
2023 Upgraded Land Business Class Luxury Edition
2023 Land Business Class Prestige Edition
2023 Land Business Cabin Smart Prestige Edition
2023 ES Land Zun Comfort Model
2023 Land Business Class Prestige Welfare Edition
2023 ES Land Luxury Edition
2023 ES Land Luxury Edition and Joy Edition
2023 ES Land Luxury Edition
2023 ES Land Luxury Edition and Joy Edition
2023 ES Landlord Flagship
2023 ES Land Zun Smart Flagship
2023 Avenir Seven Seat Gift Edition
2023 Avenir Six Seat Gift
The use value of the product
When changing lanes for overtaking, there is a certain blind spot in the external rearview mirror. If vehicles run parallel in the blind spot, changing lanes can easily cause accidents. The CMS electronic rearview mirror has a larger angle than the physical rearview mirror, which can effectively solve this problem
When reversing into a parking space, it is easy to collide with walls, pillars, adjacent vehicles, etc
On rainy days, especially at night, when there are raindrops on the outer rearview mirror, it is difficult to see clearly when changing lanes and overtaking
The CMS electronic rearview mirror utilizes the advantage of a large angle camera lens to reduce blind spots and improve driving safety. Coupled with a wide dynamic display effect, it can also display clearly at night
