9.35 Inch Touch Electronic Video Rear View Mirror Recorder For Volkswagen Lamando
9.35 Inch Touch Electronic Video Rear View Mirror Recorder For Volkswagen Lamando
9.35 Inch Touch Electronic Video Rear View Mirror Recorder For Volkswagen Lamando
9.35 Inch Touch Electronic Video Rear View Mirror Recorder For Volkswagen Lamando
9.35 Inch Touch Electronic Video Rear View Mirror Recorder For Volkswagen Lamando
9.35 Inch Touch Electronic Video Rear View Mirror Recorder For Volkswagen Lamando
Specifications
Brand Name :
GoodView
Model Number :
i921PRO
Certification :
ccc
Place of Origin :
china
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000 pcs / week
Delivery Time :
30 Work Days
Packaging Details :
Strong Carton Box or as Customer's Require
Screen size :
9.35 inches/high-brightness special-shaped screen
Handling :
5-point capacitive touch
G_sensor :
Collision video, parking detection
Front camera :
1080P@30fps
Rear camera :
1080P@30fps
Installation method :
Special bracket installation
Supply voltage :
B+:+12V,ACC:+12V,GND
Operating current :
≤1.0A
Standby current :
≤2.3mA
Operating temperature :
-20℃ ~ +70℃
Description

For Volkswagen Lamando 9.35-inch touch specific electronic rearview mirror recorder for special vehicles


Description:

The electronic rearview mirror is a high-tech car electronic product used to replace traditional rearview mirrors, consisting of a car display and a matching car camera. Compared to traditional rearview mirrors, electronic rearview mirrors have a larger viewing angle, higher night vision sensitivity, and are easier to adapt to complex weather environments. In addition, they are installed inside the vehicle, providing a larger and safer left and right field of view. It is widely used in large commercial vehicles such as buses, coaches, and trucks to improve the rearview effect and ensure the safety of vehicle operation.


Product Features Introduction

1. 9.35-inch IPS screen + capacitive 5-point touch.

2. High-definition dual 1080p streaming media driving record.

3. Low-light night vision, dedicated to special cars.

4. Time-lapse video + low-light night vision.

5. Pedestrian monitoring.

6. Parking monitoring.

7. The high-definition rear road can support up to 20 meters, which is suitable for installation of any model.

​​8. Support, Simplified Chinese, Traditional Chinese, English.


Product detailed parameters

project parameter
Master control AC5401B
SDRAM/DDR DDR2 64MB
Front camera AHD1080p(1920X1080)@30fps F2.0/ H.FOV110°/ V.FOV60°/ D.FOV150°+F9
Rear camera AHD1080p(1920X1080)@30fps F2.0/ H.FOV90°/ V.FOV60°/ D.FOV140°/0.1Lux
MIC Single microphone with echo and noise cancellation
loudspeaker Built-in 4Ω/2W
G_sensor It supports automatic recording of collision and dormant parking detection
TF memory card holder It is used to store dash cam video, and supports 32GB Class10TF card
power supply

With over-voltage protection, over-current protection, low-voltage protection,
reverse polarity protection, over-temperature protection, anti-surge protection design
Operating current ≤1.0A@5V
Standby current ≤2.3mA
Supply voltage B+:+12V,ACC:+12V,GND
Operating temperature -20℃ ~ +70℃



Suitable vehicle models

2024 200TSI DSG Spicy Edition
280TSI DSG Spicy Edition

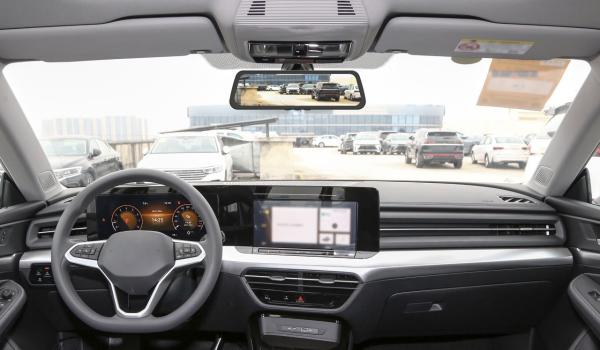

Field of view of electronic rearview mirror

The field of view of traditional physical rearview mirrors is 300%
and a larger field of view can enhance driving safety
9.35 Inch Touch Electronic Video Rear View Mirror Recorder For Volkswagen Lamando


Resolve rear seat obstruction

9.35 Inch Touch Electronic Video Rear View Mirror Recorder For Volkswagen Lamando

1080P high-definition dual recording before and after, recording the beautiful scenery of the journey


9.35 Inch Touch Electronic Video Rear View Mirror Recorder For Volkswagen Lamando


The newly upgraded multi touch screen enables touch control operations for recording start, stop, playback, and other functions, making it more efficient and convenient

9.35 Inch Touch Electronic Video Rear View Mirror Recorder For Volkswagen Lamando



One second one shot parking record

In the parked state, the device goes into deep sleep mode and records every second, allowing for the recording of the truth even in the event of an accident!
Safe power management, over-current and over-voltage protection

9.35 Inch Touch Electronic Video Rear View Mirror Recorder For Volkswagen Lamando

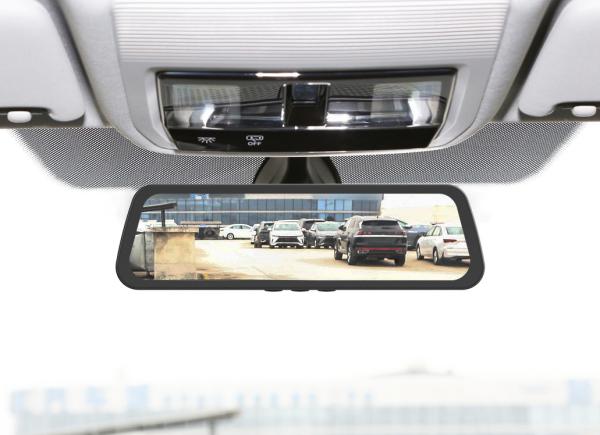

Simultaneous display of front and rear recording screens

9.35 Inch Touch Electronic Video Rear View Mirror Recorder For Volkswagen Lamando
