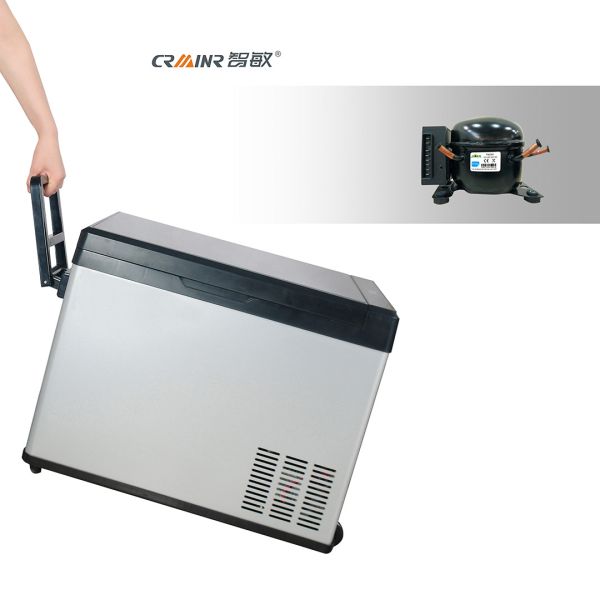

Portable refrigerator car food refrigerator freezer 40L for picnic

Our company brief introduction

Our company is a professional manufacturer of DC inverted frequency compressor, solar refrigerator & freezer, car refrigerator, and so on. Our company integrates with designing, production and trading. With the principle of high start point, high standards, and supper quality, the company has sold its product and been well-known in domestic and oversea market.

Competitive advantages of our company.

1. We have been in the field of compressor cooling for more than 10 years.

2. We provide competitive prices and high quality products, and fast delivery

3. Guarantee 100% detection of all products

4. Good after-sales service.

5. Our products have been exported to Europe, Amazon, Middle East, Africa and other countries

The three voltage parameters as below:

H3 (high): 10.9V (stop) --12.2V (start voltage)
23.8V (stop) --25.2V (start voltage)
H2 (medium): 9.7V (stop) --11.0V (start voltage)
21.5V (stop) --22.9V (start voltage)
H1 (low): 9.6V (stop) --10.9V (start voltage)
21.3V (stop) --22.7V (start voltage)

Operations for LCD touch screen

--ON/OFF button: Connect the refrigerator to the power supply and press the ON/OFF button once, and the display will be on to show the environmental temperature. It is recommended to switch on the cooling after the 3-minute delay protection. Press the ON/OFF button again, the refrigerator will be off.

--After you press ON/OFF button, you can set the temperature range from -25℃ to 20℃. Short press "+" and "-" button, or long press "+" and "-" button to adjust the temperature.

-- Long press SET button for 3 seconds and enter advanced parameter mode:

(1) Voltage protection mode:

The machine has three battery protection functions, which protect the normal operation of the refrigerator and protect the battery of the vehicle. The three functions are H3 (high), H2 (medium) and H1 (low). Short press "+" or "-" button to choose the function. The function is set at "H2" (medium) protection when the refrigerator is finished at the factory.

It is recommended to set the battery protection at H2 (medium) when it is used in the car.

It is recommended to set the battery protection at H2 (medium) or H1 (low) if it is external battery or backup battery.

Because of the difference in voltage output from different vehicle power supply output, if there is voltage protection (display screen shows F1), the battery function could be reduced to a lower one (H3 is adjusted to H2 or H1).

If to use the refrigerator after the car engine runs out of fire, please adjust the battery protection at H3 (high). Otherwise, there may be a situation where the battery power of the car is too much consumed to start the vehicle.

Packing and Transportation

1. We usually ship the goods by sea in full container of 20ft or 40HQ which is considerate for the safety.

2. Our goods are all in cartons with foam protection

3. For sample shipment, we will add the wooden case in case of breakage

Detailed Specification table

FQA

--The refrigerator doesn't work

• Check if the power supply is faulty;

• Check if the power plug is in good connection;

• Check if the fuse is fused;

• Check if the power switch on the operation board is on or not;

• The compressor is during the 3-minute delay protection function.

--The water flow is heard in the refrigerator

• This is the flow of refrigerant inside the refrigerator, which is a normal phenomenon.

-- The system is abnormal

• Check first if the battery voltage is right. If the battery voltage is right, then wait 3 minutes before you switch on the refrigerator. If the system is still abnormal when you restart the machine, then call the after service for help.

--Common temperature setting

This model is available with a trolley handle for easy carry.
