Smoke leak detector for car automotive smoke machine leak detector for auto workshop

Products Description

Automotive Diagnostic Leak Detector CL660 Motorcycle Smoke Leak Detector is a professional automatic Pipe leak detection tool. It will help us quickly and accurately locate leaks on the pipe system, such as:

Product parameter:
Output pressure:35~42Psi
Output flow:4L/Min
Power supply: 12V
Air source: built-in
Test oil capacity:10ML
Dimensions of the Main Unit 198 x 320 x 246mm
Package weight:3.8KG

The Main Function:

Tightness Test : It can test the tightness and leakage of the tested pipeline under system pressure.
Intake System Test: it can test the air tightness and damage degree of the pipes in the intake system.
Exhaust System Test: it can test the air tightness and damage degree of the pipes in the exhaust system.
EVAP System Test: it can test the leakage of fuel evaporation in the EVAP system.

Working principle:

create smoke through the equipment and sent smoke to sealed car pipeline system
(Such as air intake systems, exhaust systems, fuel systems, air conditioning systems, etc.)
Where there is smoke in the pipeline, there is a leak
With smoke detectors to check the car pipeline, will not have impact on the car system

Applicable for:

Gaskets & Fittings, Throttle Shafts, Catalytic Converters, Diaphragms & seats, Head & tail lamp housing, EGR Values, Hoses, Brake Booster, Central Locking System, Door & Windows Seals, Oil Leak... and much more!

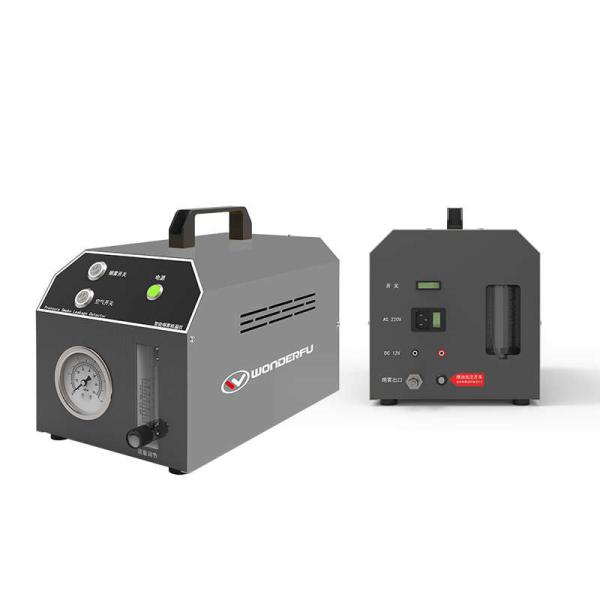

Main Unit Structure :

Hook: To hang the detector when detecting.

Working Indicator: It is lit when the detector works

Power Switch: Power it on, and the detector works

Smoke Output Tube: The smoke outlet which connecting with detection port

Power Clamp: To connect with vehicle battery. The voltage is DC12V.

Maintenance:

With long time high temperature, the smoke and oil will oxidize and deteriorate.

It will infect the service life of smoke generated part, so please change smoke and oil regularly.

1. Before filling fresh oil, please pour out the remaining oil in the detector.


2. When the smoke output has water drops, please replace with fresh oil.


3. Liquid paraffin and baby oil are OK.(Liquid is not included in the package)


Please fill fresh oil with equipped oil bottle.
