Specifications
Brand Name :
ANS
Model Number :
09+ Benz GLK
Place of Origin :
China
MOQ :
20
Price :
To be negotiated
Payment Terms :
L/C, D/P, T/T
Supply Ability :
2000sets per week
Delivery Time :
7-15 days
Packaging Details :
Carton box
MODEL NO. :
TB1162 Line Two
Rated Voltage :
DC 12V
No-load Current :
1.6A±0.3A
Rated Power :
80W
Frequency :
50HZ/60HZ
Rotational Speed :
15±1RPM
Rotation direction of output speed :
Positive/reverse-bidirectional
Noise :
≤60db
Description

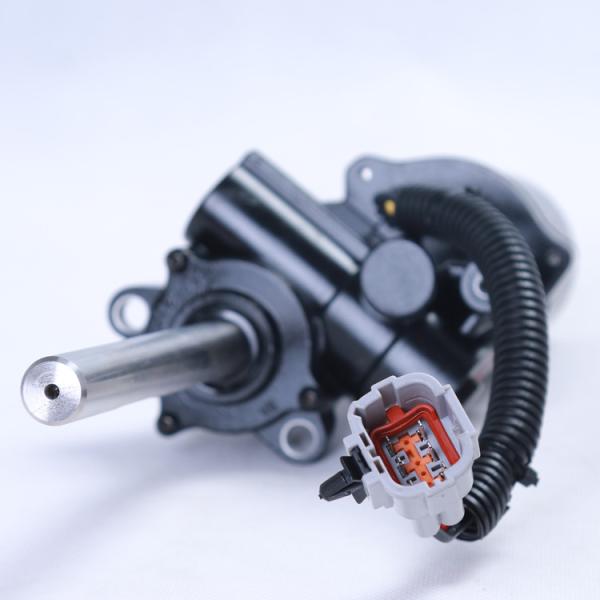

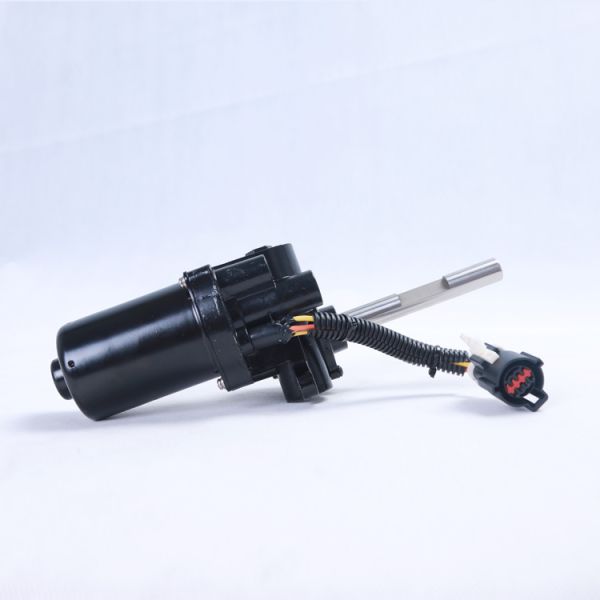

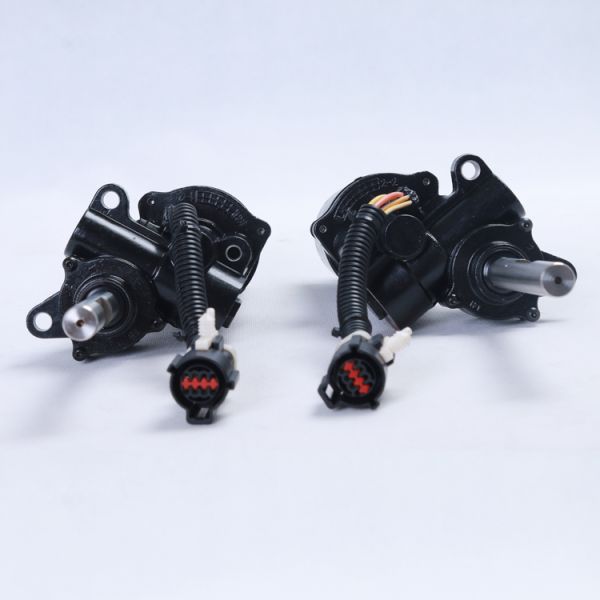

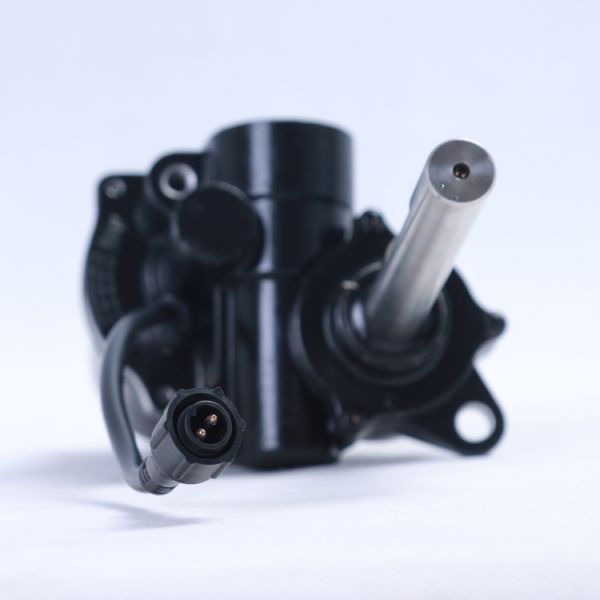

Benz 09+ Benz GLK OBD SIDE STEP MOTOR With Good Price


Car Running Boards Adavantage

1. Using a large motor with a voltage of 12V and a power of 80W
2. High-field magnetic tile motor core
3. High-precision three-stage worm gear self-locking gear kit
4. Built-in magnetic ring anti-interference system and overcurrent protection device
5. Motor output shaft adopts 304 special stainless steel material

6. One-piece casting of high-strength automotive grade aluminum alloy completed
7. High adhesion anti-ultraviolet automotive grade spraying
8. Double-station cushioning and shock absorption movable joint

9. Automobile special grade high-density aluminum profile casting
10. The surface of the panel adopts oxidation and technology nano-coating technology
11. The middle decorative strip is made of 304 stainless steel in one piece

Car Running Boards Details:

MODEL NO. TB1162 Line Two
Rated Voltage DC 12V
No-load Current 1.6A±0.3A
Rated Power 80W
Frequency 50HZ/60HZ
Rotational Speed 15±1RPM
Rotation direction of output speed Positive/reverse-bidirectional
Torque 5Nm( Speed,Current ) Speed 14±1rpm
Current≤5.0A
Torque 20Nm( Speed,Current ) Speed≥8rpm
Current≤15.0A
Braking Torque / Current ≥40N.m/≤20A
Noise ≤60db
Polar Number 2(N+S)
Insulation Grade E
Protection Grade IP67
Temperature range -40°~+80°
Houle Signal ——
Output Shaft SUS304

Car Running Boards Discription:

Benz 09+ Benz Glk Obd Side Step Motor 304 Stainless SteelBenz 09+ Benz Glk Obd Side Step Motor 304 Stainless SteelBenz 09+ Benz Glk Obd Side Step Motor 304 Stainless SteelBenz 09+ Benz Glk Obd Side Step Motor 304 Stainless Steel
