Ans Auto Turbocharger System Hyundai Terracan 2.5 TDI D4BH/4D56T (Less Exhaust) 28200-4A201 TD04

Car Engine Turbocharger Adavantage:

1. Function:

• Brand: ANS AUTO
• Warranty: 1 Year
• Turbo model: D4BH/4D56T
• Part number:28200-4A201 49177-0KK245220
• All necessary hardware and gaskets included for ease of installation
  Exact fit replacement for the original turbo. No modifications required

2. Effect:

3. Instal:
1. Remove complete exhaust system, original turbo and small turbo heat
shield and Turbine Bracket.
2. Remove oil in pipe and drill out hole in 2 bolt plate to 9/64 or 3.5mm to
allow more oil to turbo then thoroughly clean, and reassemble.Oil inplate may have to be ground to fit past turbo mounting bolt.
3. Leave original turbo hose in place.
4. Remove cast air in pipe from original turbo and bolt to front of upgradeturbo.
5. Bolt on new turbo and connect oil inlet and outlet.
6. Fit 90° elbow to dump pipe, then engine pipe, muffler, 56° elbow,
Station Wagon 45° for cab chassis and finally tail pipe using
appropriate hangers and clamps.
7. Reconnect air cleaner pipe to turbo air in pipe.Replace original
breather hose with hose supplied
8. Connect to intercooler pipe using long 90° 2 inch aluminium casting
and turbo hose and clamps supplied.
9. Unlock primary fuel locknut on top of fuel pump and using 4mm Allenkey, move the screw clockwise half a turn.
10. Fit test boost gauge and pyrometer, check oil and water.
11. Start engine and allow it to idle for 5 minutes whilst checking for oil andair leaks.
12. Road or dyno test and adjust boost to 15 PSl maximum, at turbo (do
not exceed) and maximum pyrometer reading should not exceed 550°.

3. Note:
* Bearing Type: Journal Bearing
* Accessories: You will get exactly as shown in the picture
* Please confirm your old turbo part number matches up with one of the part numbers above
* Professional installation is highly recommended (No Instruction Included)
* For any other question, please feel free contact us

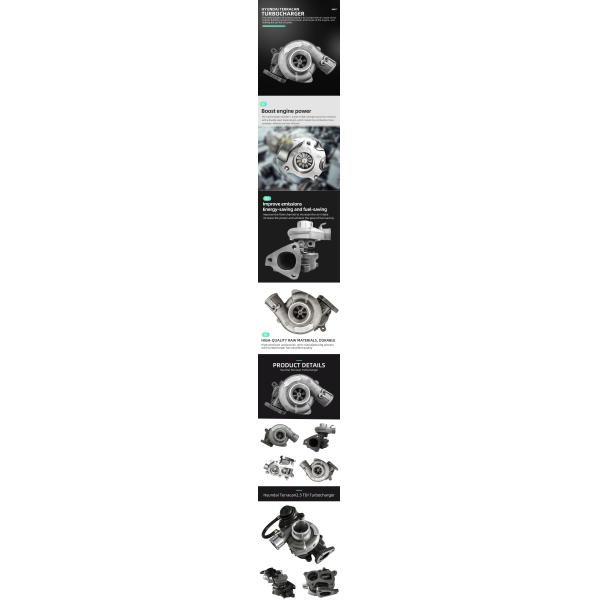

Car Engine Turbocharger Details:

Car Engine Turbocharger Discription:

Car Engine Turbocharger FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in Bubble Inside and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB.
Q4. How about your delivery time?
A: Generally, it will take 20 to 40 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
