Car 10Pin Side Mirror Auto Fold System for TOYOTA 2 Side Mirrors Fold and Open Automatically

Functions:

1. Automatically close both sides mirror since lock the car
2. Automatically open both sides mirror since start the car or ACC ON
3. Reduce maintenance or repair cost
4. Avoid conllision when parking in narrow street.
5. Easy installation
6.Auto folding both car mirrors together.

Specification:
Operating Voltage 15V-11V

Operating Current 8A
Static Current 3mA
Application temperature -20°C to +80°C°C
Size:55*40*25mm

Installation:

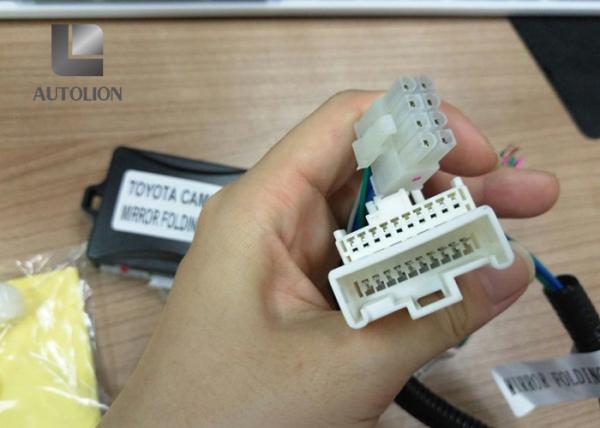

Here for example: how to install the side mirror folding kit for 10pin toyota Camry?

Firstly, inset the plug into OBD socket in the car.
Secondly, connect 3 wires step by step.
You can see from the following picture,
1. the gray wire, connect the door actuator unlock signal input wire.
How to find the door actuator unlock signal input wire?
--Please find it on the motor harness of the central lock in the left front door, under normal circumstances, it is thicker than the other lines in the same group of wire harness.
Test method: Using a multimeter or test lamp with bulb, one end link to metral iron, the other end connected to the tested line, if there is a moment postitive electric when press the remote key, then it is the door actuator unlock signal input wire.

2. The pink wire, connect the power wire 12V
3. The green wire, connect the door actuator lock signal input wire.
How to find the door actuator lock signal input wire?
--Please find it on the motor harness of the central lock in the left front door, under normal circumstances it’s bigger than the other lines in the same group of wire harness.
Test method: Using a multimeter or test lamp with bulb, one put up iron, the other end connected to this line, when the remote control lock button is pressed, there is a momentary positive charge.

The third step: connect the terminal plug into the product host.
Then begin your test.

Car model list and instruction:

Before you make order, please tell us your car name, we will check all details for you.
