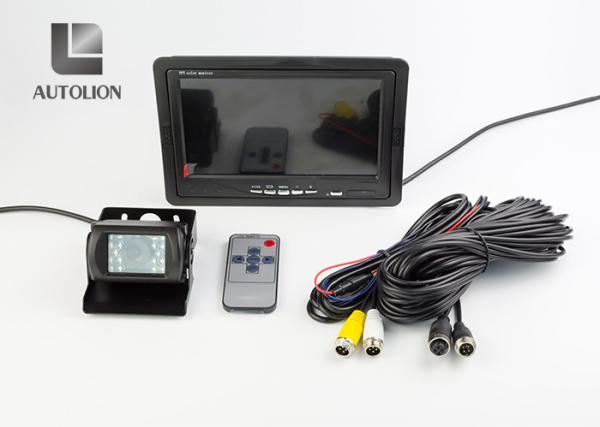

Car Rear View Camera With Video Parking Sensor System For Truck/Bus/Sedan

Feature of Truck parking sensor system

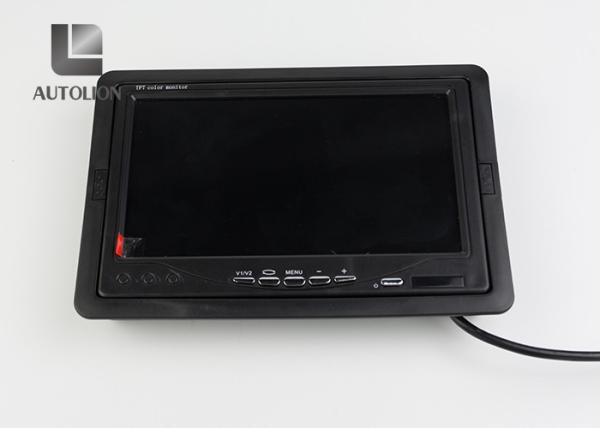

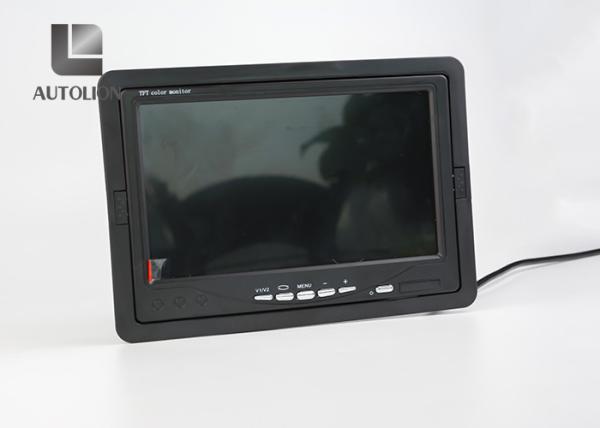

7 inch High Brightness LCD Monitor with 3 video input, 12-32VDC
Waterproof IP68 1/4inches Sharp CCD Night Vision Rear View Camera
Lightning protection anti-interference host
With buzzer crescent BI..BI..BI.. When backup vehicle, Volume is not less than 100 db.
Monitor direct connection control box to supply power. Cable length without being limited by the car.
Distance data will display on the Screen with
2 style probe: Bracket screws or punch probe
Probe special waterproof design, level of waterproof IP68.
Lightning protection design, containing 600 w TVS diode.
4 core aviation joint line (extension cord with 15 meters)

Control Box + Sensors

1) Van 4 probe reversing radar system, applicable to all the large vehicles;
2) When vehicle starts to reverse, system start working;
3) Sensor detection range: 0 m ~ 3.0 m (Special require: 5.0meter optional)
4) Speech at distance range: 0.3 meters to 3.0 meters;
5) Connector to Monitor, Host, Probe cable length : 15m, 3m (Customized)
6) Cable connection installation, prevent radio interference;
7) Lightning protection anti-interference boxes;
8) Bracket screws or punch probe (waterproof for thread form 4 probe);
9) 4 pins screw on extension cable, 15 meters;(other length customized);
10) Power input:12-32 v DC; Stand by : less than 1W
11) Operating frequency: 40 KHZ.
12) Probe Beam Angle: single Angle 60-80 degrees, can choose double Angle Y = 60-80 degrees, X = 100-120 degrees.
13) Size: length x width x height = 153mm x 99mm x47mm.
14) Low temperature – 40 °C, high temperature of 80 °C;
