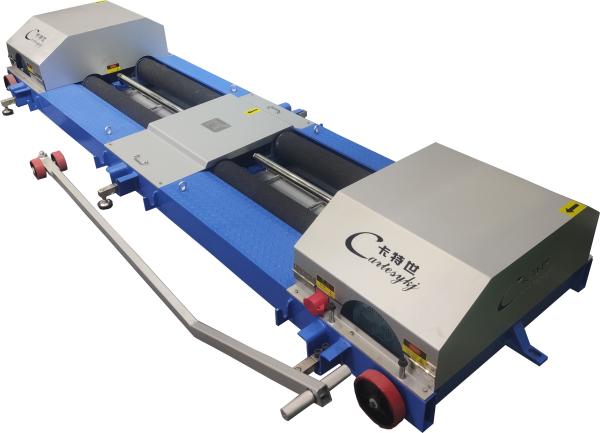

Cartesykj mobile movable roller brake tester 3T 10T 15T vehicle test lane vehicle inspection equipments
Cartesykj mobile movable roller brake tester 3T 10T 15T vehicle test lane vehicle inspection equipments
Cartesykj mobile movable roller brake tester 3T 10T 15T vehicle test lane vehicle inspection equipments
Cartesykj mobile movable roller brake tester 3T 10T 15T vehicle test lane vehicle inspection equipments
Specifications
Brand Name :
cartesykj
Model Number :
CTFZ-3BY,CTFZ-10BY,CTFZ-15BY
Certification :
CE
Place of Origin :
China
MOQ :
1unit
Price :
$ - $/sets
Payment Terms :
L/C, T/T
Supply Ability :
300 Set/Sets per Month
Delivery Time :
20-25 working days
Packaging Details :
Wooden packing
Warranty :
12 Months
Port :
Guangzhou
Axle load :
3T 10T 15T
Test range :
0-9000N
Power supply :
380V 50Hz 3P
Description

Cartesykj mobile movable roller brake tester 3T 10T 15T vehicle test lane vehicle inspection equipments

★ Measurement Items
Brake Force (N) Axle Load(kg). Friction Efficiency (%)
Axle Brake Efficiency (%) Sum Brake Efficiency (%) Axle Brake Imbalance (%)
★ The corundum roller surface with high adhesion coefficient, is near the road condition and has more than 280,000 life span. Independent safety system can automatically stop motor in case of wheel slip and to protect the wheel.
★ No need pit foundation, easy to be move around. We are equipment with wireless control system which can test the equipment without fixed work stage
★ With self-lock function which is convenient for car drive out after finishing test. ★ Optional foldable aluminum ramps, make it lighter.
Feature :
easy for moving no physical cables from control system to mechanical tester wireless communication

Technical Parameter:

Items Parameters
Model CTFZ-3BY CTFZ-10BY CTFZ-15BY
Axle Load 3T 10T 15T
Motor Power 3KW X 2 11 kW X 2 15KW X 2
Testing Speed 2.5 kM/h 2.5 kM/h 2.5 kM/h
Testing Range 0-9000N 0 ~ 30 KN 0~ 45KN
Roller Diameter Ф160mm Ф160mm Ф160mm
Roller Length 750mm 1,000mm 1,200mm
Power Supply 380V 50HZ 3P 380V 50HZ 3P 380V 50HZ 3P

Dimension of Bench

(L X W X H)

Ramp

 3420*910*180(530)mm 1200*750*180mm*4pcs 4120 *1470 *180(530)mm 1200* 1000*180mm*4pcs 4320*1470*180(530)mm 1200*1200*160mm*4pcs

Cartesykj mobile movable roller brake tester 3T 10T 15T vehicle test lane vehicle inspection equipmentsCartesykj mobile movable roller brake tester 3T 10T 15T vehicle test lane vehicle inspection equipments -laptop to install the software

Cartesykj mobile movable roller brake tester 3T 10T 15T vehicle test lane vehicle inspection equipments

Cartesykj mobile movable roller brake tester 3T 10T 15T vehicle test lane vehicle inspection equipmentsCartesykj mobile movable roller brake tester 3T 10T 15T vehicle test lane vehicle inspection equipmentsCartesykj mobile movable roller brake tester 3T 10T 15T vehicle test lane vehicle inspection equipments

Cartesykj mobile movable roller brake tester 3T 10T 15T vehicle test lane vehicle inspection equipments

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in wooden case per set.


Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.


Q3. What is your terms of delivery?
A: EXW, FOB


Q4. How about your delivery time?
A: Generally, it will take 10 or 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.


Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.


Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.


Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
