Specifications
Brand Name :
Cartesysj
Model Number :
CTMT-300B
Certification :
ISO CE
Place of Origin :
China
MOQ :
1 unit
Price :
$32,000.00 - $40,000.00/sets
Payment Terms :
L/C, T/T
Supply Ability :
400 Set/Sets per Month
Delivery Time :
20~25 working days
Packaging Details :
Wooden packing
Warranty :
Months
Port :
Guangzhou
allowed wheel/axle load(kg) :
750
axle distance applicable (mm) :
900—1700
wheel distance applicable :
500(inner width)/1500(outer width)
motor power :
10kw
air supply(Mpa) :
air pressure 0.5-0.8
Description

Motorcycle (EV) tester for two wheels CTMT-300B Motorcycle safety performance test line

Technical parameters:

model & specification

CTMT-750

CT3JZMT-750

CTMT-300B

allowed wheel/axle load(kg)

750

750

300

axle distance applicable (mm)

900—1700

900—1700

900—1700

(mm)wheel distance applicable

500(inner width)/1500(outer width)

500(inner)/1500(outer)

500(inner)/1500(outer)

(kw)motor power

10

10

6

air supply(Mpa)

air pressure 0.5-0.8

air pressure 0.5-0.8

air pressure 0.5-0.8

Brake tester

(mm)roller dia.

2-∮180×300 2-∮180×1000

2-∮180×300 2-∮180×1000

∮180×300

roller central distance(mm)

310

310

310

(N)brake force testing range

0-2500

0-2500

0-2000

value error

±3%

±3%

±3%

speed tester

(mm)roller dia.

2-∮176.6×300 2-∮176.6×1000

2-∮176.6×300 2-∮176.6×1000

∮176.6×300

roller central distance(mm)

310

310

310

(km/ h)testing range

0-80

0-80

0-80

value error

±2%

±2%

±2%

axle load tester

(kg)testing range

0-750

0-750

0-300

value error

±2%

±2%

±2%

wheel deviation tester

(mm)

Testing range

±15

±15

value error

±0.2

±0.2

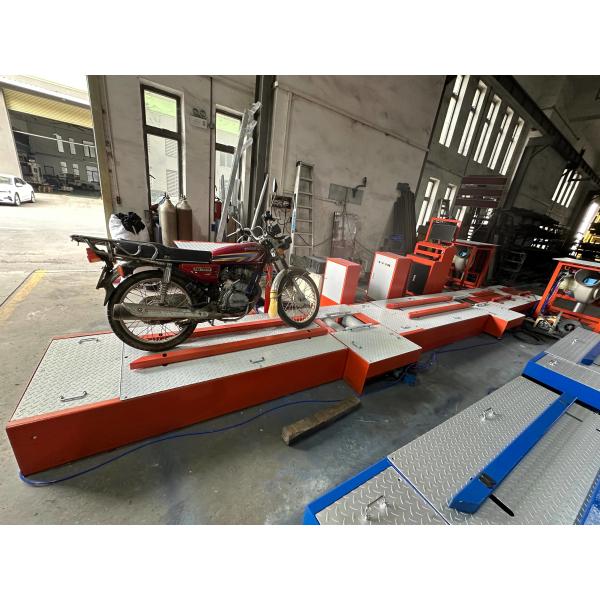

CTMT-300B  Customized Comprehensive Motorcycle Tester with three 3000-watt cooling fans specifically designed to operate undergroundCTMT-300B  Customized Comprehensive Motorcycle Tester with three 3000-watt cooling fans specifically designed to operate underground

CTMT-300B  Customized Comprehensive Motorcycle Tester with three 3000-watt cooling fans specifically designed to operate underground

Meet the latest national standards:

◆GB7258-2012 " Motor Vehicle safety technical conditions"
◆GB21861-2014 "Motor vehicles safety technical inspection items and methods”
◆GA468-2004 "Motor vehicles safety inspection items and methods"
◆JT/T478-2002 " Automobile inspection station computer control system technical regulation”

Scope of application:

The department of motor vehicles management, motorcycle factory and testing institution motorcycle repair shop

Test items

◆External inspection, braking, wheel load, wheel deviation, speed ,emission, headlights, sound level, etc. (manufacturer production quality assurance line)
◆Wheel load, braking, emission, lighting (safety inspection institute)

Test Line feature:

◆Detects motorcycles which axle load below 300kg and 2-wheel, 3-wheel and 4-wheel electric vehicles which axle load below 1040 kg.
◆Three vehicles can be launched at the same time detection which made the high efficiency
◆Frequency conversion adjustment, the device quickly reach to the setting data, easily to install and simple calibration
◆Automatic re- check, self-test function, unique structure, good reliability, accurate and reliable measurements
◆High precision sensor and high detection precision as well as repeat-ability
◆Adopting digital communication technology with high reliability, industrial module maintenance is convenient

◆Tester bench adopts the integral welding, high strength, no anchor belt installation, easy to install and debug.

Classification and layout:

There are two kinds of motorcycle test line: two wheel motorcycle and whole model. The test line for two wheel motorcycle can only test two wheel motorcycle, the whole vehicle test line can test not only two wheel motorcycle but also tricycle, and partial tricycles.

Maintenance and servicing:

1. After the product is used for three months, please disassemble the platform panel and add calcium-base lubrication grease to the guide seat with a pressure rod type oil gun to lubricate the guide sleeve and guide pillar. And also check if the fastening bolts of guide seat and oil cylinder etc. components are loose.
2. Please check the oil level in the oil tank of hydraulic station. Add N46 engine oil (old standard is 30# engine oil) if the oil volume is insufficient.
3. In case the oil pipe of hydraulic system is broken and the oil sprays outside, please stop the operation immediately and carry out maintenance. Do not block the broken place with hands. Otherwise the high pressure oil may injure persons.
