Specifications
Brand Name :
Cartesykj
Model Number :
CTYJ-10
Certification :
ISO CE
Place of Origin :
zhongshan,Chain
MOQ :
1 unit
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
300 Set/Sets per Month
Delivery Time :
20-25 working days
Packaging Details :
Wooden package
Description

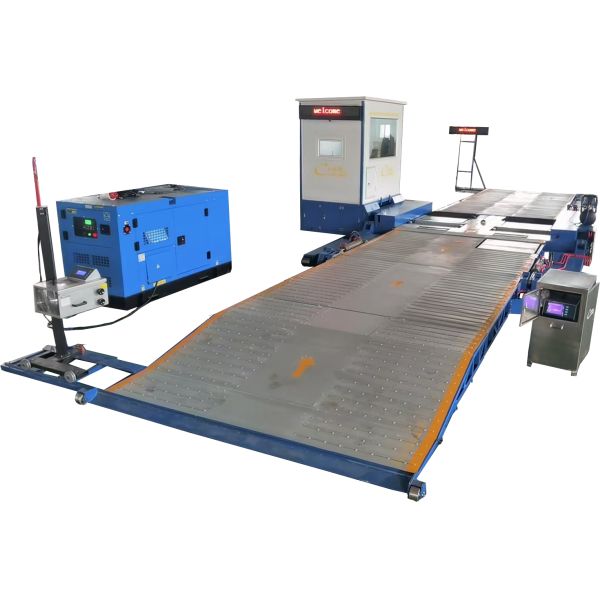

Vehicle Safety Testing Working Position CTYJ-10 Mobile vehicle safety test line

Product Introduction:

The mobile vehicle safety testing center has all the functions of fixed test station: it can be used for axle load of 10 tons ,two axes with wheelbase of less than 6 meters (rear Mercedes buses),Three-axis(single bridge drive), two-axle trailer, semi-trailer truck to implement headlamps, exhaust, smoke, sound level, side slip, axle load, braking power, speedometer and other safety performance testing.

Technical parameter:

NO. Item Parameter
1 Max.load(kg) 10000
2 Applicable wheel base(mm) ≦6000
3 Box outline size(mm) 8200×2480×3800
Box open up size(mm) 17600×5600×272
4 Power(V) ～380
5 Box weight(kg) 10000
6

Brake tester

 Roller diameter(mm) Φ160
Roller center distance(mm) 456
Brake force test scope(N) 0—45000N×2
Indication error ±(0.075%FS或3%)
7

Speed tester

 Roller diameter(mm) Φ190
Roller center distance(mm) 470
Test scope(km/h) 0--120
Indication error ±(±2%+1km/h)
8

Axle load tester

 Test scope(kg) 0--10000
Indication error ±0.2%FS或±2%
9

Wheel excursion tester

 Test scope(m/km) ±10
Indication error ±0.2

Working Position Mobile Vehicle Safety Test Line 10000kg Load CTYJ-10 Mobile Test LineWorking Position Mobile Vehicle Safety Test Line 10000kg Load CTYJ-10 Mobile Test LineWorking Position Mobile Vehicle Safety Test Line 10000kg Load CTYJ-10 Mobile Test LineWorking Position Mobile Vehicle Safety Test Line 10000kg Load CTYJ-10 Mobile Test Line

Maintenance and servicing:

1. After the product is used for three months, please disassemble the platform panel and add calcium-base lubrication grease to the guide seat with a pressure rod type oil gun to lubricate the guide sleeve and guide pillar. And also check if the fastening bolts of guide seat and oil cylinder etc. components are loose.
2. Please check the oil level in the oil tank of hydraulic station. Add N46 engine oil (old standard is 30# engine oil) if the oil volume is insufficient.
3. In case the oil pipe of hydraulic system is broken and the oil sprays outside, please stop the operation immediately and carry out maintenance. Do not block the broken place with hands. Otherwise the high pressure oil may injure persons.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in wooden case per set

Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB

Q4. How about your delivery time?
A: Generally, it will take 10 or 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
