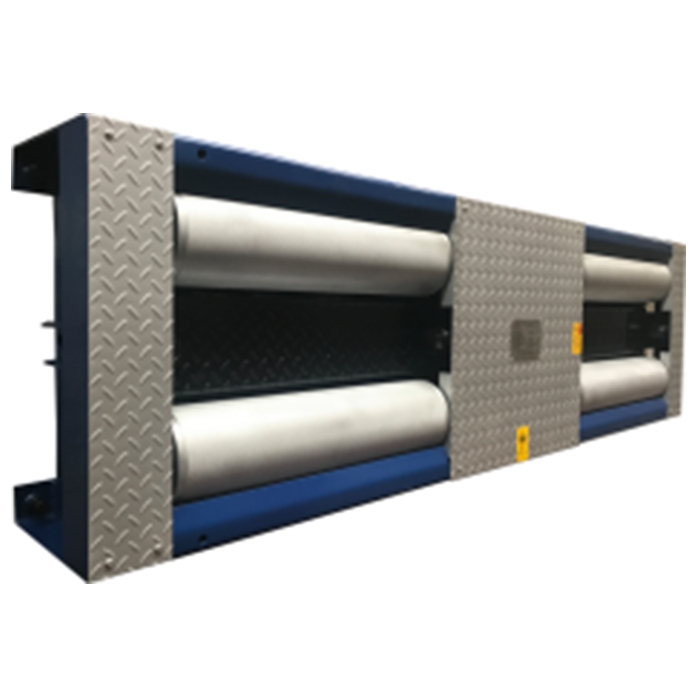

3T Car CTCS-3A Vehicle Speedometer Tester Vehicle Inspection Equipment Speed Test Speedometer
3T Car CTCS-3A Vehicle Speedometer Tester Vehicle Inspection Equipment Speed Test Speedometer
3T Car CTCS-3A Vehicle Speedometer Tester Vehicle Inspection Equipment Speed Test Speedometer
3T Car CTCS-3A Vehicle Speedometer Tester Vehicle Inspection Equipment Speed Test Speedometer
Specifications
Place of Origin :
China
Brand Name :
Cartesy
Model Number :
CTCS-3
Certification :
ISO CE
Packaging Details :
Wooden packing
Supply Ability :
200 Set/Sets per Month
Price :
$2,000.00 - $13,000.00/sets
MOQ :
1 unit
Payment Terms :
L/C, T/T
Delivery Time :
20-25 working days
Name :
Speedometer tester
Car Fitment :
BMW - Europe
Applicable Models :
for cars
Warranty :
24 Months
Max. axle-load (kg) :
3t
Applied wheel tread (width/wide) (mm) :
700（width）/2400（wide）
Test speed (km/h) :
0—130
Roller diameter x length (mm) :
∮190×850
Air supply :
0.5-0.6 MPa
Dimensions (mm) :
2700×750×400
Port :
Guangzhou
Description

Vehicle inspection equipment Fitment 3T car CTCS-3A Vehicle Speedometer Tester for Trucks and Cars

Introduction:

The vehicle speedometer tester is used to detect the indication error of the speedometer when the vehicle is running. Vehicle speedometer tester is one of the important equipment of vehicle safety performance test.

Main features:

◆Using of reinforced steel guarantees strong and durable structure-bodies, no need for anchor bolt installation, convenient debugging

◆The roller surface is specially knurled, with high strength, wear resistance and large friction coefficient

◆It adopts air bag lifting with good lifting synchronicity, which is convenient for vehicle in and out and improves detection efficiency.

◆Double safety device, the control system has the function of automatic locking of lifting mechanism when the roller speed is higher than 5 km / h, to ensure the test safety

◆It is equipped with security device to protect the wheel from scratching the tester when it is running at high speed.

◆Equipped with non-contact sensor, it not only has high test accuracy but also is durable

◆The speed measurement range is wide, and the speed of the test point is controlled by the wireless remote control

Technical parameters:

Model CTCS-3A CTCS-10A CTCS-15A
Max. axle-load (kg) 3000 10000 15000
Applied wheel tread (width/wide) (mm) 700(width)/2400(wide) 700(width)/2700(wide) 700(width)/2900 wide)
Test speed (km/h) 0—130 0—130 0—130
Roller diameter x length (mm) ∮190×850 ∮190×1100 ∮190×1100
Air supply 0.5-0.6 MPa 0.7-0.8 MPa 0.7-0.8 MPa
Dimensions (mm) 2700×750×400 3200×900×480 3200×900×480
3T Car CTCS-3A Vehicle Speedometer Tester Vehicle Inspection Equipment Speed Test Speedometer
3T Car CTCS-3A Vehicle Speedometer Tester Vehicle Inspection Equipment Speed Test Speedometer

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in wooden case per set

Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB

Q4. How about your delivery time?
A: Generally, it will take 10 or 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
