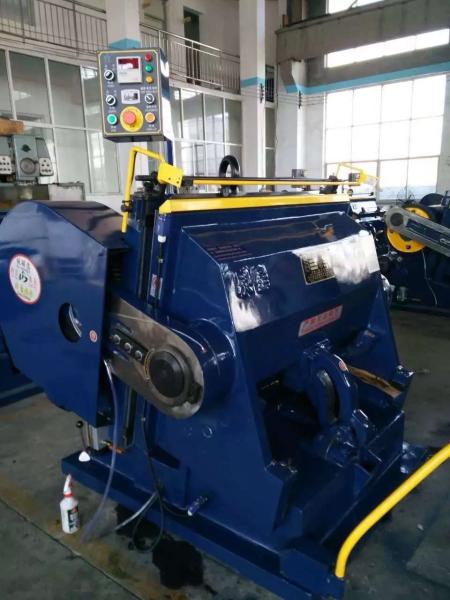

Corrugated Board Single-disc Clutch Flat Creasing And Cardboard Die Cutting Machine
Corrugated Board Single-disc Clutch Flat Creasing And Cardboard Die Cutting Machine
Corrugated Board Single-disc Clutch Flat Creasing And Cardboard Die Cutting Machine
Corrugated Board Single-disc Clutch Flat Creasing And Cardboard Die Cutting Machine
Specifications
Place of Origin :
Hebei
Brand Name :
Xintian
Certification :
CE ISO9001:2000
MOQ :
1 set
Packaging Details :
pallet
Delivery Time :
30-90 days
Payment Terms :
TT，L/C
Supply Ability :
2 sets per month
Model Number :
PYQ
Description

Corrugated Board Single-disc Clutch Flat Creasing And Cardboard Die Cutting Machine


Functions and Features:

Usage

The flat creasing and die-cutting machine is special equipment for creasing and cutting ordinary cardboard, corrugated board, plastic and leather. In general, it is applicable to printing packaging decoration and plastic industries. This machine is characterized by compact structure, fine workmanship, big pressure, high precision and easy and reliable operation, etc.

Features:
1 The sliding bearings use high quality cast copper alloy, anti-grinding and vibration reduction.
2 The torque of flywheel is big, the force of press and cutting are high.
3 The body of the machine adopts the high quality materials casts in whole body, high strength, and good rigidity.
4 Single-disc electromagnetic clutch moves fast, and it is reliable.
5 It owns single press & cutting, uninterrupted press & cutting and time delay open functions, the range of time-delay can be adjusted according to your wish.
6 The operating height is designed reasonably; the pressing frame’s opening angle is big
7 Centralized lubricating system guarantees the well lubricating, and lessees the abrasion.
8 It has reliable safe protecting systems.

Model

ML1300

ML1400

ML1500

ML1500

Max.rule length

< 35 m

< 45 m

< 47 m

< 48 m

Inner chase size

1300×920mm

1400×1000mm

1500×1050mm

1500×1150mm

Speed

15 ±2 Strokes/min

15±2 Strokes/min

14±2 Strokes/min

14±2 Strokes/min

Package dimension

1960×2160×1600mm

2050×2450×1650mm

2500×2200×1750mm

2500×2200×1850mm

Overall weight

5600 kg

6200 kg

7000 kg

7300 kg

Motor power

5.5 kw

7.5 kw

7.5 kw

7.5 kw















Corrugated Board Single-disc Clutch Flat Creasing And Cardboard Die Cutting Machine
Corrugated Board Single-disc Clutch Flat Creasing And Cardboard Die Cutting Machine
