Specifications
Place of Origin :
Hebei
Brand Name :
Xintian
Certification :
CE ISO9001:2000
Packing :
Pallet
Productivity :
1 set /Month
Shipment Terms :
According to customer's requirement
Minimum Order :
1 set
MOQ :
1 set
Packaging Details :
pallet
Delivery Time :
30-90 days
Payment Terms :
TT，L/C
Supply Ability :
2 sets per month
Inner chase size :
1300×920mm,1400×1000mm
Speed :
15 ±2 Strokes/min
Overall weight :
5600 kg,6200 kg,7000 kg,7300 kg
Motor power :
5.5 kw,7.5 kw
Description

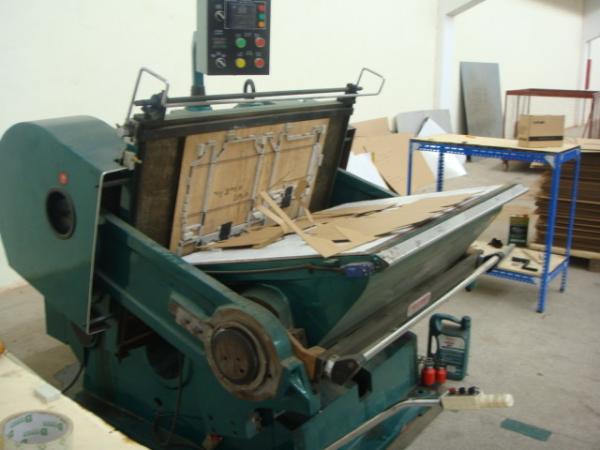

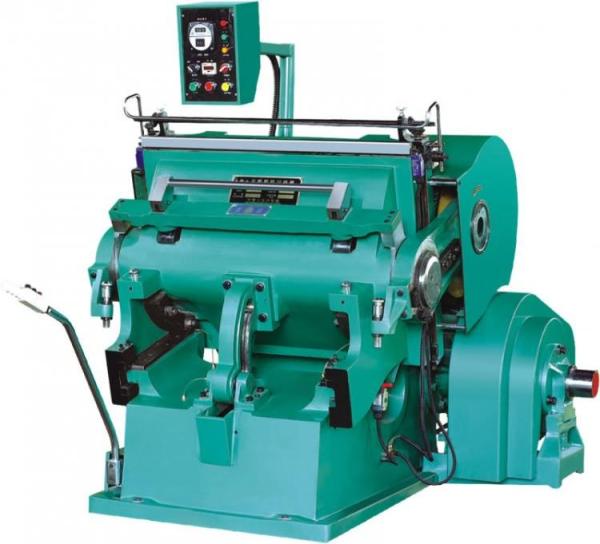

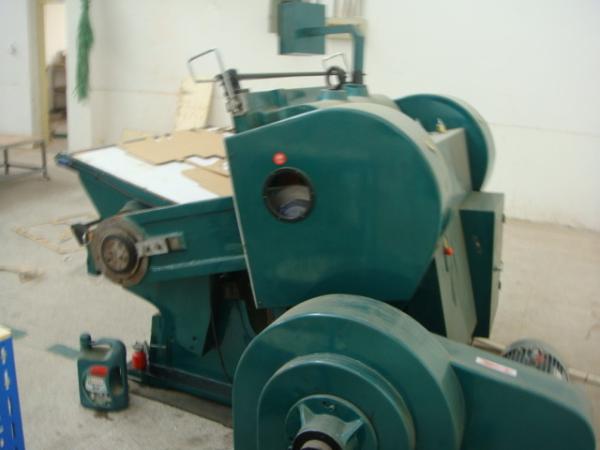

Cast Copper Alloy Anti-grinding Flat Creasing And Die-cutting Corrugated Carton Machine

Functions and Features:

The flat creasing and die-cutting machine is special equipment for creasing and cutting ordinary cardboard, corrugated board, plastic and leather. In general, it is applicable to printing packaging decoration and plastic industries. This machine is characterized by compact structure, fine workmanship, big pressure, high precision and easy and reliable operation, etc.

Features:

1 The sliding bearings use high quality cast copper alloy, anti-grinding and vibration reduction.

2 The torque of flywheel is big, the force of press and cutting are high.

3 The body of the machine adopts the high quality materials casts in whole body, high strength, and good rigidity.

4 Single-disc electromagnetic clutch moves fast, and it is reliable.

5 It owns single press & cutting, uninterrupted press & cutting and time delay open functions, the range of time-delay can be adjusted according to your wish.

6 The operating height is designed reasonably; the pressing frame’s opening angle is big

7 Centralized lubricating system guarantees the well lubricating, and lessees the abrasion.

8 It has reliable safe protecting systems.

Technical parameter

Model

Inner chase size

speed

Max.embossing length

Motor power

Machine weight

Overall dimensions

ML750

750*520mm

25±3

<15mm

2.2kw

1800kg

1300*1300*1700mm

ML930

930*660mm

20±3

<25mm

3.0kw

3000kg

1780*1590*1450mm

ML-1100

1100*800mm

20±2

<32mm

5.5kw

4500kg

1800*1900*1480mm

ML-1200

1200*820mm

20±2

<35mm

5.5kw

4900kg

1800*2000*1520mm

ML-1300

1300*920mm

18±2

<40mm

7.5kw

5600kg

1800*2120*1600mm

ML-1400

1400*1000mm

18±2

<40mm

7.5kw

6500kg

1800*2220*1650mm

ML-1500

1500*1050mm

18±2

<50mm

7.5kw

7500kg

1800*2300*1700mm

ML-1600

1600*1150mm

18±2

<50mm

7.5kw

8500kg

1800*2420*1750mm
