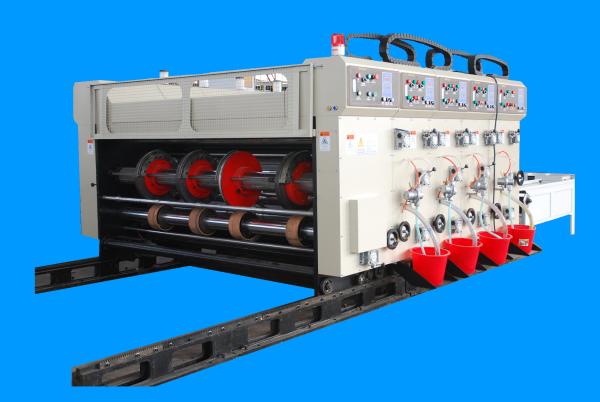

Chrome Surface Grinding Chain Feeding Four-color Flexo Printing Carton Slotting Machine
Chrome Surface Grinding Chain Feeding Four-color Flexo Printing Carton Slotting Machine
Chrome Surface Grinding Chain Feeding Four-color Flexo Printing Carton Slotting Machine
Chrome Surface Grinding Chain Feeding Four-color Flexo Printing Carton Slotting Machine
Chrome Surface Grinding Chain Feeding Four-color Flexo Printing Carton Slotting Machine
Chrome Surface Grinding Chain Feeding Four-color Flexo Printing Carton Slotting Machine
Specifications
Place of Origin :
Hebei
Brand Name :
Xintian
Certification :
CE ISO9001:2000
Model Number :
XT-L
MOQ :
1 set
Packaging Details :
pallet
Delivery Time :
30-90 days
Payment Terms :
TT，L/C
Supply Ability :
2 sets per month
Price :
$10000-$100000
Description

Chrome Surface Grinding Chain Feeding Four-color Flexo Printing Carton Slotting Machine

Functions and Features:

  • Chain feeding model with a clutch between the working table and unit creates convenient gravure registering.

  • Motorized detachment and combination; pneumatic locking and loosening of printing units; automatic ink distribution and pneumatic brake separation orientation;

  • Printing and slotting phase is adjusted by mechanical 360o phase adjustment facilities; option of planetary-gear electric phase, shown by digit.

  • Whole machine uses the gear pumping automatic lubrication.

  • Ink roller and printing pressing roller are connected by cross slide to ensure steady transmission.

  • All axles and rollers are plated with rigid chrome and grinded surface.

  • The whole machine adopts the electric parts from CHINT and DELIXI;

  • Whole machine bearing is from the Harbine Bearing Group.

Main Technical Parameter(according to four-color printing slotting machine)

SERIAL

WYAZS NAME

UNIT

WYAZS

900×1900

1450×1900/2300/2700

1700×2300/2700

1

Inboard width

mm

2200

2200

2600

3000

2600

3000

2

Max.coverage size

mm

950×2100

1500
×2100

1500
×2500

1500
×2900

1750
×2500

1750
×2900

3

Min.coverage size

mm

250×500

380×640

380×640

380×640

450×720

450×720

4

Max.printing area

mm

900×1900

1450
×1900

1450
×2300

1450
×2700

1700
×2300

1700
×2700

5

Thickness of printing plate

mm

7.2

7.2

7.2

6

Max.speed

Pieces/min

60

60

60

7

Topping precision

mm

±0.5

±0.5

±0.5

8

Slotting precision

mm

±1.5

±1.5

±1.5

9

Max.slotting depth

mm

200

300

400

10

Min.slotting interval

mm

260×60×260×60

280×80×280×80

300×100×300×100

11

Power of main motor

kw

3

4

5.5

12

Size for whole machine

mm

4500×3000/3400×1800

5500×3200/
3600/3900×2000

6500×3600/
3900×2200

Chrome Surface Grinding Chain Feeding Four-color Flexo Printing Carton Slotting Machine

Chrome Surface Grinding Chain Feeding Four-color Flexo Printing Carton Slotting Machine
