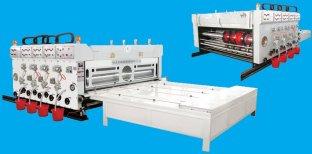

Automatic Slotting Flexo Sticker Printer Machine With Printing Pressing Roller
Automatic Slotting Flexo Sticker Printer Machine With Printing Pressing Roller
Automatic Slotting Flexo Sticker Printer Machine With Printing Pressing Roller
Automatic Slotting Flexo Sticker Printer Machine With Printing Pressing Roller
Specifications
Place of Origin :
China
Brand Name :
Xintian
Certification :
CE, ISO
MOQ :
One Set
Packaging Details :
Pallet
Delivery Time :
30-90 Days
Payment Terms :
T/T Advanced
Model Number :
XT-L
Description

Automatic Slotting Flexo Sticker Printer Machine With Printing Pressing Roller

Functions and Features:
Chain feeding model with a clutch between the working table and unit creates convenient gravure registering.
Motorized detachment and combination; pneumatic locking and loosening of printing units; automatic ink distribution and pneumatic brake separation orientation;
Printing and slotting phase is adjusted by mechanical 360o phase adjustment facilities; option of planetary-gear electric phase, shown by digit.
Whole machine uses the gear pumping automatic lubrication.
Ink roller and printing pressing roller are connected by cross slide to ensure steady transmission.
All axles and rollers are plated with rigid chrome and grinded surface.
The whole machine adopts the electric parts from CHINT and DELIXI;
Whole machine bearing is from the Harbine Bearing Group.

SERIAL WYAZS NAME UNIT WYAZS
900×1900

1450×1900/

2300/2700

1700×2300

/2700
1 Inboard width mm 2200 2200 2600 3000 2600 3000
2 Max.coverage size mm 950×2100

1500×

2100

1500×

2500

1500×

2900

1750×

2500

1750×

2900
3 Min.coverage size mm 250×500

380×

640

380×

640

380×

640

450×

720

450×

720
4 Max.printing area mm 900×1900

1450×

1900

1450×

2300

1450×

2700

1700×

2300

1700×

2700
5

Thickness of

printing plate

 mm 7.2 7.2 7.2
6 Max.speed Pieces/min 60 60 60
7 Topping precision mm ±0.5 ±0.5 ±0.5
8 Slotting precision mm ±1.5 ±1.5 ±1.5
9 Max.slotting depth mm 200 300 400
10 Min.slotting interval mm 260×60×260×60 280×80×280×80

300×100

×300×100
11

Power of main

motor

 kw 3 4 5.5
12

Size for whole

machine

 mm

4500×3000/

3400×1800

5500×3200/

3600/3900×2000

Automatic Slotting Flexo Sticker Printer Machine With Printing Pressing Roller
