Specifications
Place of Origin :
China
Brand Name :
Xintian
Certification :
CE, ISO
MOQ :
One Set
Packaging Details :
Pallet
Delivery Time :
30-90 Days
Payment Terms :
T/T Advanced
Price :
Negotiable
Description

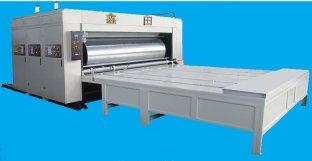

Pneumatic Locking Automatic Lubrication Carton Printing Slotting Machine With Gear Pumps

Main Technical parameter:

SERIAL

WYAZS NAME

UNIT

WYAZS

1030×1900
(Φ360)

1450 × 1900/2300/2700
( Φ480 )

1700×2300/2700
( Φ560 )

2450 × 2200/2800
( Φ800 )

1

Inboard width size

2200

2200

2600

3000

2600

3000

2600

3200

2

Max.coverage size

mm

1080×2000

1500×
2100

1500×
2500

1500×
2900

1750×
2500

1750×
2900

2500 ×
2500

2500×3
100

3

Min finish size

mm

260×610

380×
640

380×
640

380 ×
640

450×
720

450×
720

500×
600

500×
600

4

Max.prinling size

mm

1030 × 1900

1450×
1900

1450×
2300

1450
×2700

1700×
2300

1700×
2700

2450×
2200

2450 ×
2800

5

Thickness of printing plate

mm

6

7.2

7.2

6

6

6

Complete machine baffle thickness

mm

50

36

36

50

50

7

Max.speed

mm

80

60

60

50

50

8

Topping precision

Pieces/min

±0.5

±0.5

±0.5

±0.5

±0.5

9

Slotting precision

mm

±1.5

±1.5

±1.5

±1.5

±1.5

10

Max.slolting depth

mm

250

300

400

600

600

11

Min.slotting interval

mm

205×60×205×60

260×60×260×60

280×80×280×80

280×80×280×80

280×80×280×80


Function and Characteristics:

●Chain feeding model ,Gravure registering is convenient and correct with a clutch between the worktable and unit;
●Motorized detachment and combination, pneumatic locking and loosening of printing units.
●Printing and Slotting phase was adjustment the planetary gear structure 360° electric phase,show with digit;
●Whole machine was used the gear pump automatic lubrication;
●Ink roller and printing pressure roller was connected by cross slide to ensure a stable running.
●Whole machine axle,roller with rigid chrome and grinded surface;
●Whole machine electric parts was used the international famous brand
●Whole machine bearing was used the Harbine Bearing Group.
●Photoelectric counting,pre-setting order quantity,plan produce.

Note: Die cutter unit can be added if necessary.


Pneumatic Locking Automatic Lubrication Carton Printing Slotting Machine With Gear Pumps
Pneumatic Locking Automatic Lubrication Carton Printing Slotting Machine With Gear Pumps
