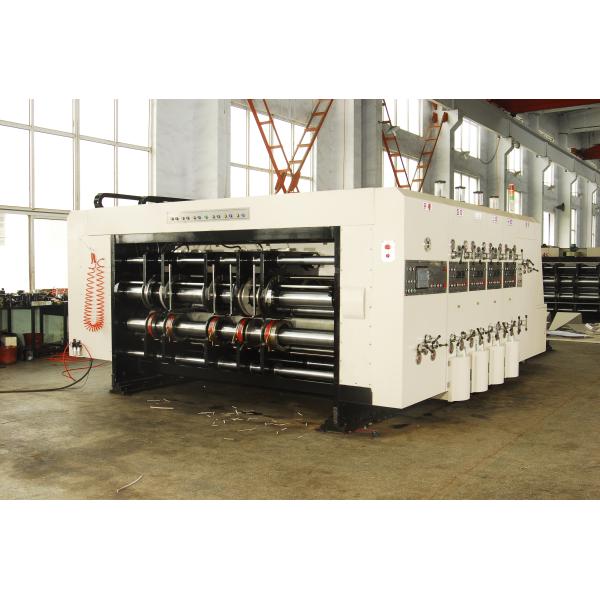

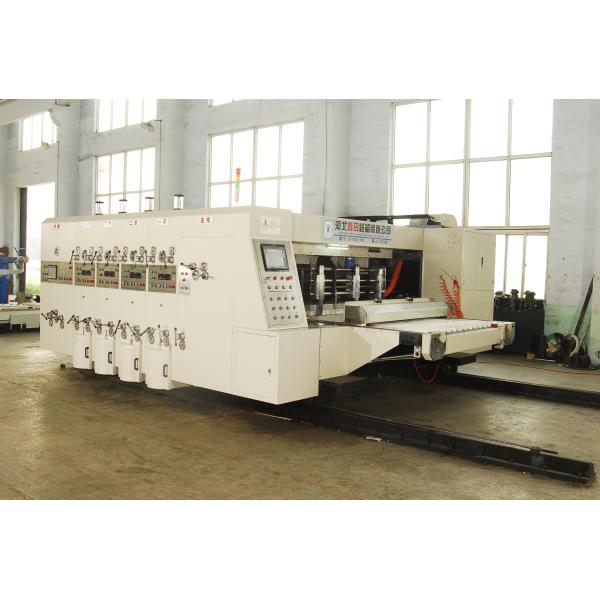

High Speed Corrugated Carton Making Machine , Frequency Conversion Control

Functions and features:

l International famous brand electric parts and computer software are used in the whole machine with

stable and reliable quality; human-computer interface, computer order storage, convenient operation and faster order update.(It can prestore 999 orders in the computer.)

l Complete machine baffle and important parts use tempering to decrease the metal internal force;

and all parts are made by high-precision processing center and grinded by numerical -control grinder.

l All transmission axles and rollers are made by high-quality steel, and processed through tempering

and dynamic balance; plated with rigid chrome and grinded surface.

l All transmission gears are made by 20CrMnTi alloy steel, which is grinded after heat-treatment, rigidity HRC58-62,and which is made by rubbing,6 grade precision to maintain high topping precision after

long using.

l All transmission parts (connected with the axles and gears) adopt the hand-free connecting ring to

eliminate the interval, suitable for long-term high-speed running.

l All transmission bearings adopt strengthened model bearing, equipped with dustproof windtight parts

and the oiling, handy to maintenance, lasting for longer using.

l The whole machine undergoes automatic spray lubrication, with intuitionistically showing facilities

and double oil pipe balance system.

l The whole machine runs with the adjustment presetting function, feeding, printing, slotting, die

cutting all featuring auto- zeroing and memory automatic reposition.

l The whole machine working interval adjustment adopts fast spanner-free adjustment and the electromagnetic brake system with the worm wheel and worm setting operates fast and conveniently.

l The mainframe chooses control by frequency conversion, with more stable and energy-saving for start-up and running.

l Option for the vacuum adsorption, kick feeding or leading edge feeding.

Optional equipments: ceramic anilox roller, leading edge feeding system, remote computer diagnosis system, stacker.

Main Technical Parameter
