Cast Iron Carton Corrugated Board Slotting Printing And Cutting Machine
Cast Iron Carton Corrugated Board Slotting Printing And Cutting Machine
Cast Iron Carton Corrugated Board Slotting Printing And Cutting Machine
Cast Iron Carton Corrugated Board Slotting Printing And Cutting Machine
Cast Iron Carton Corrugated Board Slotting Printing And Cutting Machine
Cast Iron Carton Corrugated Board Slotting Printing And Cutting Machine
Specifications
Place of Origin :
HeBei Province,China
Brand Name :
XINTIAN, SINCERITY
Certification :
CE,ISO9001
MOQ :
1set
Price :
$4500
Packaging Details :
pallet
Delivery Time :
30-60days
Payment Terms :
T/T or L/C
Supply Ability :
50 SET/MONTH
Product name :
Mechanical cutting Machine
Application :
paper cutting machines
Speed :
High speed
Precision :
high precision
Material :
Cast iron
Feature :
Durable
Description

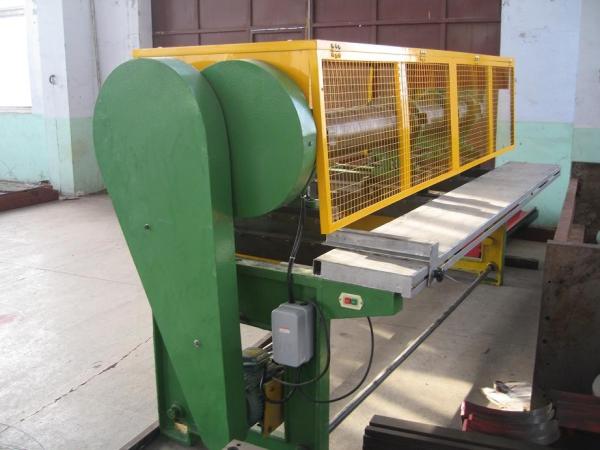

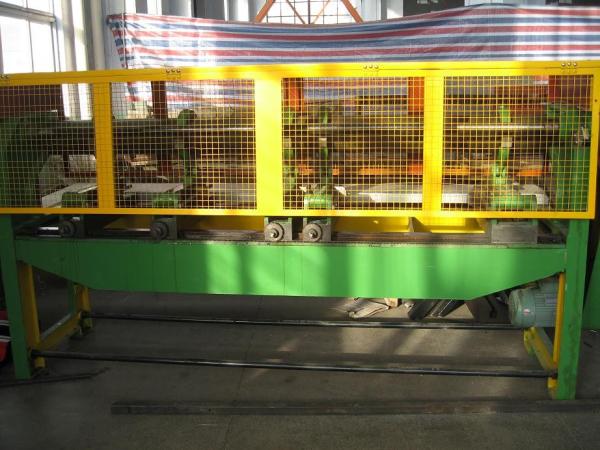

Cast Iron Carton Corrugated Board Slotting Printing And Cutting Machine

Specifications

1.double reduction gearing.
2.Cast iron Structure.
3.Belt and Wheel gear transmit.
4.Fast Change slot size.
5.Operating easy


General function:

It is mainly for Corrugated carton board’s slotting and cutting,According to adjust the knive' broadwise,you
can get the right slotting size. Operating easily,Working durable.Fast Changing size,easy repairing,maintain
etc.


If you are interested in purchasing this kind of machine,
Below 4 points are necessary for your reference:

1, Including structure,transmit,plate,motor.
2, Main Drive:double reduction gearing,First is V-belt,
Second is wheel gear ,The Drive was protected beneath the Cover.
3, Structure was made by Cast iron,Durable.
4, The machine was mainly depend on the Belt and Wheel gear put the crank axle into motion,
finish slotting.


Main Specifications:

Model

CN301-2000

CN301-2500

CN301-3000

CN301-3500

Width of carton board(mm)

2000

2500

3000

3500

Size of slotting(W×D)(mm)

7.5×350

7.5×350

7.5×550

7.5×630

Size of corner cutting(W×D)(mm)

60×350

60×350

80×580

80×650

Cutting speed(pcs/min)

45

45

45

45

Power(kw)

1.5

1.5

2.2

3

Weigth(kg)

1000

1200

2000

3200

Dimension(L×W×H)(mm)

2600×1170×1500

3100×1170×1500

3600×1600×1800

4100×1600×1800

Cast Iron Carton Corrugated Board Slotting Printing And Cutting Machine
