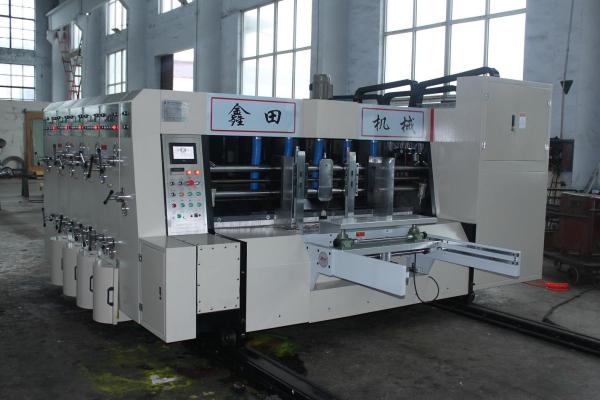

Fully Automatic Corrugated Carton Box Rotary Die Cutting Machine 30kw

Function and Characteristics:

Main Technical parameter:

●International famous brand electric parts and computer software was used in the whole machine ,top-quality and steady; Computer order storage and adjustment, faster order update and convenient operation.( It can storage the 999 order in the computer).
●Complete machine baffle and important parts used the temper for decrease the metal internal force ; and that parts was made by high precision process center and grinded by digit-controlled grinder.
●All the transmission axle and roller are made by the high-quality steel, temper, and dynamic balance; plated with rigid chrome and grinded surface.
●All the transmission gear was used the 20CrMnTi alloy steel, which is grinded alter heat-treatment, rigidity HRC58-62 , and it was made by rubbing ,6 grade precision , it still maintains the high topping precision.
●The transmission place (connected with the axle and gear), which adopts the hand-iree connecting ring to eliminate the interval, suitable for long-term high speed running.
●The important transmission bearing was adopted strengthen model bearing, handy to maintenance, suitable for long-term to used.
●The whole machine undergoes the spray lubrication , intuitionist show setting, setting the double oil pipe balance system
●The whole machine adjustment presetting iunction,ieeding .printing plotting, die cutting, automatic zero setting ,memory automatic reposition.
●The whole machine working interval adjustment was adopted free spanner, which is fast to adjustment, last and convenient to adjustment.
●The mainlrame was control by the frequency conversion, start-up,running more smooth .
●Option ior the vacuum adsorption, kick feeding or lead edge ieeding,and anilox roller,doctor blade and stacker.
●Setting the ink alarm device ,real-time monitoring of the work status of the ink supply system.
●The machine has a limit and over travel display.
●The optional machine gap electric adjustment.

Functions of Feeding Department:

●Electric-controlled connecting and separating every unit, with alarm to secure operator by consecutive ringing during its processing.

●It is a kick paper-feeding machine of vacuum adsorption, made of alloy aluminum, light and wear-resisting, with engineering plastic guide rail, equipped with several groups of rolling bearing to reduce the friction between papers so as to maintain a steady operation.

●Left and right baffles, kick feeding, back baffle adopt electric-controlled adjustment and computer numerical-controlled adjustment.

●Brush and the air draft dedusting device can clear away the impurity from paper face to improve the printing quality.

●The mainframe is controlled by the frequency conversion, with steady start-up and running , saving about 30% of the power.

●Infrared photoelectricity counter presets the order processing quantity.

●One lock function for whole machine avoids damage caused by error operation(The mainframe can’t start up when every unit hasn’t been connected.)

●Option of consecutive or skip paper feeding.

●Air pressure type elastic feeding rubber roller can’t damage the strength of corrugated cardboard, with down feeding roller, plated and embossed with hard chrome.

●Side baffle moves simultaneously with slotting unit and finishes the adjustment with trimming the side or not., saving time and effort, added with the pneumatic-flapping facilities to make more precise paper horizontal orientation and avoid waste.

●18# color touch screen controls the units of feeding, printing and slotting and die-cutting featuring zeroing for one time and memory reposition, and running speed reaching 60, 80,100,120 of cruise control.

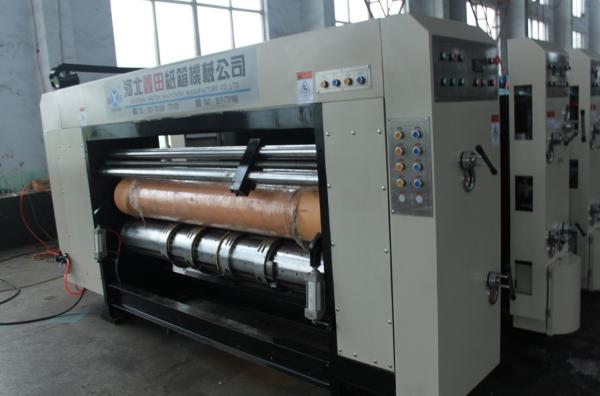

Functions of Printing Department:

●All the axle and roller was used The high grade steel,computer dynamic balance; eliminate the centrifugal effect,plated with rigid chrome and grinded surface.
●Printing phases was adopted the planetary gear structure,PLC touch screen control and the electric digit 360 adj istra nt step, rinni rrj can adjustment)
●Printing roller landscape orientation was adopted the Touch screen control, and electric digit adjustment,the adjustment scope is 10mm.
●Oil inspect function,alarm ring when need oil.
●Hanging plate device ,total hanging and half hanging slotting notch,foot switch control The clockwise and counter-clockwise, fast to fixing and take down the plate.
Fixing the oil interval,printing pressure roller,ead roller interval were used the fast free spanner adjustment.
●Printing phase fix was used the pneumatic brake structure,the brake structure will stop the mainframe running when the every unit separated, which can keep The origin gear fix position can not move.
●Reposition function,computer memory printing plate position, which can automatic reposition when scrub the plate.
Rubber roller,and The surface wrapped wear rubber,special grinding effect of transfer ink.
●Steel anilox roller,steel face chrome pressure the anilox and rigid chrome,(option ceramic anilox roller).
●Pneumatic uplift plate device,the anilox roller break away pneumatic ,smooth the oil automatic when the mainframe stop, it can prevent the oil

Functions of Slotting Department:

●All the carton size,height and phase was adjustment by computer,man-machine interface ,save time and energy, improved the working efficiency, the computer can storage the 999 order.
●Double slotting structure,big diameter pressure wheel, which can made the best effect for the boxes.
●Slotting tool rest,pressure wheel,repair side knife was adopted the ball bearing for straight line guide rail when horizontal movement,which can made the high precision,more flexible movement and accurate orientation for the upper and lower cutting,lengthen the service life for the scraper.
●The elastic tangential scraper structure could cut off three and five layer cardboard without any adjustment.
●Slotting knife was choice with the high quality alloy steel, which made the rigidity and tenacity was best when heat treatment, it can suitable long-term used.
●It could be equipped with portable punching die holder.
