Specifications
Brand Name :
XINTIAN
Model Number :
XT-L
Certification :
CE,ISO9001
Place of Origin :
HeBei Province,China
MOQ :
1set
Price :
$10000-$30000
Payment Terms :
T/T or L/C
Supply Ability :
50 SET/MONTH
Delivery Time :
30-90days
Packaging Details :
pallet
Inboard width :
2800mm
max.feeding width :
2600mm
Min feeding size :
380x640mm
Production Speed :
60 pieces/min
Topping precision :
0.5mm
Max.slotting depth :
300mm
Description

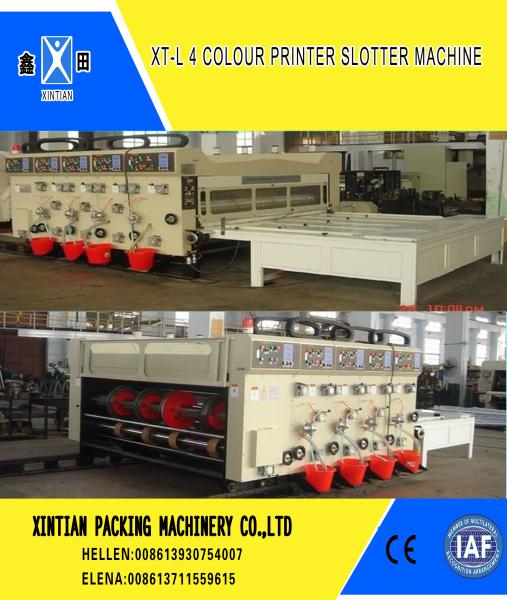

Manual Feeding Paper Carton Printing Equipment Witn Slotting Function

Functions and Features:

1. Printing and slotting phase is adjusted by mechanical 360o phase adjustment facilities; option of

planetary-gear electric phase, shown by digit.

2. Chain feeding model with a clutch between the working table and unit creates convenient gravure

registering.

3. Motorized detachment and combination; pneumatic locking and loosening of printing units; automatic ink

distribution and pneumatic brake separation orientation;

Main Technical Parameter(according to four-color printing slotting machine):

SERIAL

WYAZS NAME

UNIT

WYAZS

900×1900

1450×1900/2300/2700

1700×2300/2700

1

Inboard width

mm

2200

2200

2600

3000

2600

3000

2

Max.coverage size

mm

950×2100

1500×2100

1500×2500

1500×2900

1750×2500

1750×2900

3

Min.coverage size

mm

250×500

380×640

380×640

380×640

450×720

450×720

4

Max.printing area

mm

900×1900

1450×1900

1450×2300

1450×2700

1700×2300

1700×2700

5

Thickness of printing plate

mm

7.2

7.2

7.2

6

Max.speed

Pieces/min

60

60

60

7

Topping precision

mm

±0.5

±0.5

±0.5

8

Slotting precision

mm

±1.5

±1.5

±1.5

9

Max.slotting depth

mm

200

300

400

10

Min.slotting interval

mm

260×60×260×60

280×80×280×80

300×100×300×100

11

Power of main motor

kw

3

4

5.5

12

Size for whole machine

mm

4500×3000/3400×1800

5500×3200/3600/3900×2000

6500×3600/3900×2200

4. Whole machine uses the gear pumping automatic lubrication.

5. Ink roller and printing pressing roller are connected by cross slide to ensure steady transmission.

6. All axles and rollers are plated with rigid chrome and grinded surface.

7. The whole machine adopts the electric parts from CHINT and DELIXI;

Whole machine bearing is from the Harbine Bearing Group.
