2 Layer Corrugated Paperboard Making Machine 0 - 60 m / min With Clamping Arm
2 Layer Corrugated Paperboard Making Machine 0 - 60 m / min With Clamping Arm
2 Layer Corrugated Paperboard Making Machine 0 - 60 m / min With Clamping Arm
2 Layer Corrugated Paperboard Making Machine 0 - 60 m / min With Clamping Arm
2 Layer Corrugated Paperboard Making Machine 0 - 60 m / min With Clamping Arm
2 Layer Corrugated Paperboard Making Machine 0 - 60 m / min With Clamping Arm
Specifications
Brand Name :
XINTIAN
Model Number :
DW
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD3000-6000/SET
Payment Terms :
L/C, T/T
Supply Ability :
30 SETS / MONTH
Packaging Details :
15-30 DAYS
Width :
1300mm, 1450mm, 1600mm
Speed: :
0-100m/min
Maximum support weight: :
2 ton.
Maximum paper roll diameter: :
φ 1200mm.
Brands :
XINTIAN
Description

2 Layer Single Facer Corrugated Paperboard Production Line 0-60m / Min

Width: 1300mm, 1450mm, 1600mm

Speed: 0-100m/min

Maximum support weight: 2 ton.

Maximum paper roll diameter: φ 1200mm.

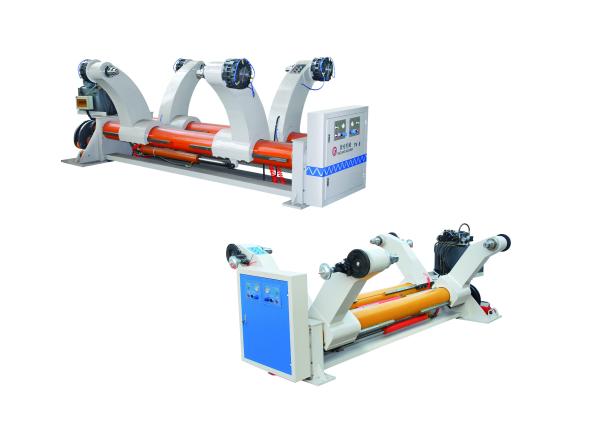

Electric mill roll stand

1) Maximum paper roll diameter: φ 1200mm.

2) Maximum support weight: 2 ton.

3) Adopt single slide symmetrical four arm structure, at the same time support two roll of base paper.

4) Equipped with manual brake disc type, can adjust the tension the base paper.

5) Clamping arm, rotating machinery is equipped with uniform torsion clutch, operate safely and reliably.

Single facer corrugated machine

Specification:

1)Adopt cover type vacuum absorption, prevent high and low flute, improve the quality of corrugated cardboard, automatic cycle for the glue, corrugated pressure, pneumatic operation, glue coating part can be pneumatic glued.

2) Corrugated roller is made by special alloy steel precision grinding, the whole gears are hardening the hardness can reach HRC55-60.

3) The main shaft is lubricated by high temperature lubrication grease, good seal, and reliable lubrication.

4) Economic speed is 45m; effective width is 1650-1850mm

The above models equipped with double circle or ordinary type for the user to choose from

Paper cutter

1)Reasonable mechanical structure, strong rigidity, good stability, strong practical life
2)All operating controls on the same side, easy to operate, photoelectric counting
3)Paper cutting range four knife slitting, crosscutting 400 mm - 2400 mm
4)Paper cutting accuracy: ±2.5 mm

SIZE Speed
m/min		 Effective width mm

Out size

L B H(mm)3

Motor power

(kw)

Weight

(about kg )
DW-1400 10-30 1400 2760×1455×1425 5.5 3300
DW-1600 10-30 1600 2960×1455×1425 5.5 3500
DW-1800 10-30 1800 3160×1455×1425 5.5 3800
