Specifications
Brand Name :
XINTIAN
Model Number :
XT
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 5000
Payment Terms :
L/C, T/T
Supply Ability :
2 Set / Month
Delivery Time :
60 work days
Packaging Details :
Pallet
Description

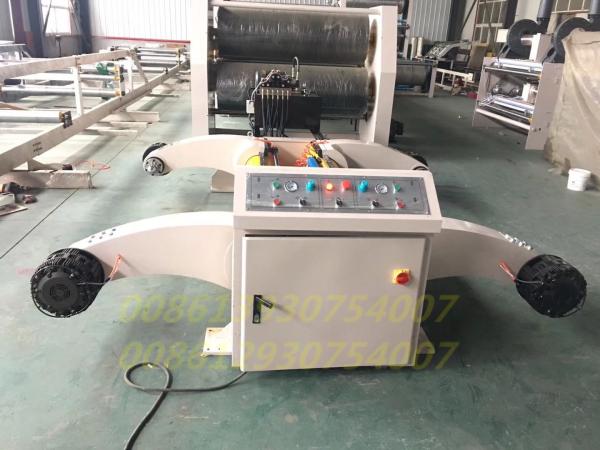

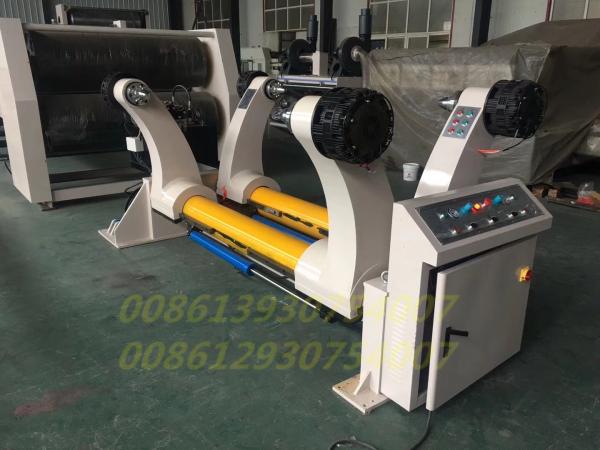

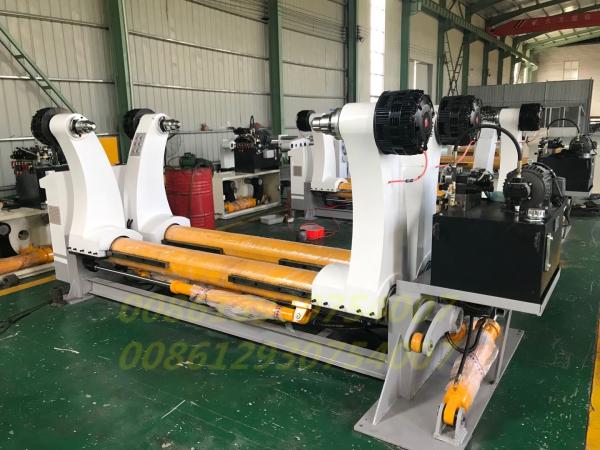

※Structural features:

★Symmetrical structure can also install two bundles of paper at the same time,Paper can be used for non-stop for a job；Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.

★each shaftless mill roll stand is equipped with two pieces of paper guide, two set of paper car；paper guide the use of channel 14 and the guide post weld,paper car adopt 10mmwelded stell,the length of track is 6000mm.

★manual dics brake,add screw following

★electric elements centralized control the electric elements,toothed chuck.

Hydraulic Support Of Corrugated Carton Production LineHydraulic Support Of Corrugated Carton Production LineHydraulic Support Of Corrugated Carton Production Line

※technical parameters:

the range of paper jams Max. Min.
1800mm 600mm
the diameter of paper jams Max. Min.
￠1600mm ￠400mm
Max.unilateral maximum load 2000Kg

Powered motor parameters

 Paper jams motor lift motor
550W×4set 380V 50HZ short(S2)working standard

1.5KW 380V 50HZ

short(S2)working standard

※Mainly purchased parts, raw materials and origin:

Name of main parts Brands or place of orgin material
Main shaft Tiangang production Diameter 242mm
Swing arm Production by own Resin sand gray ironHT200
Wallboard Jigang production Q235AWelding parts
Bearing HRB,ZWZ,LYC
Expend chuck Production by own 3-4 inches shared
Main electrical appliance France Schneider
button CHINT NP2series
Air switch French Schneider
Pneumatic components Japan SMC or taiwan air TAC

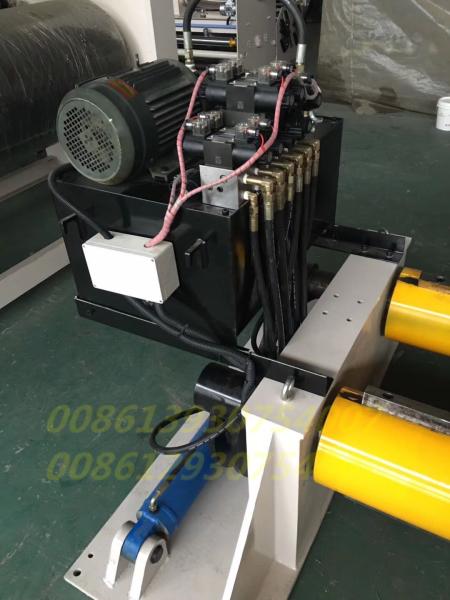

Hydraulic station Shandong zaozhuang
Brake pump Changzhou shinaite

Hydraulic Support Of Corrugated Carton Production LineHydraulic Support Of Corrugated Carton Production Line
